If the indicated status is not easily understood, then contact the Lumenera Support team with a description of the LED behaviour. Check the Table 1 or Table 2 below for the LED appearance and typical meaning.

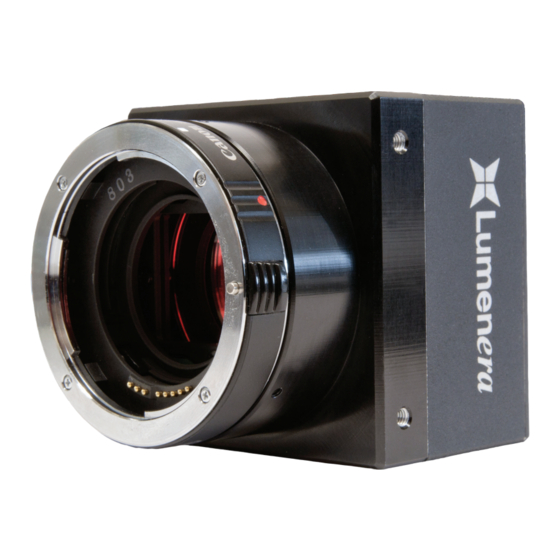

USB Camera Troubleshooting In the event that the Lumenera USB camera is not functional, the most likely reason is that the drivers were not loaded to the camera. This can occur when a camera was connected to the PC prior to the software being installed. When the USB plug-and-play device detection is initiated for any new device, the operating system will effectively quarantine the device if it cannot locate the appropriate driver files.
Several DirectShow (or WDM) related files are installed in the …\SYSTEM folder in the standard Windows folder on your system. All of these files have the .ax extension. These files are stored in the program files folder where the Lumenera software is installed under: 7 CAPELLA COURT, OTTAWA, ON K2E 8A7, CANADA | TEL (613) 736-4077 | FAX (613) 736-4071 | WWW.LUMENERA.COM | INFO@LUMENERA.COM...
The RAW data from Lumenera camera are actual RAW pixel values. Take an 8-bit 16x16 image as an example shown in Figure 24: Monochrome pixel mapping, the raw image data are all 256 pixel values saved row by row.
There is 2 optional connectors that you can get from Lumenera, the first one is La2000PK which is a 5V power adapter and the din to HR1824-ND adapter for external power usage. The second optional connector is the La2000PIOK, which are the combination of a 5V power adapter and the din to Hirose connector with loose wire for easy access to the GPIO signals.
There is an optional dongle that you can get from Lumenera, the first one is La3000PAFL which is the combination of a 12V power adapter and the din to Hirose connector with loose wire for easy access to the GPIO signals. Please refer to section 3.6.6.5 for more information on color coding used to expose IO’s.
2) Data compiled for full frame size at the fastest readout setting. For slowest setting Tready will be longer. For sub windows Tready will be shorter. 3) This delay is the minimal exposure time and may be reduced at the expense of FPN. Contact Lumenera for more information.
