Corsair Commander Mini Quick Start Manual

Introduction
The Corsair Commander Mini replaces manual
controls for fans and lighting with an software
interface, while simultaneously o ering more
advanced control and expansion options than
motherboard BIOS settings. The Corsair Commander
Mini can be used as the hub of your Corsair Link
system allowing connections from other Corsair Link
enabled hardware. This guide will help you install
your Corsair Commander Mini.
Specifications
Package Contents

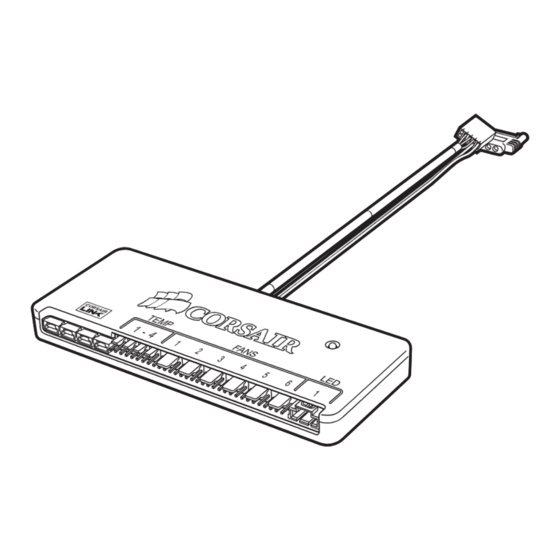

1 x Corsair Commander Mini unit
A
1 x Corsair Link Digital connection cable
B
3 x Fan extension cables
C
D 4 x Thermistor cables
1 x Mounting Tape
Cable Dimensions
Permanently attached cables
1. USB cable (24")
2. SATA power cable (18")
Expansion cables
1. Corsair Link Digital cable (18")
2. Fan extension cables (12")
3. Thermistor cables (24")
Commander Mini Quick Start Guide
A
Unit Dimensions
58.9
mm
13.5
mm
145 mm
corsair.com/link
C
Electrical Specifications
Electrical Specifications
Power Supply Voltage Input 11.4 - 12.6 volts
Maximum Power
per fan header
Maximum power for
RGB LED channel
Maximum power for all 6 fan
headers and RGB LED channel
D
1 amp
2 amps
4 amps
