Summary of Contents for Safire SF-IPCV788ZW-2LPR

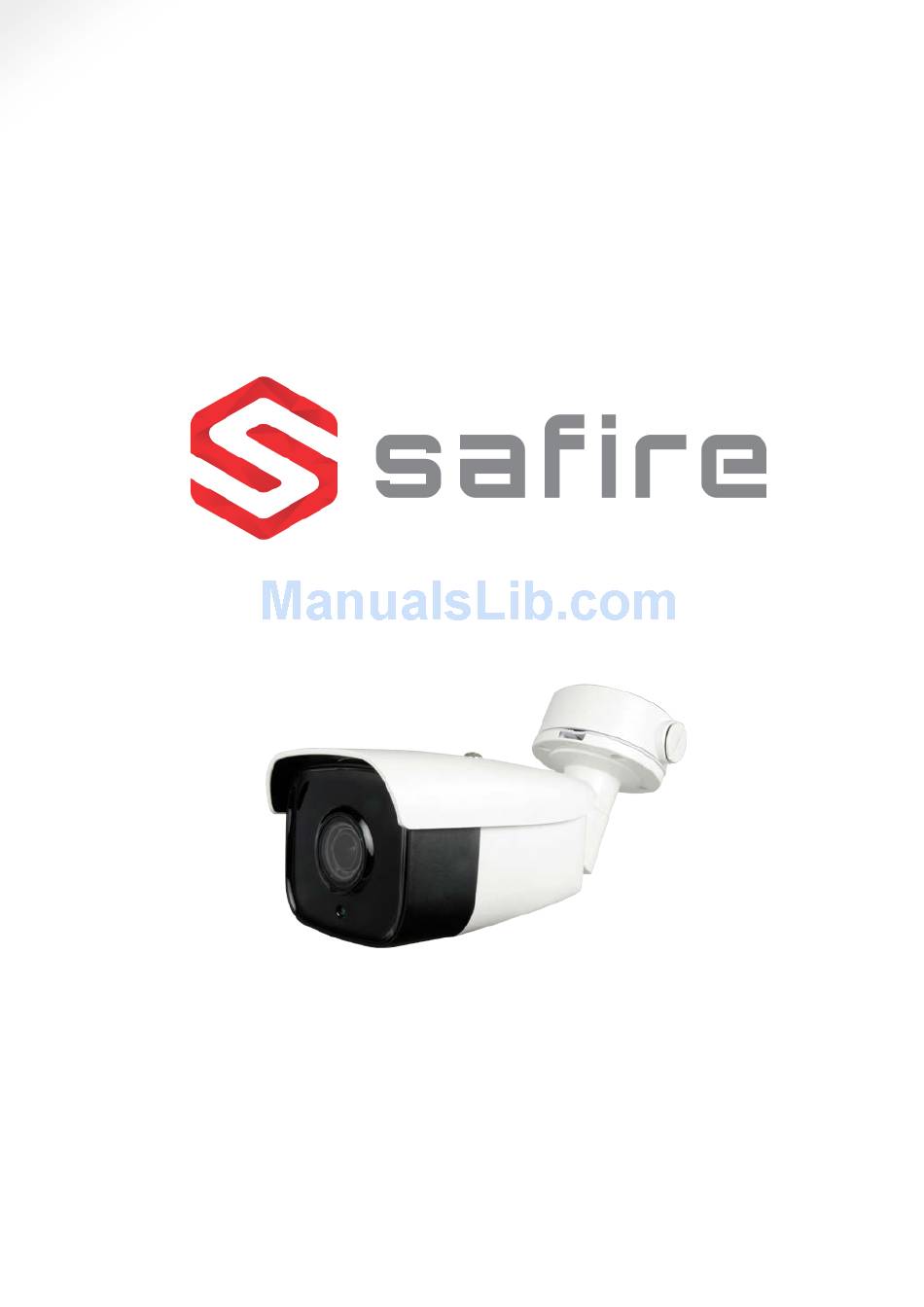

- Page 1 ANPR INSTALATION & CONFIGURATION GUIDE SF-IPCV788ZW-2LPR October 2017 v1.0...
- Page 2 For the correct working of the Automatic Number Plate Reading camera, you must strictly follow the instructions in this manual. Before committing to any installation, it is recommended to review the environmental conditions, as well as the relative size within the image of the number plates to be read.
-
Page 3: Configuration Parameters
The camera is accessed by introducing its IP Address into your web browser once it has been activated using the Safire SADP software (see the General Installation Guide for further details). To configure the Number Plate reading functions, first go to the "Configuration" section of the "Road Traffic"... - Page 4 Once the parameters have been setup, the virtual lanes must be placed in such a way as to coincide with the physical lanes of the road and also cover the area from which the Number Plate information will be obtained, as below: Remember to click on “Save”...
- Page 5 3. NUMBER PLATE MANAGEMENT FROM THE WEB BROWSER Path configuration for data exportation You must configure the path which points to where the exported data from the camera will be stored on your local computer. In the "Configuration" section go to "Local" on the left-side menu and configure the path for data downloaded from the camera: Real-time visualisation of Number Plate reading A quick visualisation of the last Number Plates that have been identified can be made.
- Page 6 occurred, the direction of travel (Forward direction is from bottom to top of the image), the Vehicle List in which the plate appears (if found), and the country of origin. Number plate search and associated data In the "Picture" menu you can download the still images where Number Plates were detected.
- Page 7 Setting up known Vehicle lists Different vehicle lists can be managed in the web interface. This allows, depending on which list the number plate is in, the use of the inbuilt relay to activate a barrier or siren, and to send an email containing the capture.
- Page 8 Known Number Plate lists To use the list of known vehicle registrations, click on "Configuration" then, on the menu to the left, select "Road Traffic" and select "Arming Schedule and Linkage Method" as the area settings. In this section you can schedule when the camera is required to do some type of action like activating an alarm or the relay.
- Page 9 4. ANPR FUNCTIONS IN SAFIRE CONTROL CENTRE Safire Control Centre, basic configuration To view registration data through the Safire Control Centre application, it is recommended you use, or upgrade to, version v2.6.2.7_70 or later. This will ensure the correct operation of the Number Plate reading functions.
- Page 10 Number Plate search and data visualisation Once an IP camera with the ANPR function has been added, proceed to select the "Road Traffic" operation and control module in the central window. In this module, you can select the camera from which the Registration information will be found.
- Page 11 5. ANPR FUNCTIONS WITH A SAFIRE VIDEORECORDER Registration information, captured by an ANPR camera, is also accessible from a Safire video recorder. It is necessary, for this to function correctly to have the camera connected to an NVR or a Hybrid HTVR analogue recorder which is also able to display IP channels.
