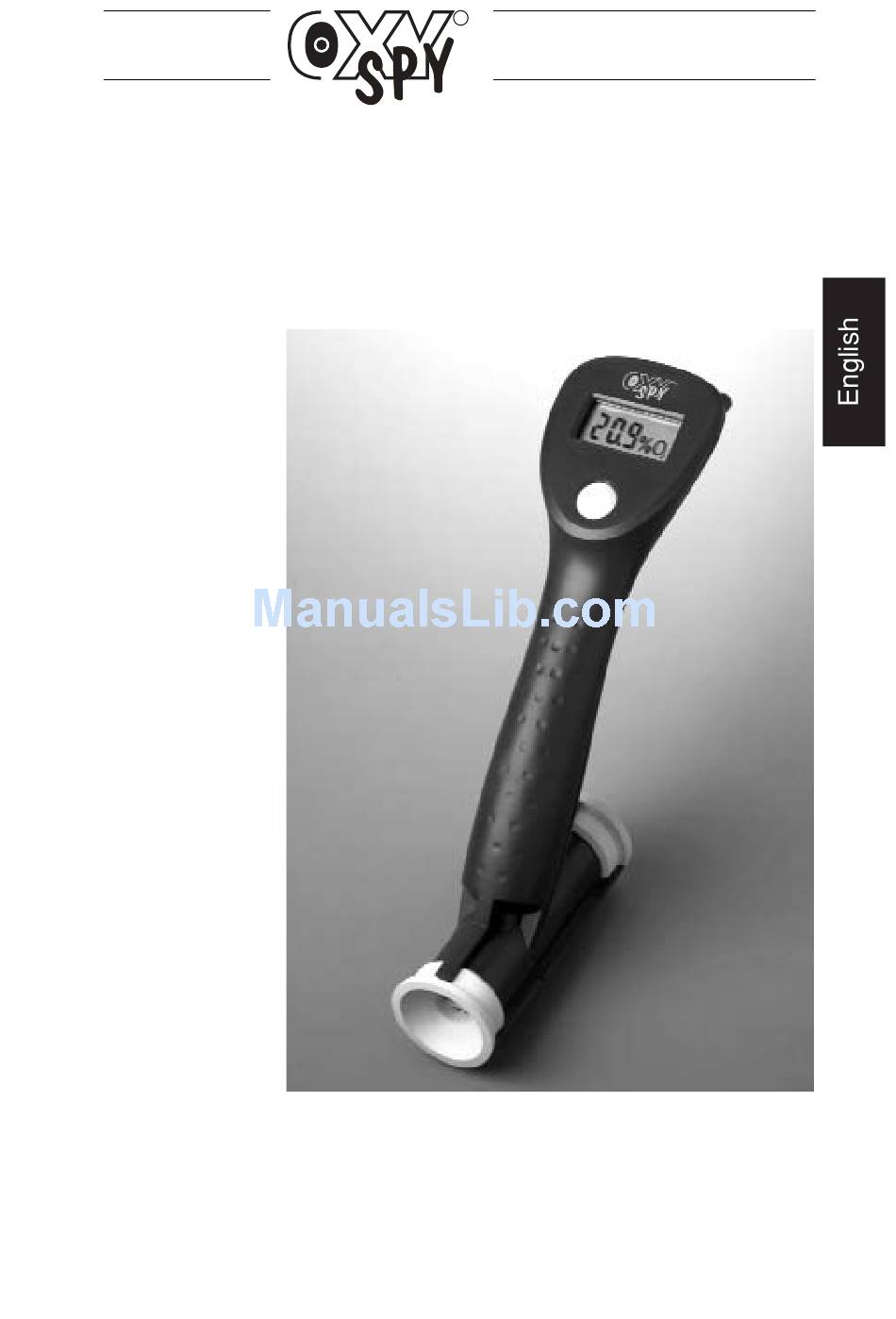

Page 1 Operating Manual English...
Page 2 This operating manual makes use of the fol- lowing icons to indicate especially important comments: Remarks Information and tips which are important for opti- mal use of the OxySpy. Attention! Indicates information about details which are important to prevent a risky situation. Indicates a potentially hazardous situation...
Page 3: Table Of Contents
List of chapters Introduction Warnings and Safety Considerations OxySpy Parts List The OxySpy Set Up Procedure / Maintenance Before first use Switching the OxySpy on and off Opening the OxySpy Fitting the O sensor Fitting the battery Calibration Measurement Service Indications / Trouble Shooting...
Page 4: Introduction
O percentage does not change during the calibration. If the OxySpy is not used, it switches off auto- matically. Thanks to its ergonomical design and its single button operation, it can be operated by one hand.
Page 5: Warnings And Safety Considerations
• Check the OxySpy in air before each series of measurements. If necessary, calibrate the OxySpy. See page 5. • Using pure oxygen or oxygen enriched gas...
Page 6: Oxyspy Parts List
OxySpy Parts List / The OxySpy / Set Up 1 OxySpy with case OxySpy 1 OxySpy Operating Manual Parts List 1 Battery CR 2430 Sensor in a sealed package 1 Philips-type Screwdriver OxySpy Display Push button Handgrip Gas Input /Exit openings...
Page 7: Switching The Oxyspy On And Off
The OxySpy switches off automatically, at the latest 30 minutes after switching on. The unit cannot be switched off manually. • Open the OxySpy only in a clean and dry area Opening away from water, dust and other contaminants. the Oxy- It prevents soiling and damage to the electro- nics and the mounting ring.
Page 8: Fitting The O Sensor
"no" and the O sensor symbol. In this situation the OxySpy switches off after 5 minutes automatically. 3. Carefully pull the plug out of the socket. The...
Page 9 8. Locate the rubber ring into the housing so Opening that its opening does not close the gas flow to the O sensor. 9. Calibrate the OxySpy or fit a new battery. See "Calibration" or "Fitting the Battery" on page 11 or page 10, respectively.
Page 10: Fitting The Battery
Take care that the two parts fit together well and carefully tighten the 7 screws. 6. Calibrate the OxySpy or mount a new sensor. See "Calibration" or "Fitting the O sensor" on page 11 or page 8, respectively.
Page 11: Calibration
(used for the calibration) must not change during the cali- bration. The duration of an OxySpy calibration is a maxi- mum of 30 seconds. The calibration can be interrupted at any time by pressing the button.
Page 12 Calibration Calibrating 1. Before the calibration of the OxySpy in air (20.9%O ) it has to be moved slowly back and forth, through the air, for about 1 minute to flush the O sensor. Without this flushing, the calibra- tion may not be successfully completed. Do not...
Page 13 "- - -", for a short time. The OxySpy will then change automatically into the measurement mode. No new calibration values have been entered and the indicated O % values are still based on the old calibration data.
Page 14: Measurement
1 minute in the air). If the displayed value is not between 20.7 and 21.1% O , the OxySpy has to be calibrated. • The OxySpy must have a steady stream of the gas until the displayed O % value has stabili- zed.
Page 15 OxySpy. See "Calibration" page 11. 6. Record the results of your measurement. 7. After quickly pressing the push button, the OxySpy will calculate the MOD based on the measured O values and the chosen ppO limit.
Page 16: Service Indications / Trouble Shooting
Service Indications / Trouble Shooting The CAL If the CAL symbol appears, the OxySpy has to be calibrated. The displayed O % value could be symbol is wrong. displayed Possible reasons: How to solve: New battery has Calibrate the OxySpy.
Page 17: O 2 Sensor Symbol Is Displayed
(max. 50 °C / 122 °F). Take the OxySpy to the Electronic defect. store that it was purcha- sed from. The O sensors are available at OxySpy sales points. There is more information, regarding the sensor, on page 20.
Page 18: Battery Symbol Is Displayed
Service Indications / Trouble Shooting At a low battery voltage, the OxySpy shows the battery symbol. Battery If the battery symbol appears, the indica- Symbol is ted O % value could be wrong. displayed Possible reasons: How to solve: Extremely low...
Page 19: Sensor
Disconnecting the O Sensor from the socket does not extend it's life. On page 20 you will find more information about storing the OxySpy. After opening the airtight package the O sensor requires 30 minutes to stabilize in air. Calibration should be made only after this "warm-up"...
Page 20: Maintenance And Storage
• Ideal storage temperature: 5 °C up to +15 °C (41 °F up to 59 °F) • Do not leave the OxySpy in an oxygen enriched atmosphere except when it is necessary. • Disconnecting the O Sensor from the socket does not extent its life.
Page 21: Limited Warranty
This includes the repair or replacement of the faul- ty part or the replacement of the entire OxySpy. The O sensor, the battery and the rubber rings are excluded from the warranty. The manufacturer...
Page 22: Notes
Notes...
Page 23: Fcc / Copyright © / Waste Disposal
(print, photocopy, electronic or any other process) without prior, written permission from Dynatron AG. Waste Protect the environment! When disposing of this OxySpy, do so in an disposal environmentally friendly way. Return old products to an appropriate collection point according (EU Directive 2002/96/EC).
Page 24: Warranty Paper
Warranty paper Stamp of the dealer: Date of Sale: Serial No. of your OxySpy: www.oxyspy.biz Operating Manual OxySpy / OS-M-GB-B Rev.A Printed in Switzerland 09-2006...
