SD Card Adapter Kit (#32313)

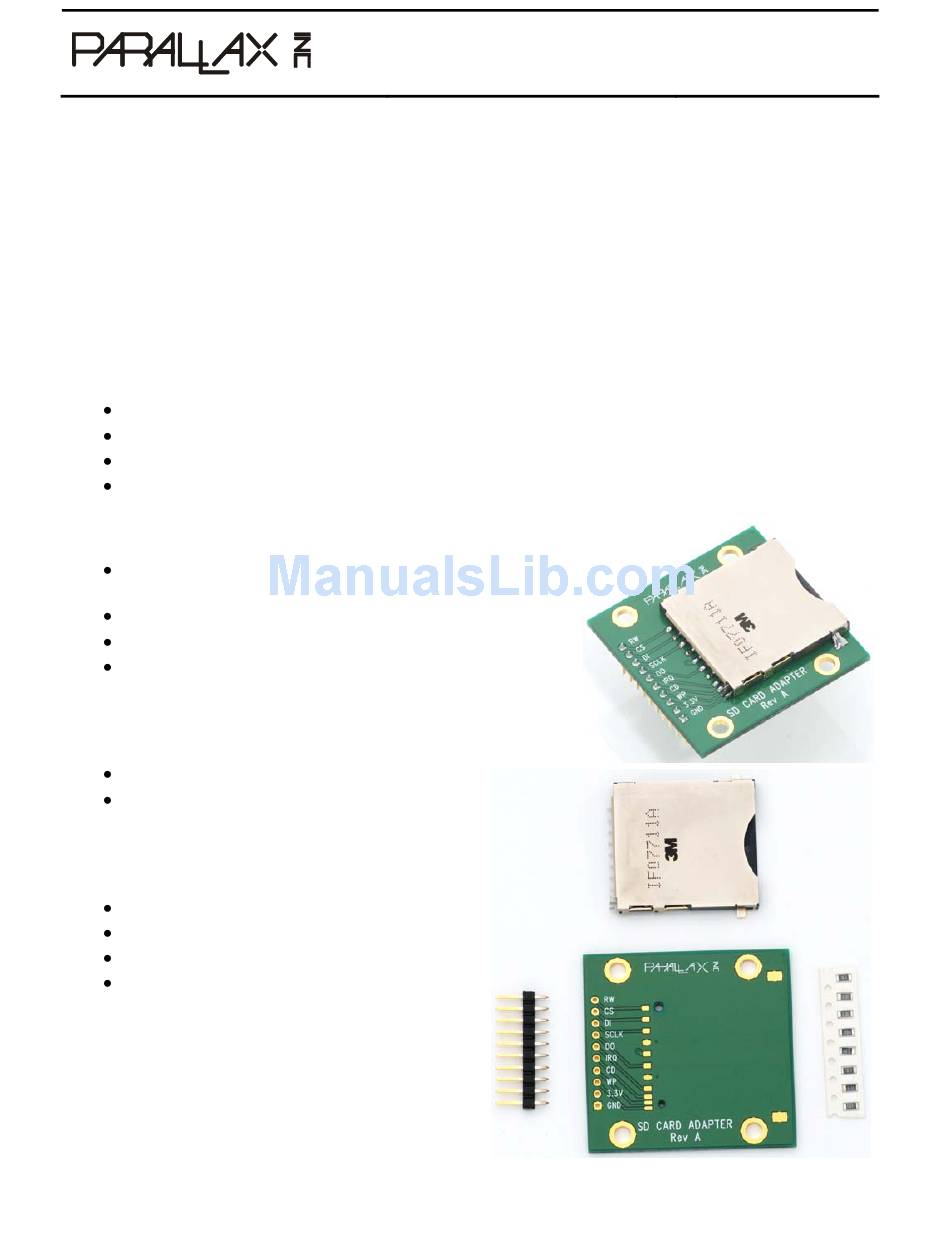

The SD Card Adapter Kit allows you to easily connect an SD Flash Memory Card to your Propeller
or other microcontroller. This adapter contains the components required for an SPI interface between
the host microcontroller and the SD memory card. The SD Card Adapter Kit includes a card detect switch
which allows you to detect when a memory card is physically present in the socket. It also includes a
switch to determine the read/write status of the inserted card, preventing accidental loss of data.
Mounting holes are available so you can install the adapter in your application.
Features
Contains all support components necessary for interfacing with a microcontroller
Includes mounting holes for end use in application
Card detect switch allows detection of memory card insertion
SIP header makes breadboard use easy
Key Specifications
Power requirements: 3.3V (current determined by card
used; plus 0.5 mA when card is inserted)
Communication: SPI / SDIO
Operating temperature: 32 to 158 °F (0 to 70 °C)
Dimensions (assembled): 1.70" L x 1.74" W x 0.52" H
(43.2 mm x 44.2 mm x 13.2 mm)
Application Ideas
Add mass storage to an existing project
Datalogger

Kit Contents

SD Card Adapter PCB
SD Card Socket
(8) 10K resistors (1206 SMD package)
10-pin SIP header
