Shunt Measurement (8081)

Shunt Measurement Configuration
The precision shunt measurement function allows accurate measurement of current shunts by
monitoring the current supplied to the shunt and voltage measured across the shunt. By monitoring
both the current and voltage the 8000 Series can provide an accurate measurement of the current
shunt connected.

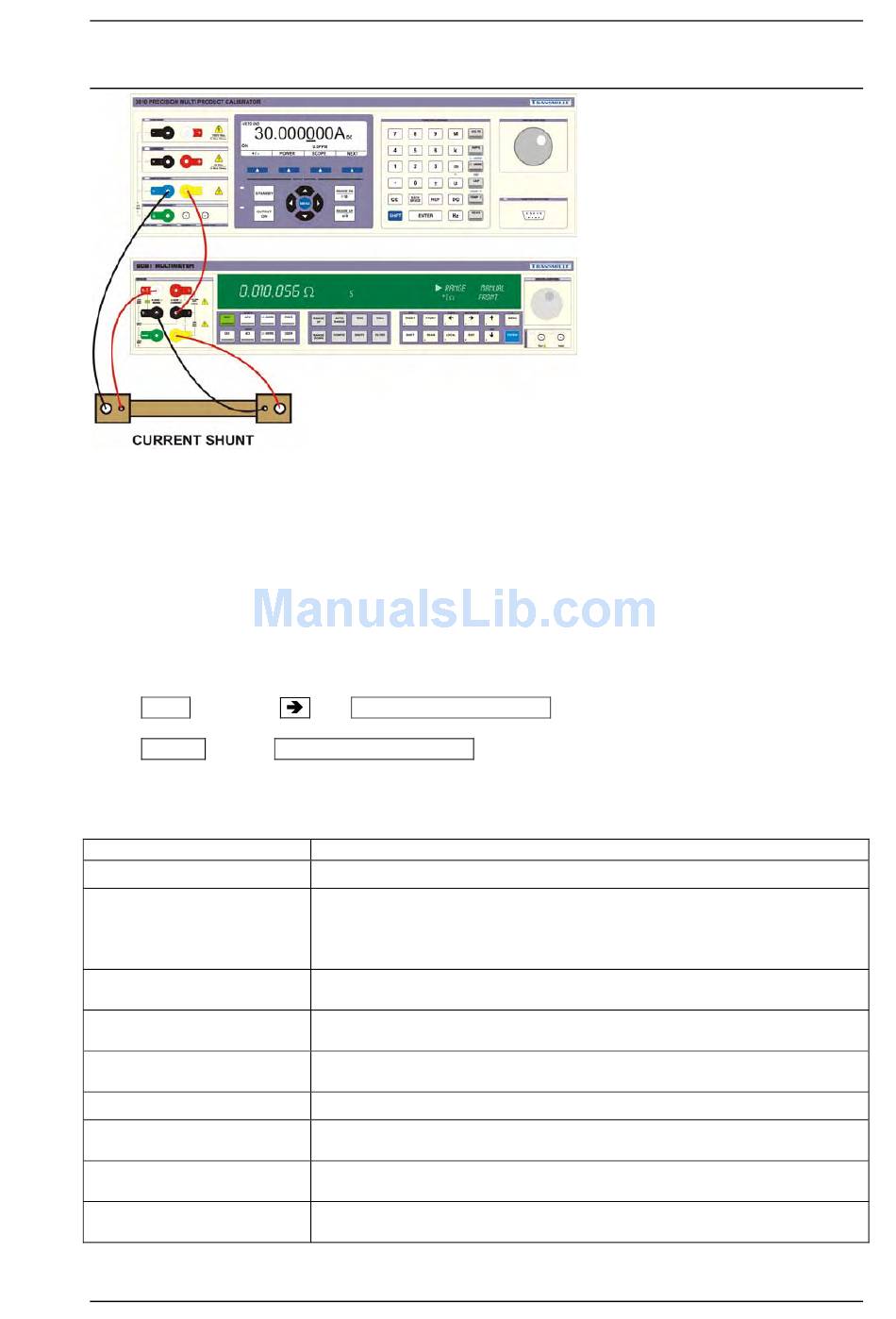

The diagram above shows the connection configuration required, using a 3000 Series to provide the
30A current source and both the current and voltage measured by the 8000 Series. When SHUNT
MEASUREMENT mode is selected, the 8000 Series will automatically switch between voltage and
current measurement terminals in a continuous cycle until shunt mode is exited.
Press USER then press
Press ENTER to select SHUNT MEASUREMENT
The secondary display can be used to display the separate Voltage and Current readings by using
the menu dial to scroll to this display.
Additional Settings
DIGITS
FILTER TIME
ANALOGUE FILTER
INPUT TERMINALS
READING MIN / MAX
TRIGGER
VOLTAGE / CURRENT
DISPLAY
GUARD TO LOW
INTERNAL
TEMPERATURE
TRANSMILLE LTD.
until SHUNT MEASUREMENT is displayed
Set measurement resolution
Dynamic Mode for Automatic filter setting
based on measurement stability
Set ANALOGUE FILTER mode :
Set INPUT TERMINALS to use :
Display READING MIN / MAX measurement data
for the selected function / range
Displays the measured VOLTAGE and CURRENT separately as
well as the calculated WATTS on the main display
Set GUARD TO LOW mode :
Displays the internal temperature
Description
Set FILTER TIME :
250ms to 64s
ON / OFF
FRONT / REAR
AUTO / MANUAL
FLOATING / SIGNAL LOW
