Thank you for choosing the LFO-expander to expand the possibilities of your
synthesizer.
Connections
All connections are made on the right side. For your convenience, the main out is
presented as a standard jack (6,3mm) and minijack (3,5 mm) output. Please use
only one of them.

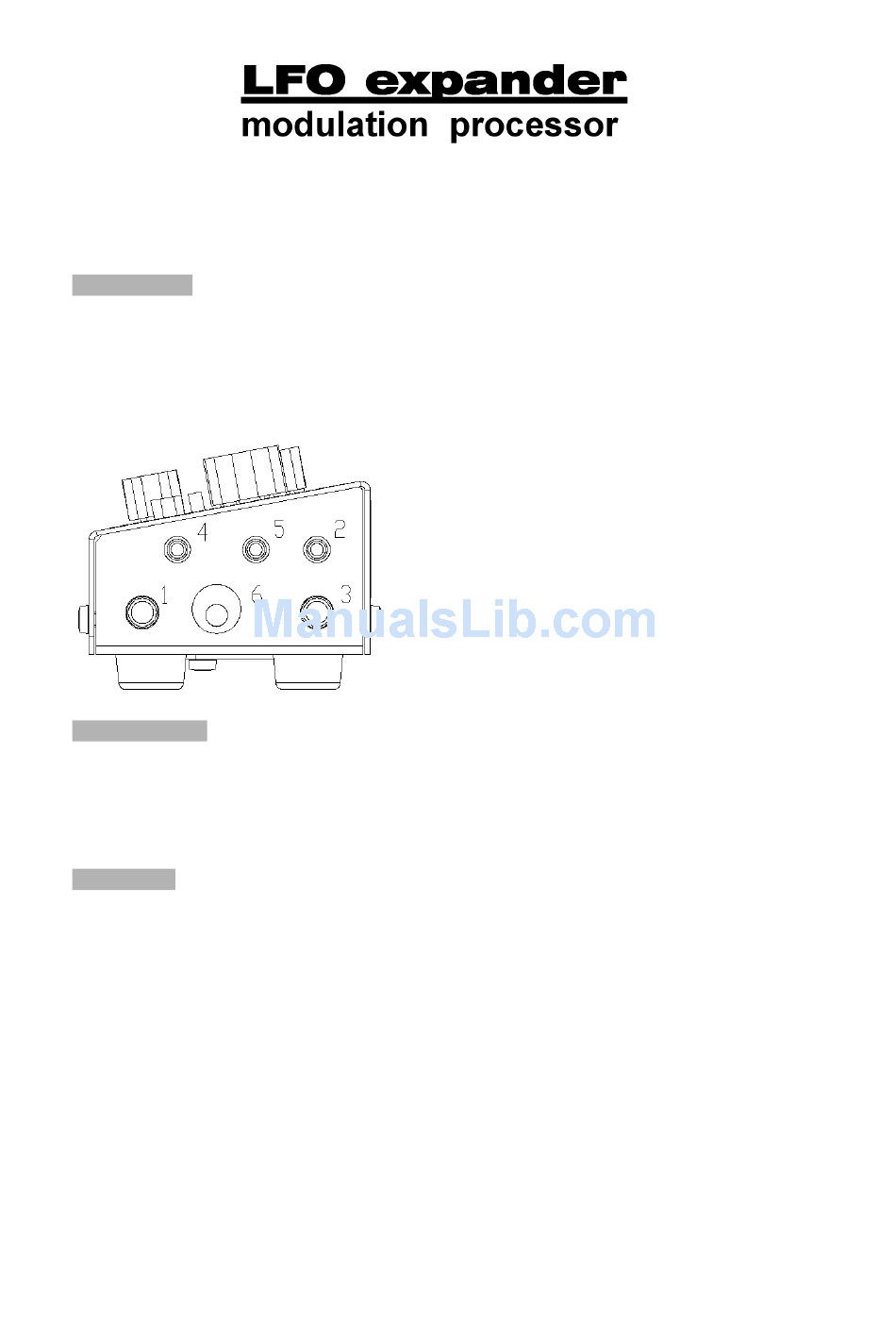

Picture 1: Right-side view
Power Supply
The LFO-expander runs on 2 9V batteries (not included) or on an external DC-power
transformer (not included). When using a DC transformer, the batteries will be
automatically disconnected. Use a 12V transformer, 250mA or more. GND on the
outside, +12V on the center. Inverting the power will cause no harm. Connector
type: ø6,3mm x ø2,1mm
Foot pedal
The foot pedal can be an active pedal (containing a battery itself) with TS-jack or the
pedal can be a passive pedal (adjustable resistor) with TRS-jack. We recommend a
moog EP2 expression pedal or any pedal with the same specifications. A resistance of
50 k-Ohms works very well for the LFO-expander.
1
Pedal-in or CV-in :jack
6,3mm (TS or TRS)
2
Main out: mini-jack (TS)
3
Main out: jack (TS)
4
CV-in: mini-jack (TS)
5
CV-out: mini-jack (TS)
6
DC input (12V DC)
Note:
TS
= Tip – Sleeve
TRS
= Tip – Ring - Sleeve
CV
= Control Voltage
rev 1, 08-2010
