Quanum HB5808 Operation Manual

Operation Manual

Type ： HB5808

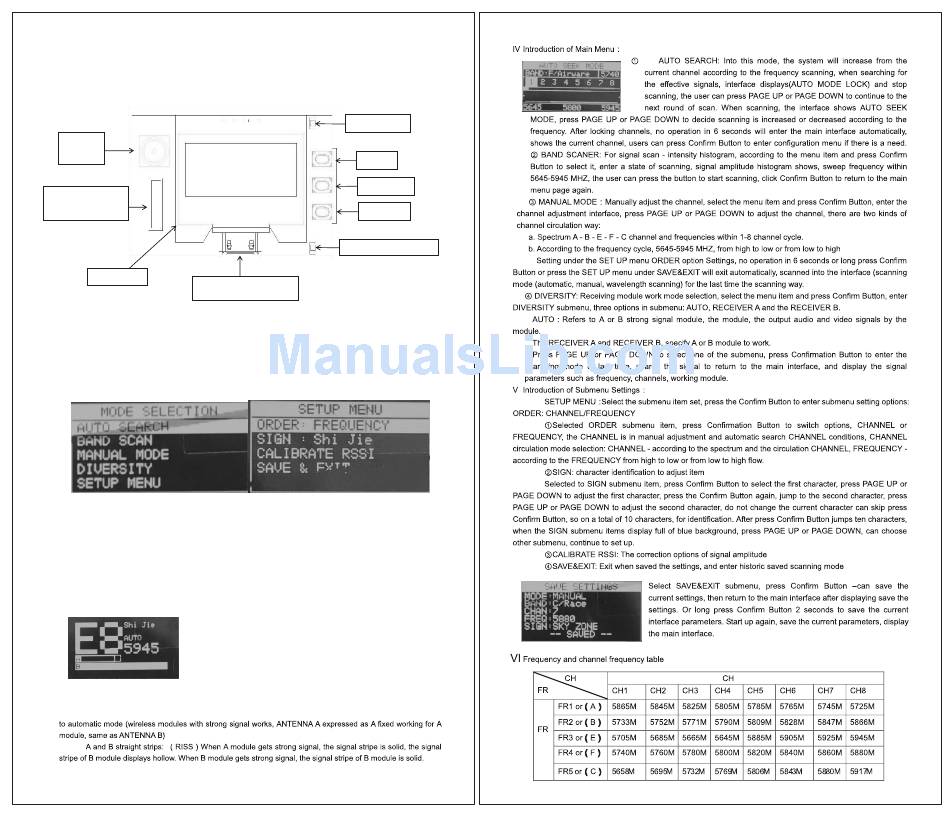

I Product Working Scheme
Antenna
Connector
B Receiver Module
Ribbon Wire Connector
OLCD Display
USB Power Supply/Application
Upgrade Connector
Ⅱ

①Instruction of Buttons:

1. The middle button-Confirm Button(Long press for 2 seconds to save the current setting )
2. Page Up-Select the menu
3. Page Down-Select the menu
②After the product is powered on ,please correct the receiving signal amplitude of A and B modules. As
follows:
Press Confirm Button one time (needs to press 2 times when display locking interface), to select the main page.
Press Page Down to select the fifth selection SETUP MENU to set the menu, press Confirm Button again to enter
the submenu SETUP MENU, press PAGE DOWN to select the third one: CALIBRATE RSSI. Correct the signal
amplitude of RISS, press Confirm Button to enter automatically check status. In the process of checking, press
Page Up to correct again. After correcting, the current channel will be set to enter the CALIBRATE RSSI mode.
(Attention: It's better to open 5.8G AV transmission system when checking.)
Ⅲ
Introduction of Main Interface：
E 8 ： Channel E 8CH
5945 ：Channel frequency instructions: 5645-5945MHZ
<Shi Jie> : (Characters｜Symbols）Logo, can change in the menu
settings.
AUTO: Automatic mode, channel locked, no operation in 6 seconds will enter the main interface
automatically, preview interface displays the current band, frequency, user name and diversity state. Auto shows
Operating Light
Page Up
Confirm Button
Page Down
A Receiver Module Indicator
Channels Included：A-B-E-F-C
channel has 1-8 channels.
Each
