Cap-Pad; Holder-Pad - Samsung ML-4600/XET Service Manual

Disassembly and Reassembly

3-13 Cap-pad

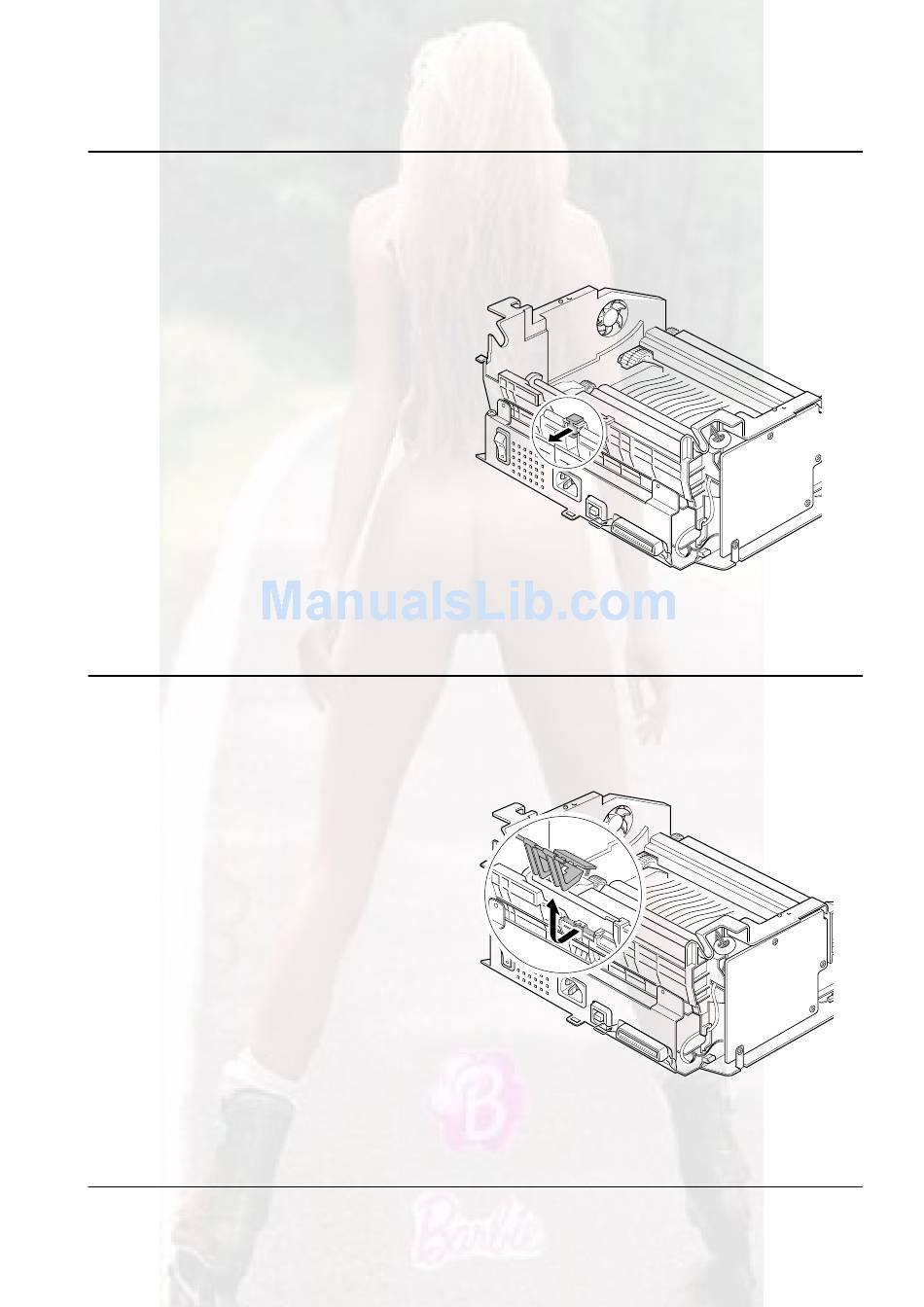

1. Before you remove the cap-pad, you should
remove:
– All covers (see page 3-2, 3-4, 3-5)
– LSU (see page 3-6)
– Plate in the pick-up roller ass'y (see page 3-8)
– Knock-up ass'y (see page 3-10)
2. Take out the cap-pad from the main frame.

3-14 Holder-pad

1. Before you remove the holder-pad, you should
remove:
– All covers (see page 3-2, 3-4, 3-5)
– LSU (see page 3-6)
– Plate in the pick-up roller ass'y (see page 3-8)
– Knock-up ass'y (see page 3-10)
2. Remove the holder-pad from the main frame.
3-10 Samsung Electronics
