3580 Willow Lane, Westlake Village, CA 91361-4921 • (805) 494-0622 • Fax: (805) 494-8861
www.sdcsecurity.com • E-mail: service@sdcsecurity.com
Electrical Specifications
Contact Type: SPDT (Form C)
Contact Ratings: 30VDC @ 5 AMPS
(Resistive)
P:\INSTALLATION INST\Push and Key Switch\INST- 422.vsd

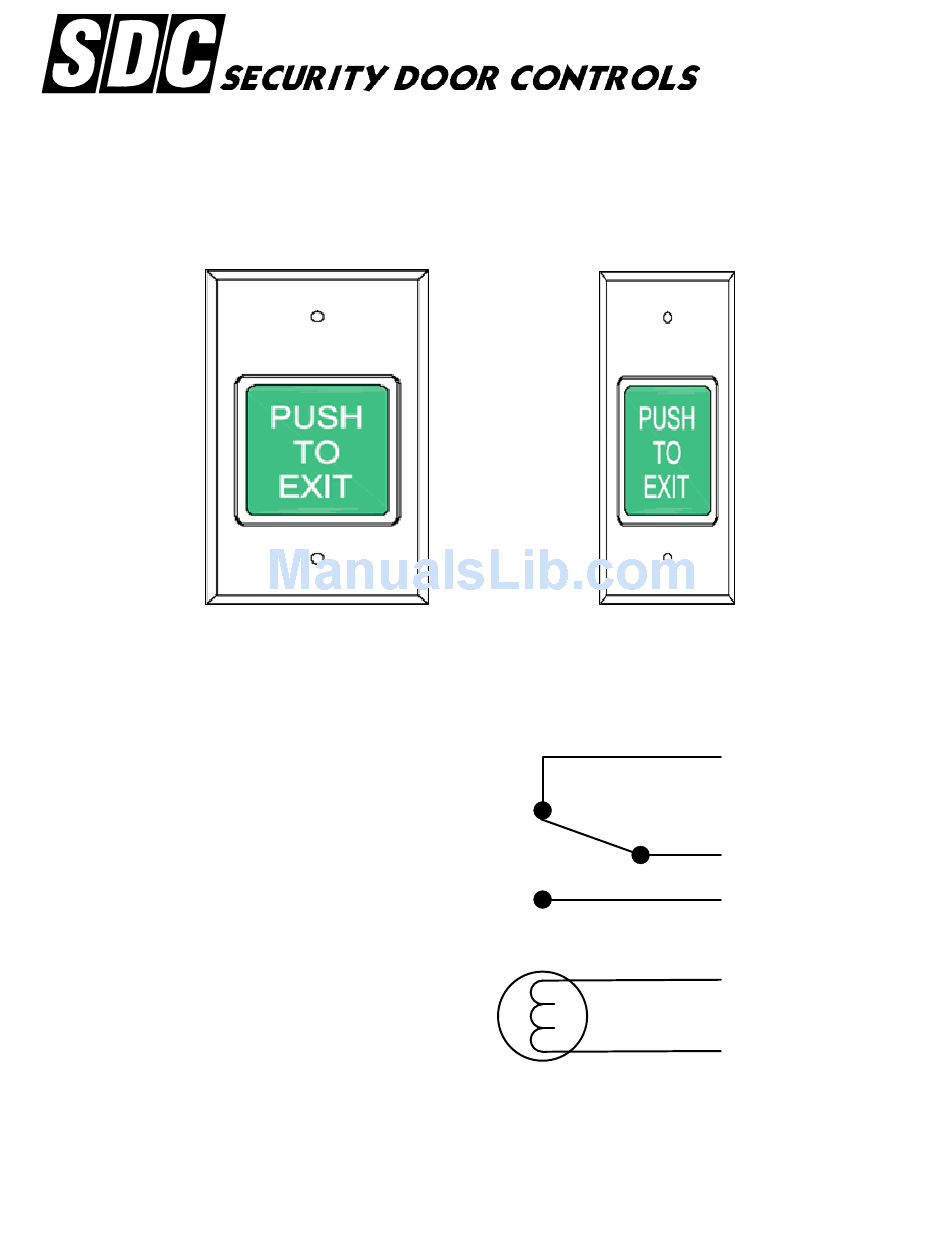

INSTALLATION INSTRUCTIONS
MODEL 422 PUSH SWITCH
422GPE
0305
Page 1
422NGPE
ORG (N/C)
WHT (COM)
YEL (N/O)
RED
LAMP
28VDC
MAX
RED
Any suggestions or comments to this instruction or
product are welcome. Please contact us through
our website or email engineer@sdcsecurity.com
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for SDC 422G
Summary of Contents for SDC 422G
-
Page 1: Electrical Specifications
3580 Willow Lane, Westlake Village, CA 91361-4921 • (805) 494-0622 • Fax: (805) 494-8861 www.sdcsecurity.com • E-mail: service@sdcsecurity.com INSTALLATION INSTRUCTIONS MODEL 422 PUSH SWITCH 422GPE 422NGPE ORG (N/C) Electrical Specifications Contact Type: SPDT (Form C) Contact Ratings: 30VDC @ 5 AMPS (Resistive) WHT (COM) YEL (N/O) -
Page 2: Installation Instructions
SECURITY DOOR CONTROLS 3580 Willow Lane, Westlake Village, CA 91361-4921 • (805) 494-0622 • Fax: (805) 494-8861 www.sdcsecurity.com • E-mail: service@sdcsecurity.com INSTALLATION INSTRUCTIONS MODEL 413NU & 423U PUSH SWITCH 1-60 SECOND ADJUSTABLE TIME DELAY When the button is pressed, the lock releases for 1-60 seconds. If pressed again during the lock release period, the unit will “Retrigger”... - Page 3 SECURITY DOOR CONTROLS 3580 Willow Lane, Westlake Village, CA 91361-4921 • (805) 494-0622 • Fax: (805) 494-8861 www.sdcsecurity.com • E-mail: service@sdcsecurity.com INSTALLATION INSTRUCTIONS 414 & 424 PUSH SWITCH 424U 414NU Electrical Specifications Contact Type: DPDT (Form C) Contact Ratings: 30VDC @ 5 AMPS (Resistive) (COM) (COM)
- Page 4 SECURITY DOOR CONTROLS 3580 Willow Lane, Westlake Village, CA 91361-4921 • (805) 494-0622 • Fax: (805) 494-8861 www.sdcsecurity.com • E-mail: service@sdcsecurity.com INSTALLATION INSTRUCTIONS MODEL 415N & 425 ON/OFF PUSH SWITCH 415N Electrical Specifications Contact Type: DPDT (Form C) ORG (N/C) Contact Ratings: 30VDC @ 5 AMPS (Resistive) WHT (COM)
-
Page 5: Specifications
3580 Willow Lane, Westlake Village, CA 91361-4921 • (805) 494-0622 • Fax: (805) 494-8861 www.sdcsecurity.com • E-mail: service@sdcsecurity.com INSTALLATION INSTRUCTIONS MODEL 460 REQUEST – TO – EXIT - SWITCH Adjustable Timer 1 – 40 Seconds 12-24 VDC NO 1 COM1 COM2 NC 2 With the jumpers...
