Summary of Contents for Rhyas JSM4004

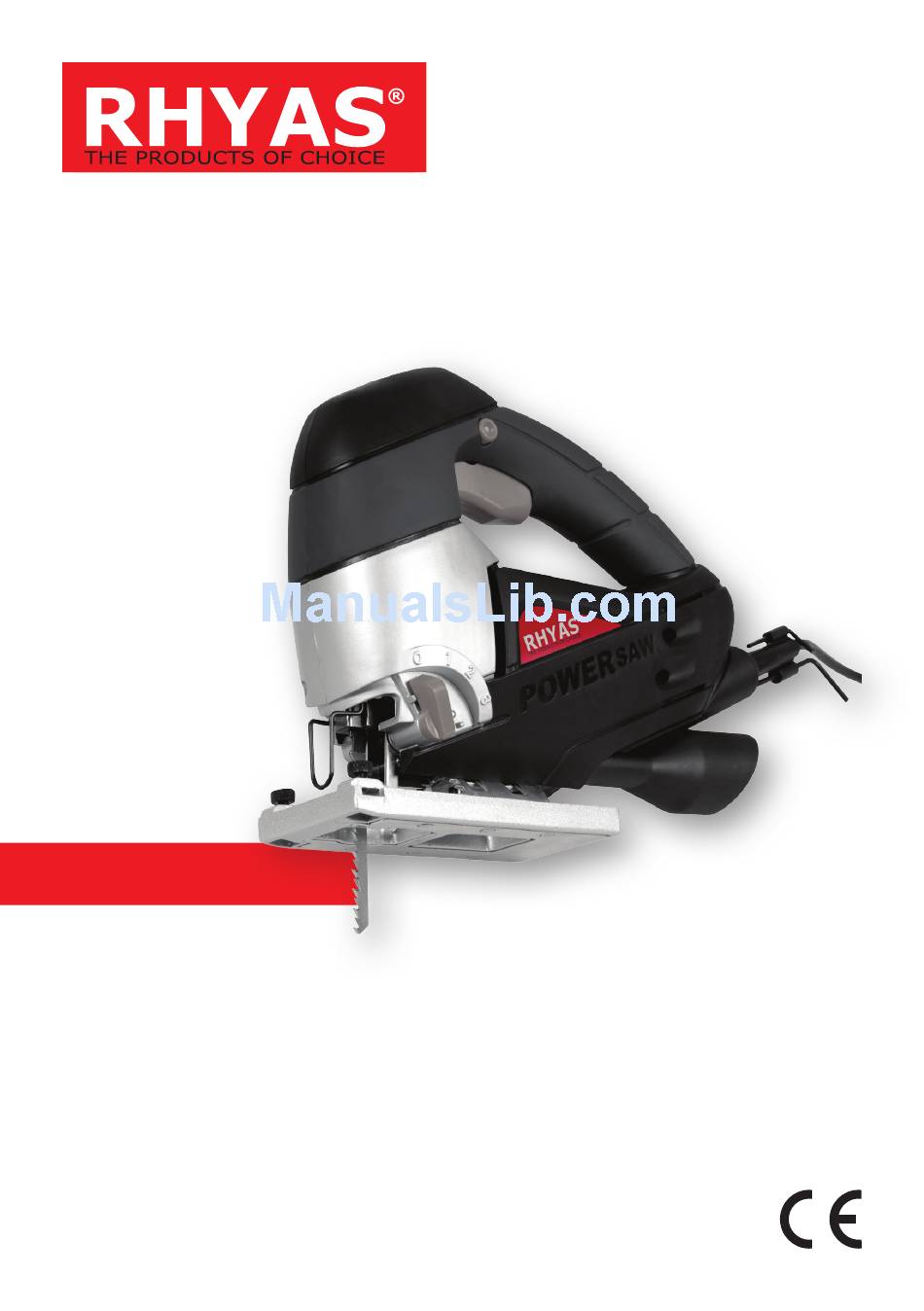

- Page 1 PENDULUM ACTION JIGSAW JSM4004 Manual ORIGINAL INSTRUCTIONS...
-
Page 5: Safety Warnings
PENDULUM ACTION JIGSAW Double insulated. Thank you for buying this Rhyas product. All our products are manufactured to the highest standards of performance and safety. As part Do not dispose of the product in of our brand commitment we provide excellent unsuitable containers. -
Page 6: Electrical Safety
Kickback Technical data Kickback is the upward and backward Mains voltage 230 V~ movement of the saw blade when the saw blade Mains frequency 50 Hz unexpectedly touches an object. Power input 710 W Securely hold the machine during use. No-load speed 800 - 3,000 min Keep your attention focused on the operation. Max. sawing depth (wood) 110 mm Max. sawing stroke 20 mm Kickback is usually caused by: Mitre angle 45° unintentionally touching hard objects or Number of pendulum positions materials with the rotating saw blade;... - Page 7 4. Pendulum action switch Mounting 5. Guard ● S lacken the locking bolts (8). 6. Saw blade holder ● I nsert the parallel guide (16) into the saw shoe 7. Saw shoe (7). 8. Locking bolt for parallel guide ● S et the parallel guide (16) to the required 9. Dust extraction connection position. 10. G rip ● T ighten the locking bolts (8). 11. Allen key 12. A llen key holder Removing ● S lacken the locking bolts (8). Assembly ● R emove the parallel guide (16) from the saw shoe (7).
-
Page 8: Cleaning And Maintenance
Cleaning and maintenance Using the pendulum action switch (fig. A) The pendulum action switch is used to set the way in which the teeth of the saw blade grip the Before cleaning and maintenance, material. The pendulum action switch can be set always switch off the machine and to 4 positions. -
Page 10: Spare Parts List
Spare parts list Position Description 403811 Pendulum switch 403812 Roller complete 3 - 8, 10, 20, 21 403813 Carbon brush 403814 Stator 800607 Bearing 607 ZZ 403815 Rotor 800629 Bearing 629 ZZ 403816 Big gear 403817 Blade clamp 403818 Speed control 403819 Switch 403820 Dust collector adapter 403821 Guide... -
Page 12: General Safety Instructions
General Safety InStrUCtIOnS c. Avoid accidental starting. Ensure the switch is in the off position before plugging in. Carrying power tools with Warning! your finger on the switch or plugging in power tools that Read all instructions. Failure to follow all instruc tions listed have the switch on invites accidents. -
Page 13: Declaration Of Conformity
DeClaratIOn Of COnfOrMIty JSM4004 (en) We declare under our sole responsibility that this product is in conformity with directive 2011/65/EU of the European parliament and of the council of 9 June on the restriction of the use of certain... - Page 14 1406-05...
