ELINT LABZ ESP-12 PLUG Product Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
Product Manual
ESP-12 Plug





Updated on: ​ 2 7th November 2017





Advertisement

loading
Need help?

Need help?

Do you have a question about the ESP-12 PLUG and is the answer not in the manual?

Questions and answers

Summary of Contents for ELINT LABZ ESP-12 PLUG

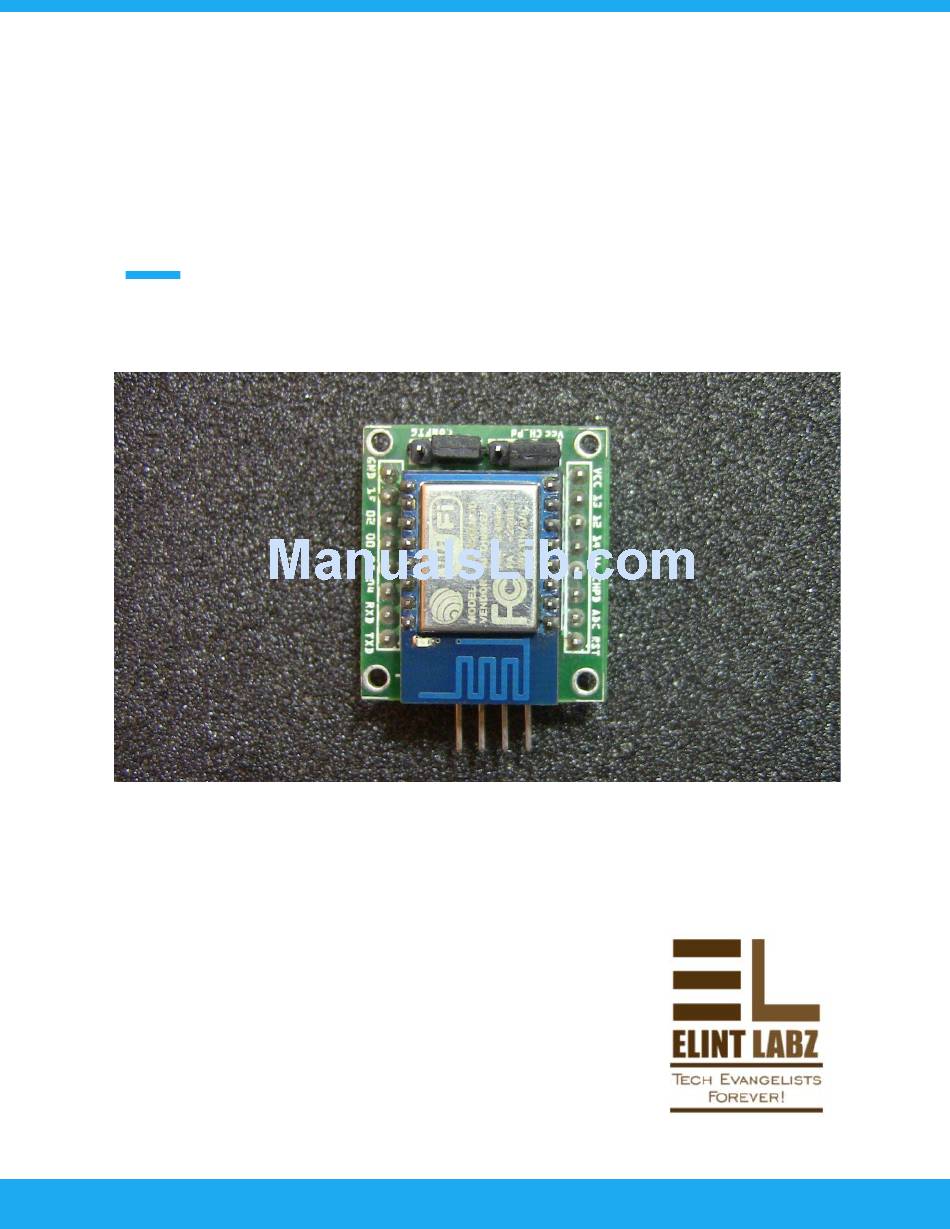

  • Page 1   Product Manual ESP-12 Plug                  Updated on: ​ 2 7th November 2017  ...
  • Page 2 Product manual : ESP-12 Plug Index    About Elint Labz 2  Introduction 3  Specification 3  Operating voltage: 5V 3  Variants 3  Supported cables: 3  Details 3                      Elint Labz (​ w ww.elintlabz.in​...
  • Page 3             Ajaramara Dynamics Pvt. Ltd. under Companies Act of 2013.    As in the name company (Elint Labz) – Electronic intelligence (​ E LINT ​ ) is intelligence                ...

  • Page 4: Specification

                              friendly. Hence Elint Labz has designed a board friendly breakout for connecting the wifi                          ...
  • Page 5 Product manual : ESP-12 Plug         The pins of ESP8266 can be directly connected to the breakout board .It consists of 16 pins.                                ...
  • Page 6 Product manual : ESP-12 Plug                 The GPIO pins are 0, 2, 4, 5, 12, 13, 14, 15 and 16. The breakout board also consists of 3 male                ...
  • Page 7 Product manual : ESP-12 Plug       The breakout board can be easily mounted on a breadboard or any other controller.          Elint Labz (​ w ww.elintlabz.in​ )   Page 6 of 11...
  • Page 8 Product manual : ESP-12 Plug     The serial communication port consists of 4 pins they are Tx pin, Rx pin, vcc pin and gnd pin.         The configuration port consists of the GPIO pin zero .If a high signal is given to the pin then  ...
  • Page 9 Product manual : ESP-12 Plug       If the signal given is low then the chip will be in running mode.          The enable port consists of CH_PD pin which is used to enable the chip . If the signal given  ...
  • Page 10 Product manual : ESP-12 Plug       To disable the chip a low signal should be given to the in pin CH_PD.          Elint Labz (​ w ww.elintlabz.in​ )   Page 9 of 11...
  • Page 11 Product manual : ESP-12 Plug How to interface?     Use a 4-4 A cable to connect the wifi breakout to the pluguino board .  Connect one end of the cable to wifi breakout and the other end of the cable to the serial  ...
  • Page 12 Product manual : ESP-12 Plug Elint Labz (​ w ww.elintlabz.in​ )   Page 11 of 11...
  • Page 13 Product manual : ESP-12 Plug   The below given picture shows the interfacing of Wifi breakout with the USB to Serial                               Converter.    Elint Labz (​...
