Modcan Euro Quad LFO User Manual

WAVE: A possible 16 choices for waves.
Each wave can be morphed or transformed
by the TRANSFORM Control. TAB1-3 has 32
sub waves that morph smoothly. Pattern wave
has 32 pulse/gate patterns selectable by
Transform control. See the Wave section of this
manual for more detailed info.
LEVEL/RESET: Sets the
amplitude or level of the LFO
output. In Gate RSTST mode
this knob sets the wave reset
start point when a gate is
present.
CV Amount: Controls the
depth of modulation applied
thru the CV inputs to the
routing assigned by the
CV Route switch. Green
indicates positive CV, Red
is negative. LED off indicates
there is no modulation.
SWITCHES: Each of the
switches effects the way the
LFO operates. See Switch
section for details.
GATE Inputs: Each LFO has
an associated gate input. The
gates are assigned by the gate
selection switch for reset and
sync functions.

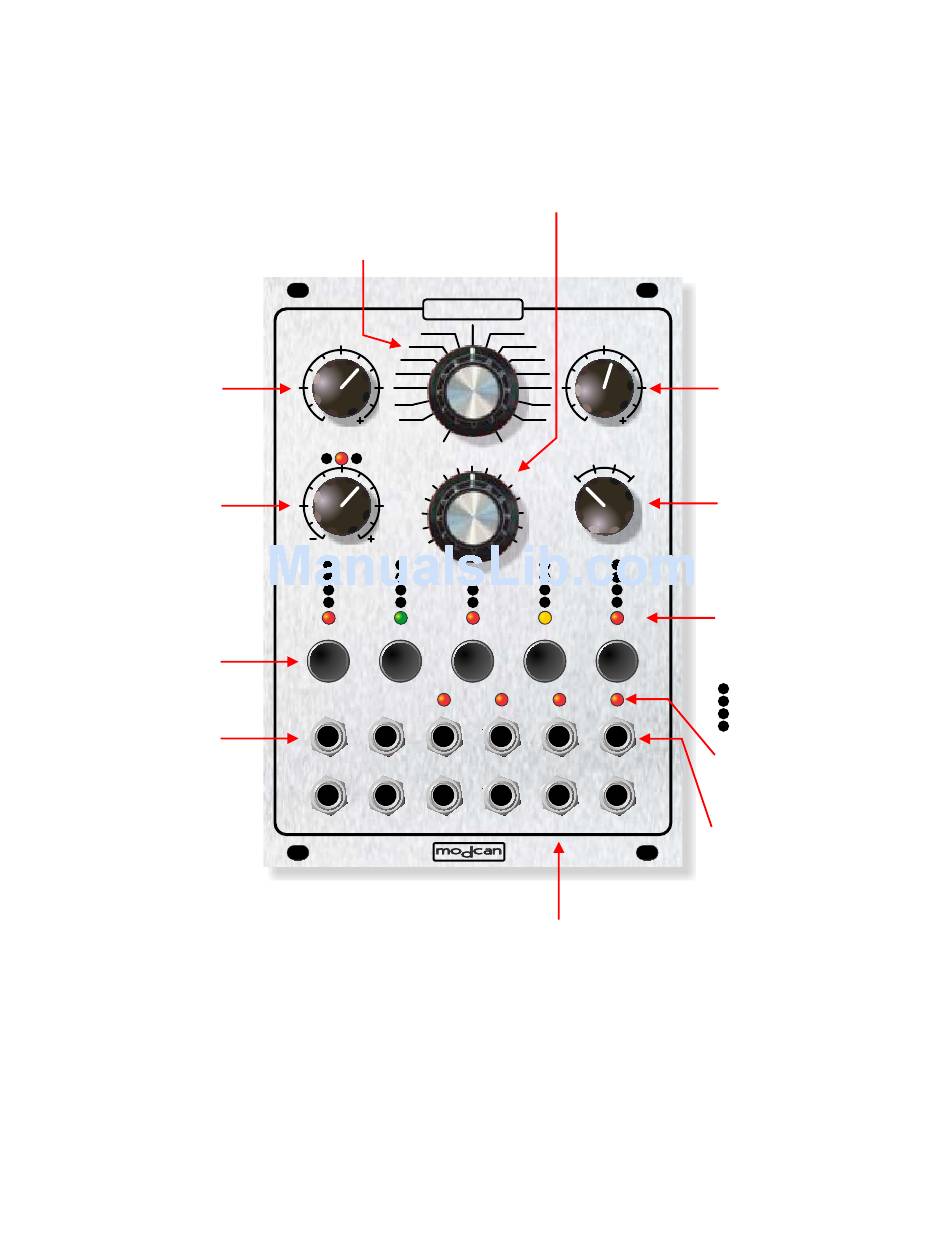

Euro Quad LFO User Guide
CIRCLE
EXPO
RISE
RSAW
SAW
SINE
LEVEL/RESET
-
R G +
4
3
CV AMOUNT
4LFO 5V
QUAD R 5V INV R
PHLOCK
G 10V G
ROTATE Y 10V INV Y
MODE POLARITY
SAVE
GATE1 GATE2
GATE3 GATE4
RATE/DIVISION: Manual Control of the Rate or
frequency of each LFO. In SYNC mode and
PHASE LOCK mode the function changes to
manual control of clock division from 1-16
QUAD LFO
PULSE STAIR
SLOPE UPDWN
RAND
RCOS
TAB1
TAB2
TAB3
PAT TERN
TRANSFORM
WAVE
2
7 8 9 10
1
6 11
5 12
13
14
2 15
LFO EDIT
1 16
RESET
RATE/DIV
R RSTST
G
LOW HOLD
R HIGH Y SYNC/TAP
RANGE/TAP GATE CV ROUTE
LFO1 CV LFO2 CV LFO3 CV LFO4 CV
LFO1 LFO2 LFO3
LFO Outputs: Output for
each of the
4 LFOs. Output range can
be changed with the
Polarity switch from:
1/ 0-5V
2/ 5-0V inverted
3/ +/-5V
4/ -/+5V inverted
pg1
TRANSFORM: Changes the
waves dependent on the wave
selected. See more details in
Wave section.
3
EDIT: The QuadLFO uses a
4
"paging" system to edit. The 4
way rotary switch selects the
LFO 1-4 to edit. The pots and
switches become "live" for the
channel selected. All settings
FREQ
can be stored in memory.
R LEVEL
G
TRANS
LEDs: Tapping the switches
Y WAVE
changes the colours of the
LEDs. Each colour has a
corresponding function
associated.
=Off
=Red
R
G =Green
=Yellow
Y
Status LEDs: Indicate the
state of the LFO cycle and
frequency.
LFO4
CV Inputs: Modulation inputs
that are routed to up to 4
destinations by the CV ROUTE
switch. All 4 destinations can
be active simultaneously per
LFO for a total of 16
modulation routes.
