CAUTION: Please read the full MM513 manual in detail before operating the unit. Review all warnings
noted in the manual.
Use: MM513 is a low frequency high voltage insulation defect tester seeking crack and pinholes
in the jacket or coating of laparoscopic and bi-polar electrosurgical instruments.
Description: The MM513 system is a non-destructive, non-patient contact, high voltage insulation tester
designed to test the insulation integrity of electrosurgical instruments.
It should only be used
1.
Remove the MM513 unit and accessories from the carrying case.
2.
Take the Green ground wire and firmly insert it into the green port on the bottom of the base unit.
3.
Secure the Saddle block to a flat, preferably metal surface, by pushing the top of the unit until the suction feet stick to the surface.
4.
There are a number of ways to set the Saddle Block up depending upon the electrosurgical instrument (ESI) to be tested and/or the McGan kit used.
5.
Attach the red port on the top of the MM513 unit directly to the side pin of the Saddle Block.. Make sure controls face up
6.
Insert the chosen electrode securely into the proper slot on the Saddle Block
7.
Take the clamp on the green ground wire and attach it to the conductive core of the instrument under test.
8.
Turn the base unit on and set the voltage to 2.8KV +/- 0.3KV
9.
Check Battery LED indication colors:
a.
If battery level is blue or red recharge unit using the adapter supplied with the MM513 kit
use of any other charger may cause damage to the MM513 unit and void warranty
b.
CAUTION:
DO NOT simultaneously handle the brush electrode and ground clamp as it will cause a mild "tingle".
gloves as a precaution against receiving the "tingle".

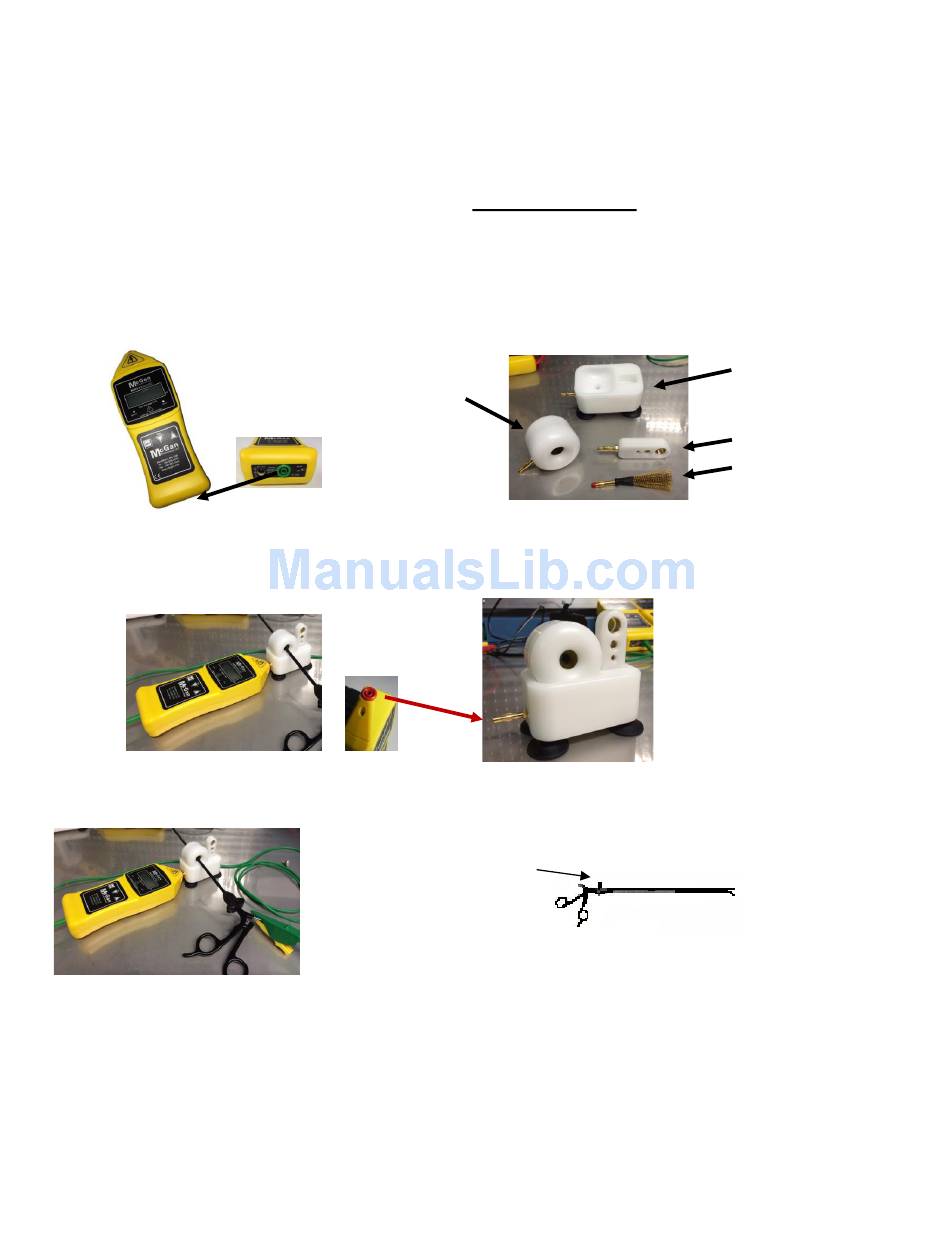

QUICK OPERATION GUIDE
in
the Central Sterile
LSE Electrode
MM513
attached directly
to pin
Red = Battery Flat
MM513
area ONLY.
Attach ground
clamp here
Blue = Charging Green = Battery Full
Saddle Block
Tri Hole electrode
Brush Electrode
The LSE and Tri-Hole
Electrodes mounted in
Saddle Block
Use surgical
Advertisement
Table of Contents
Summary of Contents for McGan MM513
- Page 1 Secure the Saddle block to a flat, preferably metal surface, by pushing the top of the unit until the suction feet stick to the surface. There are a number of ways to set the Saddle Block up depending upon the electrosurgical instrument (ESI) to be tested and/or the McGan kit used.
- Page 2 Follow the following steps: Push the ESI under test through the LSE ring electrode slowly (approximately 3 feet every 4 seconds) The Alarm will sound when the ESI is first inserted into the electrode as that is the bare tip of the instrument. Alarm will sound and LED will Flash if a fault is found in the coating which will indicate a fault with the instrument.
- Page 3 Insert the Red HV lead probe wire firmly into the red port - top of the base unit. Insert wire saddle, brush, ring or Tri-hole electrode firmly into end of yellow handle and repeat steps 9-12 The Lithium Polymer Battery can only be replaced at the McGan facility. DO NOT attempt to replace the Battery...
- Page 4 MM513-102 Carrying case with cut foam MM513-130R Lithium Polymer Battery For Further Instructions and Cleaning of the components read the full MM513 Operational Manual or Contact McGan Technology McGan Technology, LLC 9 Liberty Hill Dr. Blackstone, MA 01504 Ph: 508-876-1070 Fax: 508-883-3434 e-mail: sales@mcgan.com...
