  • Page 1 Effective Date: Nov 1, 2015 W E K N O W V E N T I L A T I O N www.duraflo.com...
  • Page 2 Extreme weather conditions across the country has increased the demand for a weather resistant vent. Duraflo has developed the WeatherPRO® Series line of roof vents, which are available now through your local distributor or retail store. With the WeatherPRO® Series, you no longer need to worry about extreme weather.
  • Page 3 WeatherPRO® Upward Venting The solid sidewalls and upward venting design behind the WeatherPRO® vents have been engineered to increase weather protection while improving ventilation in high wind areas. The solid sidewalls work in part with the interior baffles, providing the first line of defense against driving rain and snow. The solid sidewalls also act to push wind up and over the cap of the vent, as opposed to under, like a traditional roof vent.

  • Page 4: Weather Protection

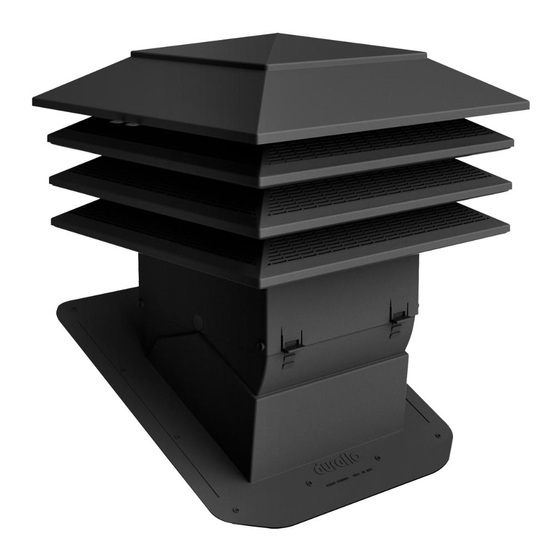

    3 Tier 60PRO150 Model: 130 sq-in / 839 sq-cm screw guides 2 Tier 60PRO140 Model: 95 sq-in / 613 sq-cm 1 Tier 60PRO130 Model: 48 sq-in / 310 sq-cm Description: • One 3 Tier Model will ventilate 1000 - 1200 sq. ft. of attic space (approx) • One 2 Tier Model will ventilate 400 - 500 sq. ft. of attic space (approx) • One 1 Tier Model will ventilate 200 - 300 sq. ft. of attic space (approx) • Patented internal weather baffles • The chimney style design allows the PRO Ventilator to harness wind energy and create pressure variances that powerfully draw air out from within the attic space.
  • Page 5 TURBINE VENTS - PROTURBO Model: WeatherPRO® PROTurbo # 60PRO117 SIZE DESCRIPTION PART # IMPERIAL METRIC Black 60PRO117BL 17-1/2” x 20” x 16-1/4” 445mm x 508mm x 413mm Dimensions: Brown 60PRO117BR 17-1/2” x 20” x 16-1/4” 445mm x 508mm x 413mm Weatherwood 60PRO117WW 17-1/2”...
  • Page 6 STATIC VENTS - PROSlantBack Model: WeatherPRO® SlantBack, # 60PRO50SL SIZE DESCRIPTION PART # IMPERIAL METRIC Dimensions: Black 18” x 24” x 3-1/2” 457 mm x 610 mm x 89 mm 60PRO50SLBL Brown 18” x 24” x 3-1/2” 457 mm x 610 mm x 89 mm 60PRO50SLBR Grey 60PRO50SLG...
  • Page 7 STATIC VENTS - PRO50 Model: WeatherPRO® PRO50, model # 60PRO50 SIZE DESCRIPTION PART # IMPERIAL METRIC Black 60PRO50BL 18-1/2” x 18-1/2” x 4-1/2” 470 mm x 470 mm x 114 mm Brown 60PRO50BR 18-1/2” x 18-1/2” x 4-1/2” 470 mm x 470 mm x 114 mm Grey 60PRO50G 18-1/2”...
  • Page 8 STATIC VENTS - PRO75 Model: WeatherPRO® PRO75, model # 60PRO75 SIZE DESCRIPTION PART # IMPERIAL METRIC Black 60PRO75BL 21-7/8” x 21-7/8” x 5-1/2” 556 mm x 556 mm x 140 mm Brown 60PRO75BR 21-7/8” x 21-7/8” x 5-1/2” 556 mm x 556 mm x 140 mm Grey 60PRO75G 21-7/8”...
  • Page 9 CONTINUOUS RIDGE VENTS - WeatherPRO® Ridge Models: WeatherPRO PRORidge, • Metric - 6072MET • Imperial - 6073 DESCRIPTION PART # IMPERIAL METRIC Dimensions: Metric - Black 6072METBL 12-7/8” 327mm 4 Ft. 4 Ft. Metric - Brown 6072METBR 12-7/8” 327mm (1219mm) Metric - Weatherwood 6072METWW 12-7/8” 327mm Imperial - Black 6073BL 11-5/8”...
  • Page 10 Ventilation Calculator Ventilation Calculator A home requires an equal amount of intake (soffit) & exhaust (roof) ventilation. Note: Roof pitches under 4/12 require double the amount of ventilation. Use this chart to determine how many vents your attic requires. Ventilation requirements for your home NUMBER OF VENTS NEEDED FOR NET FREE AREA 1000 sq.
  • Page 11 1. Apply underlayment on the sheathing and in the 2. Using a 1/2” (1.3 cm) bead, apply a generous amount see Duraflo.com or consult the local center of the rafters cut a 12” (30.5 cm) square hole. of construction sealant to the underlayment infront of building code.
  • Page 12 12” round hole. The edge of construction sealant to the underlayment infront If required, refer to Duraflo Ventilation of the hole should be at least 12” and no more than of hole before applying next shingle course.
  • Page 13 WeatherPRO® SlantBack Vent Installation of Duraflo should comply with all local standards and regulations. Before beginning a job, determine how much ventilation is required in both soffit and roof vents and what sizes of vent would best suit the job. If required, refer to Duraflo Ventilation Calculator for guidance. 6-1/2” For New Construction or Re-Roofing (16.5 cm) 1. Determine the location of vents: Evenly space the roof vents along the width of 8-1/2”...
  • Page 14 WeatherPRO® PRO50 or PRO75 Roof Vent Installation of Duraflo should comply with all local standards and regulations. Before beginning a job, determine how much ventilation is required in both soffit and roof vents and what sizes of vent would best suit the job. If required, refer to Duraflo Ventilation Calculator for guidance. 7-1/4” 9-1/2” For New Construction or Re-Roofing (18.4 cm)
  • Page 15 Before beginning a job, determine how much ventilation is required in both soffit and roof vents and what sizes of vent would best suit the job. If required, refer to Duraflo Ventilation Calculator for guidance. 12” (30.5 cm) Step 1. Cut a slot in sheathing along the ridge 2” (5 cm) wide 1” (2.5 cm) on each side of peak).

  • Page 16: Specifications

    ROOF VENTS experience manufacturing similar products. A. Roof ventilation shall be from a single source B. Installer Qualifications: Minimum 2 years experience of Duraflo Roofing Ventilation products installing similar products. manufactured by Canplas Industries Ltd. PRE-INSTALLATION MEETINGS CONTINUOUS ROOF VENTS A.
  • Page 17 Specifications Engineered to resist denting, peeling, extreme heat 3. CSA certified - Plastic Type C ridge vent, for installation and cold impact to -40 degree F (-40 degree C). on roof ridge. 3. CSA certified - Plastic Type B roof vents, for installation 4. Construction: Injection molded from pure, high on sloping surfaces.
  • Page 18 Specifications and cold impact to -40 degree F (-40 degree C). 7. Model: Weatherwood (60PRO140WW) 21-1/8 inches 3. CSA certified – Plastic Type B roof vents, for installation x 21-1/8 inches x 19-1/2 inches (536 mm x 536 mm on sloping surfaces. x 495 mm). 4. Miami Dade High Velocity Hurricane Zone certified. 5. Model: Black (60PRO50SLBL) 18 inches x 24 inches F. Product: 1 TIER WeatherPRO PROVentilator as x 3-1/2 inches (457 mm x 610 mm x 89 mm). manufactured by Canplas Industries Ltd. 6. Model: Brown (60PRO50SLBR) 18 inches x 24 inches 1. Design: Chimney style design allows ventilator to x 3-1/2 inches (457 mm x 610 mm x 89 mm). harness wind energy and create pressure variances 7. Model: White (60PRO50SLW) 18 inches x 24 inches that draw air out from within the attic space.
  • Page 19 Notes - 19 -...
  • Page 20 45 years of plastics manufacturing experience. This expertise allows Duraflo to continue as the innovation leader in roof ventilation. Throughout our history Duraflo has listened to you, the customer, to create solutions to meet your building needs. In developing and maintaining an...

This manual is also suitable for:

60pro15060pro140
