CANYON SMART security cameras are presented in three alternate
designs:
–
CNSS
KA1W
–
CNSS
CM1W
CNSS
–
CB1W
1. Package contents for

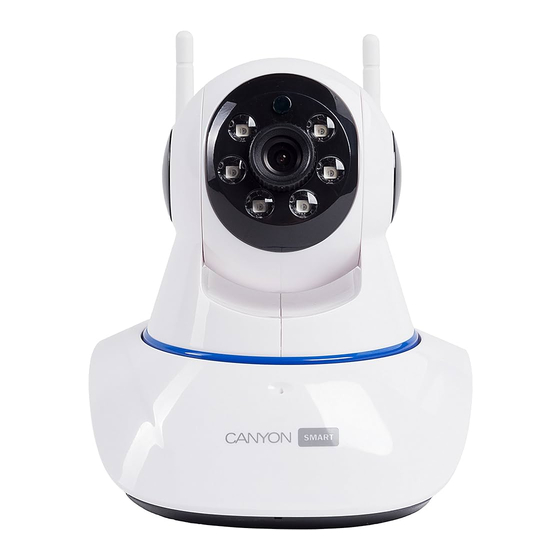

IP camera (Fig. 1.1) - 1 pcs
Motion sensor (Fig. 1.2) - 1 pcs
Door opening sensor: Receiver (Fig. 1.3) - 1 pcs
Receiver sensor (Fig. 1.4) - 1 pcs
Power supply unit INP 220V OUT 5V 2000mA - 1 pcs
Mounting bracket - 1 pcs
Battery: Battery - A23 12V - 1 pcs
Batteries AAA - 3 pcs
Manual - 1 pcs
Operations Manual
for CANYON SMART IP Cameras
–
with a system of motion detection and door opening sensors
–
with a wide viewing angle
–
standard camera
CNSS-KA1W
Fig. 1.1
Fig. 1.3
CNSS
KA1W
–
Fig. 1.2
Fig. 1.4
Advertisement
Summary of Contents for Canyon Smart CNSS-CM1W
- Page 1 Operations Manual for CANYON SMART IP Cameras CANYON SMART security cameras are presented in three alternate designs: – – CNSS KA1W with a system of motion detection and door opening sensors – – CNSS CM1W with a wide viewing angle ...
- Page 2 Camera features: 360 degrees viewing angle Two-way audio: speakers and microphone MicroSD card slot 720p HD video stream Wi-Fi connection Plug-and-play installation Compatibility with iOS, Android and Windows 10 Push-notifications and motion detection sensor ...
- Page 3 CNSS CM1W – Package contents for CNSS-CM IP camera (Fig. 1.5) - 1 pcs Power supply unit INP 220V OUT 5V 1500mA - 1 pcs USB cable, USB 2.0 / micro USB - 1 pcs Mounting bracket - 1 pcs ...
- Page 4 CNSS CB1W – – Package contents for CNSS IP camera (Fig. 1.6) - 1 pcs Power supply unit INP 220V OUT 5V 1000mA - 1 pcs USB cable, USB 2.0 - 1 pcs Manual - 1 pcs Camera features: ...
- Page 5 Android You can also find the CANYON Smart application in the PlayMarket for Android and AppStore for IOS. If you are using a computer, enter the link canyon.usmartcam.com in the Internet browser, press enter, and the application will start downloading.
- Page 6 Fig. 2.1 Fig. 2.2 2.5 To enter into newly created account, enter your e-mail and password that you have entered earlier in (Fig. 2.2). 3. Camera connection and configuration 3.1 Log into the CANYON Smart application from your smartphone under your account. 3.2 Click *+* in the upper right corner.
- Page 7 3.5 Enter your Wi-Fi network password. (Fig. 3.3) Fig. 3.1 Fig. 3.2 Fig. 3.3 3.6 Your camera uses audible signal for connection, therefore, the camera should be away no more than 30 cm from the smartphone. (Fig. 3.5) 3.7 Wait for the sound signal from the camera, after which the application will automatically go to the login page with the name and password fields (Fig.
- Page 8 Important settings 4. Security 4.1 It is recommended to change the default password and name of the camera. To do this (Fig. 4.1), click the button (5.4) and enter a new password that will contain numbers and Latin letters. The password should be from 6 to 30 characters (Fig. 4.2). You can choose the camera name at your discretion.
- Page 9 Name of your camera (for convenience, it is recommended to use the names of facilities or the serial number) Camera status *Online* or *Offline* (when opening the CANYON Smart application all cameras will have the *Offline* status; this is for the power saving mode of your device. If you...
- Page 10 Fig. 6.1 Section *Alarms* In this section, you are notified of the trigger of the camera or connected sensors. Notifications are received in the form of text messages with the date and time, camera or sensor name and type of the alarm (Fig. 6.2). * An alarm signal is sent to your device provided that it is turned on and connected to the Internet (Fig.
- Page 11 Section *Images* By clicking on (5.9) button your camera takes real-time pictures (screenshots / photos), which are saved with the date and time (Fig. 6.4). * This function is used in manual mode. Fig. 6.4 Section *Account* (Fig. 6.6) In *Email* you can delete your account. ...
- Page 12 7. Video surveillance settings (Fig. 7.1) To enter the camera settings you need to be in the main interface (Fig. 6.1). Then click the (5.3) button. Fig. 7.1 7.1 In *Date and time* you can specify date and time (Fig. 7.2). Fig.
- Page 13 7.2 In *Network* you can select the connection type (Fig. 7.3). * You can connect to another Wi-Fi network or select a wired connection (depending on the camera model). Fig. 7.3 7.3 In *Alarm notifications* you can: Enable or disable the delivery of an alarm message on the smartphone (Fig. 7.4).
- Page 14 7.4 In *Record* you can select the recording type (Fig. 7.5). Always: camera will record video until the SD card willbe full, then it will start over record again Alarms only: after selecting this type, the recording will be performed only after the alarm is triggered.
- Page 15 7.5 Item *Security location* (Fig. 7.6) for CNSS-KA W model only You need to select a room where you want to place the sensor. Take one of the sensors: the motion sensor (Fig. 1.2) or the door sensor (Fig. 1.3). * Reminder: the door sensor consists of two elements - receiver (Fig.
- Page 16 After selecting a position, the application will prompt you to confirm your choice. If you selected the correct room, click ОК. (Fig. 7.8) Fig. 7.8 After your confirmation, the sensor detection process will begin (Fig. 7.9). * In order for the program to detect the sensor, you need to turn on the sensors and simulate their triggering.
- Page 17 After successful connection and detection of the sensor, it is ready for use (Fig. 7.10). Fig. 7.10 * To disable the sensor it is necessary to tick the number of sensor to be deactivated, after which its color will change to gray (Fig. 7.11). Fig.
- Page 18 Fig. 7.12 Fig. 7.13 Fig. 7.14 8. Camera installation Install the camera on a stable flat surface near the power supply 220V or on a pre-attached mounting bracket at the desired angle. * Try to choose a place where the camera will not interfere with anything, and will also be protected from moisture.
- Page 19 10. Door sensor installation (Fig. 1.3) (Fig. 1.4), for CNSS-KA W model only The door sensor is installed on the top or bottom of the door leaf with the right side for you. For the maximum range, do not forget to extend the antenna. * Before installing you must install the battery in the receiver.
