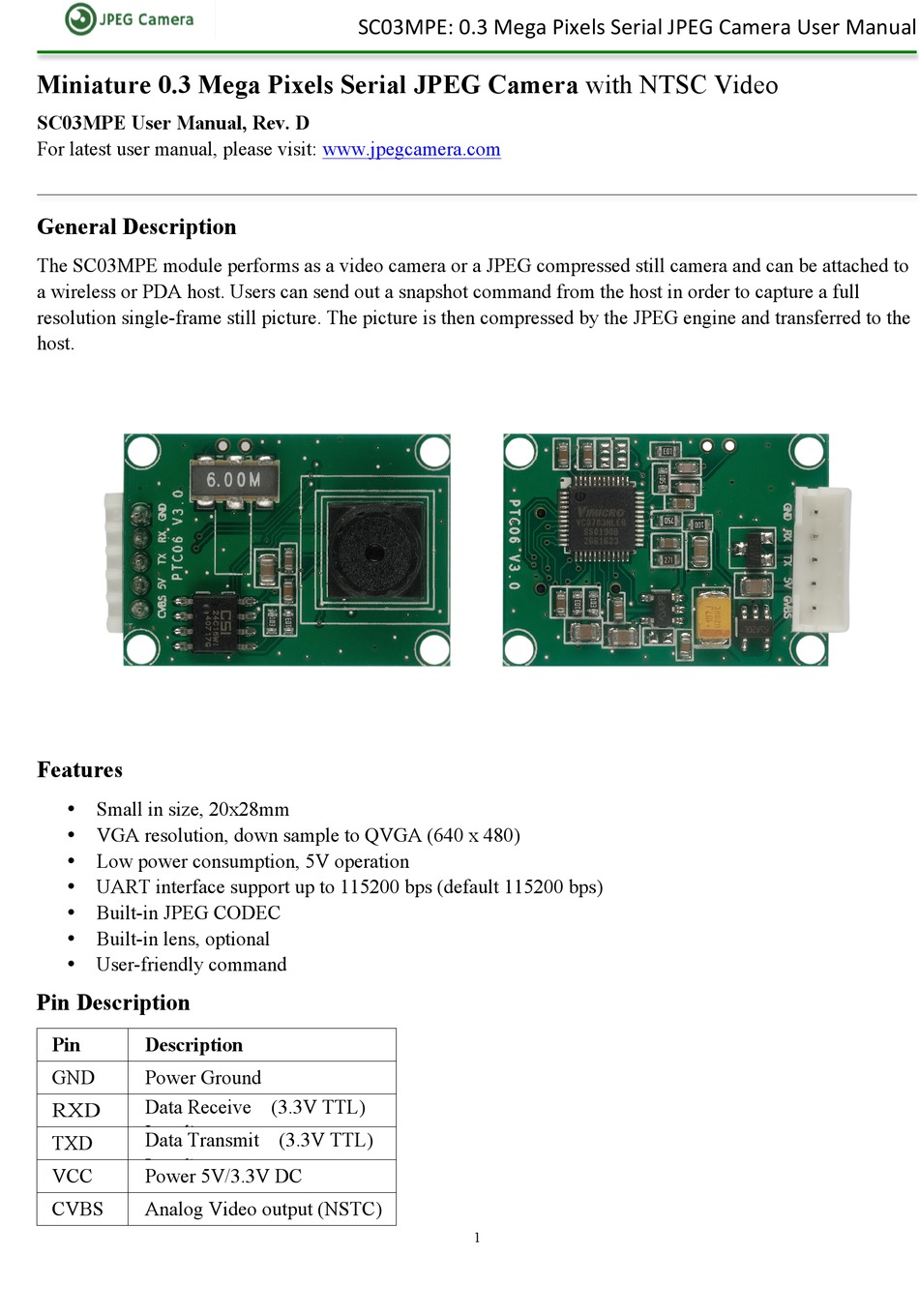

Miniature 0.3 Mega Pixels Serial JPEG Camera with NTSC Video
SC03MPE User Manual, Rev. D
For latest user manual, please visit:
General Description
The SC03MPE module performs as a video camera or a JPEG compressed still camera and can be attached to
a wireless or PDA host. Users can send out a snapshot command from the host in order to capture a full
resolution single-frame still picture. The picture is then compressed by the JPEG engine and transferred to the
host.
Features
• Small in size, 20x28mm
• VGA resolution, down sample to QVGA (640 x 480)
• Low power consumption, 5V operation
• UART interface support up to 115200 bps (default 115200 bps)
• Built-in JPEG CODEC
• Built-in lens, optional
• User-friendly command
Pin Description
Pin
Description
GND
Power Ground
Data Receive (3.3V TTL)
RXD
Level)
Data Transmit (3.3V TTL)
TXD
Level)
VCC
Power 5V/3.3V DC
CVBS
Analog Video output (NSTC)
SC03MPE: 0.3 Mega Pixels Serial JPEG Camera User Manual
www.jpegcamera.com
1
Advertisement
Summary of Contents for JPEG Camera SC03MPE
- Page 1 General Description The SC03MPE module performs as a video camera or a JPEG compressed still camera and can be attached to a wireless or PDA host. Users can send out a snapshot command from the host in order to capture a full resolution single-frame still picture.
- Page 2 SC03MPE: 0.3 Mega Pixels Serial JPEG Camera User Manual Command Summary Command Function INITIAL Configure interface speed, image size GET PICTURE Get image from the module SNAPSHOT Capture a still image SET PACKAGE SIZE Set the package size to transmit data from module to Host RESET Reset the whole system...
- Page 3 SC03MPE: 0.3 Mega Pixels Serial JPEG Camera User Manual Mechanical Specification (unit: mm) Command Protocol (HEX format data) 1. RESET：56 00 26 00 RETURN：76 00 26 00 RESET （56 00 26 00 ） （76 00 26 00 ） 2. CAPTURE A IMAGE：56 00 36 01 00 RETURN：76 00 36 00 00 CAPTURE （56 00 36 01 00 ）...
- Page 4 SC03MPE: 0.3 Mega Pixels Serial JPEG Camera User Manual READ DATA LENGTH （56 00 34 01 00 ） （ 76 00 34 00 04 00 00 XX YY ） 4. READ IMAGE DATA：56 00 32 0C 00 00 00 XX XX 00 00 YY YY 00 0A RETURN：76 00 32 00 00 FF D8 。 。 。 。 。 。FF D9 76 00 32 00 00 ---- start address（the address must be times of 8，for example 00 00 ）...
- Page 5 SC03MPE: 0.3 Mega Pixels Serial JPEG Camera User Manual 8. BAND RATE： ( default: 115200 bps ) SET BAND RATE （56 00 31 06 04 02 00 08 XX YY） （76 00 31 00） BAND RATE AE C8 9600 56 E4 19200 2A F2 38400 1C 4C 57600...
