Summary of Contents for SIRCHIE RIDGE PRO PLUS

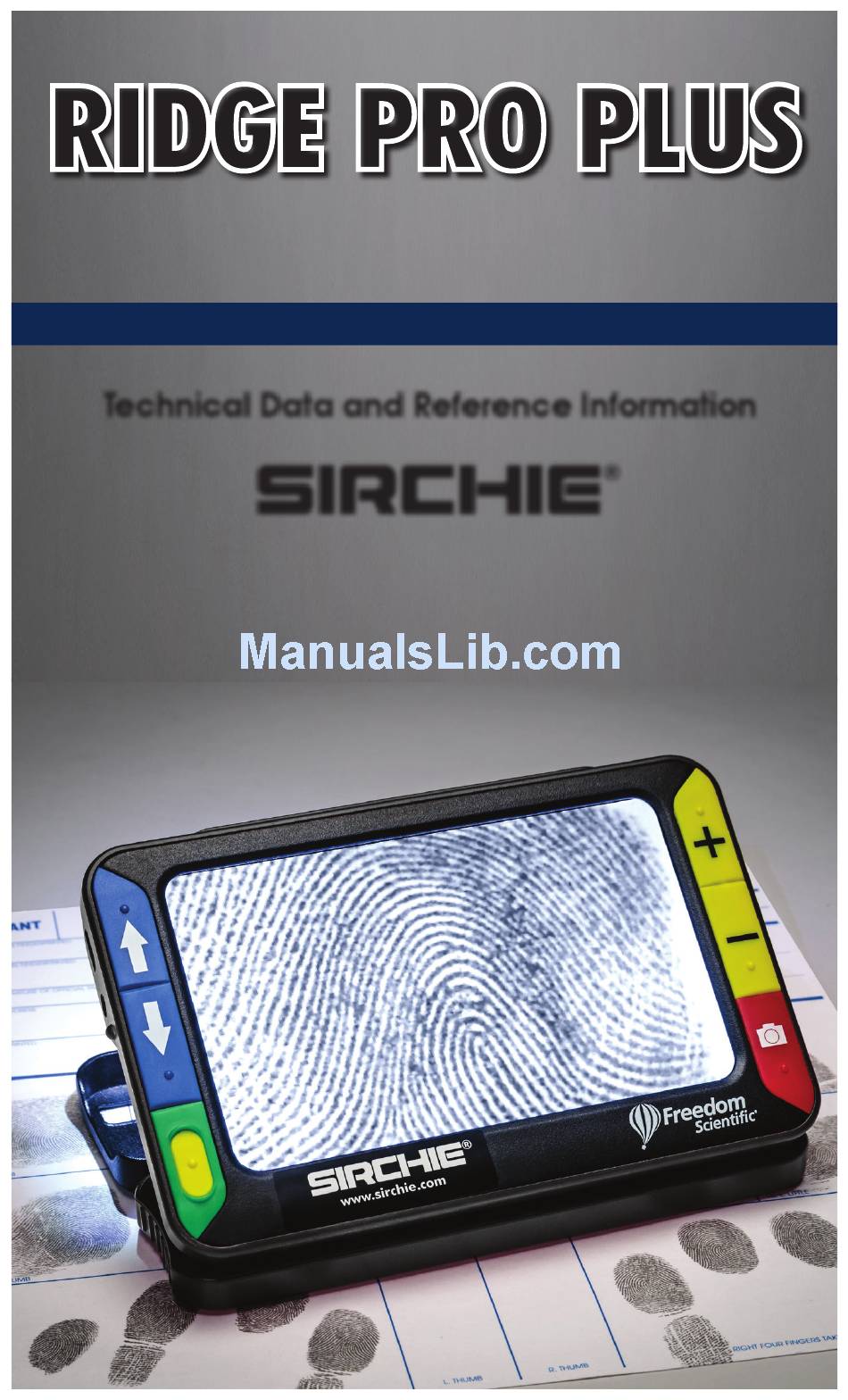

- Page 1 RIDGE PRO PLUS DIGITAL MAGNIFIER OPERATOR'S MANUAL Technical Data and Reference Information SIRCHIE ® Products • Vehicles • Training 100 Hunter Place, Youngsville, NC 27596 USA (919) 554-2244, (800) 356-7311 • www.sirchie.com • sirchieinfo@sirchie.com...
-
Page 2: Table Of Contents
Refer to Battery LED Descriptions for battery status descriptions. • For the basics to help you get started using Ridge Pro Plus, read Quick Start. • For an overview of Ridge Pro Plus and its operation, review the information in this guide first. -
Page 3: Hardware Description
MA14-710ENG-REV1 Features: • 5-megapixel, auto-focus camera that provides sharp HD quality images • 5-inch full color LCD screen. • The unit has both an integrated fold-away handle and viewing stand. • Continuous zoom from 2x to 12x • 2 color modes: color and grayscale •... -
Page 4: Charging The Unit
MA14-710ENG-REV1 6. Freeze the image on the LCD screen so that you may take your time and inspect details in the image. 7. Save the image or return to live view Once you become comfortable using the unit, try the following advanced features. •... -
Page 5: Opening And Closing The Handle
MA14-710ENG-REV1 Opening and Closing the Handle The handle rotates to two open positions so that the unit can be held like a mag- nifying glass. Opening and Using the Viewing Stand The unit also incorporates a viewing stand so that it can be set on an item for hands-free inspection. -
Page 6: Freezing An Image
MA14-710ENG-REV1 Freezing an Image To freeze an image on the screen, do the following: 1. Press the red button to freeze the image. If you like, press the yellow PLUS button to increase magnification, or the yellow MINUS button to decrease mag- nification. -
Page 7: Displaying Masks
MA14-710ENG-REV1 Displaying Masks 1. Press and HOLD the green/yellow button (1) and then press both yellow buttons (2 and 3)) again to remove the reference line and display the masks on the screen as shown in the next figure. 2. Press and HOLD the green/yellow but- (1) and then press the yellow PLUS (2) or the yellow MINUS but-... -
Page 8: Viewing Saved Images
MA14-710ENG-REV1 2. Press and HOLD the red button for three seconds to exit and return to live view. Viewing Saved Images You can easily scroll through images saved on the unit by pressing the blue arrow buttons ( 1. Press and HOLD the red button for approximately six seconds to enter Re- view mode. -
Page 9: Transferring Images To Ridge Pro Plus 50 Using The Usb Cable
USB device. Transferring Images to Ridge Pro Plus Using the USB Cable Any image moved from Ridge Pro Plus to your computer can easily be moved back to the unit. Note: Only images saved by Ridge Pro Plus can be copied back to the unit. -
Page 10: Troubleshooting
A battery error has occurred. Unplug the power adapter from the unit and plug it in again. • If the problem continues, disconnect the power adapter and contact SIRCHIE as mentioned earlier in this document. The battery indicator LED does not flash green, even though the power adapter is connected and plugged into a wall socket. -
Page 11: Technical Specifications
MA14-710ENG-REV1 LED lights produce glare against a reflective surface. • Press and HOLD the green/yellow Power button, and then press the red Freeze Frame button to turn off the LED lights. The unit turns off after 30 minutes. • This is expected behavior. The unit turns off after 30 minutes if no buttons are pressed. - Page 12 • Do not use a paper towel to clean the LCD screen. Cleaning the Ridge Pro Plus Body • Make sure the unit is unplugged. Use a lightly dampened, soft, clean cloth with water or mild detergent. Do not use alcohol, solvents, abrasives, or aerosol sprays.
