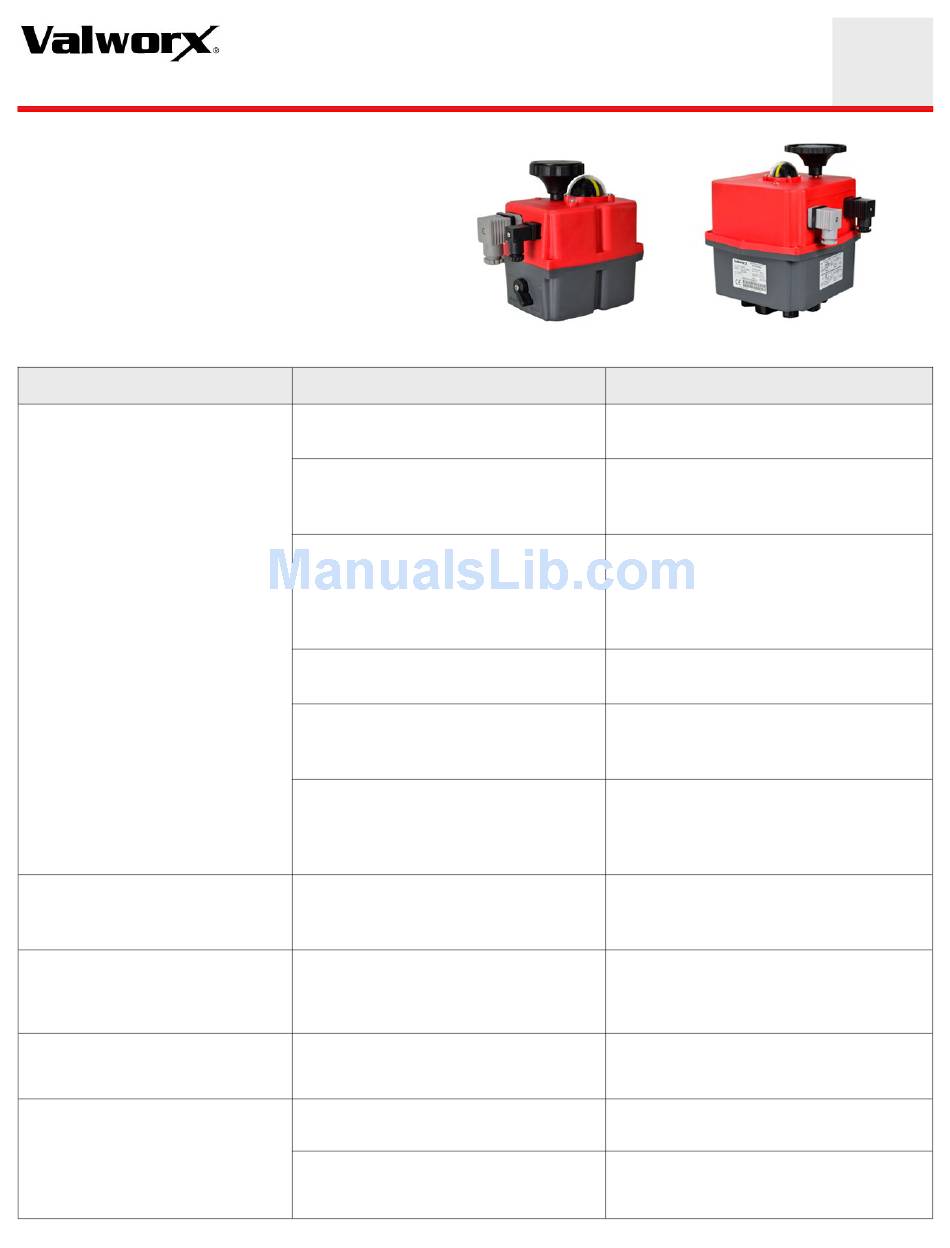

Valworx 561020C Troubleshooting Manual

Valworx 5610/5616 series
On/Off Electric Actuators
Models 561020C, 561055C, 561085C, 561020A,
561021A, 561020, 561021, 561055A, 561056A,
561085A, 561086A, 561603A, 561604A
Valworx electric actuators are 100% tested to
ensure trouble free installation and operation.
PROBLEM
Actuator will not open or close during
initial startup
Actuator (valve) will close, but will not
open during initial startup. Slow LED
blink with DC voltage models.
Actuator will not power up, LED on top
of actuator does not turn ON
Actuator runs but does not rotate
LED double blink or blinking orange
Actuator will not complete the cycle
LED blinking on-off, red or green
Doc: iom5610.5616.onoff.trouble.0618
Multi-Voltage On/Off Electric Actuators
POSSIBLE CAUSE

Incorrect wiring of the gray DIN power
connector

No suitable switching device

Incorrect voltage being supplied to actuator

Power supply is not sized large enough

Actuator does not have an isolated circuit or is
connected in parallel with other actuators or
equipment

Controls or controller is not compatible with
the actuator. Leakage current from solid state
relays or contacts may cause actuator
malfunction.

Incorrect wiring of the gray DIN power
connector

Excessive power surge and/or an over voltage
condition. Damaged main circuit board.

Actuator may be in the manual mode

Over-torque (possible valve jam).

Main control board or motor failure
Cornelius, N.C. • USA
Troubleshooting Guide
5610/5616 Series
5610 Series

Rewiring the gray DIN power plug per the
actuator electrical diagram and instructions.

Customer to supply a SPDT mechanical relay or a
3-way 2-position manual switch to open and close
the actuator.

Confirm correct voltage is being applied to the
actuator. Connecting incorrect voltage may
damage the actuator beyond repair. Do not apply
more than 25.2 volts to the 12-24 volt actuators
(24volts +5%).

This is a motor circuit, therefore power supply
should be sized at least 3 times full load current.

Actuator should have its own fused and isolated
circuit. Do not connect actuators in parallel or
with other equipment on the same circuit.

If possible, bench test the actuator without user
controls or controller. This will help determine
whether there is a problem with the actuator or
the input control circuit.

Neutral or minus (-) power lead MUST be
connected to PIN 1 on gray power connector
(polarity sensitive).

LED light should be ON when power is applied. If
actuator was damaged by a power surge or over
voltage condition, replace with new actuator

Move "MAN" selector lever to "AUTO"

Remove over-torque condition, repower and try
again

Replace with new actuator or return to factory for
evaluation and/or possible repair
IOM
5610
5616
TSG On/Off
5616 Series
SOLUTION
www.valworx.com
