Tone Commander 6030X Installation Instructions

The Model 6030X Expansion Module adds an additional 30 multifunction keys to a Tone Commander 6210 or 6220
ISDN telephone. Included with the 6030X are a wider telephone base that replaces the standard base, a ribbon
cable for connecting the 6030X to the telephone, a key overlay, and one mounting screw.
Telephone operating software must be version 01.04.xx or higher to enable the Expansion Module. To view
the installed software version, select VERS, then S/W from the Administration Options menu (Setup → ADMIN→
VERS→ S/W). If your phone's software version is lower than 01.04.xx, call Tone Commander at (800) 524-0024 to
request an update.

Expansion Module Installation

1. Disconnect the line cord.
Power must be disconnected before installing the 6030X.
Wait 10 seconds after disconnecting power before proceeding.
2. Remove the retaining screw in the center of the base.
3. Press the top of the tall edge of the base to disengage the snap tabs, then lift the base from the telephone
body. Do not touch the expansion connector.

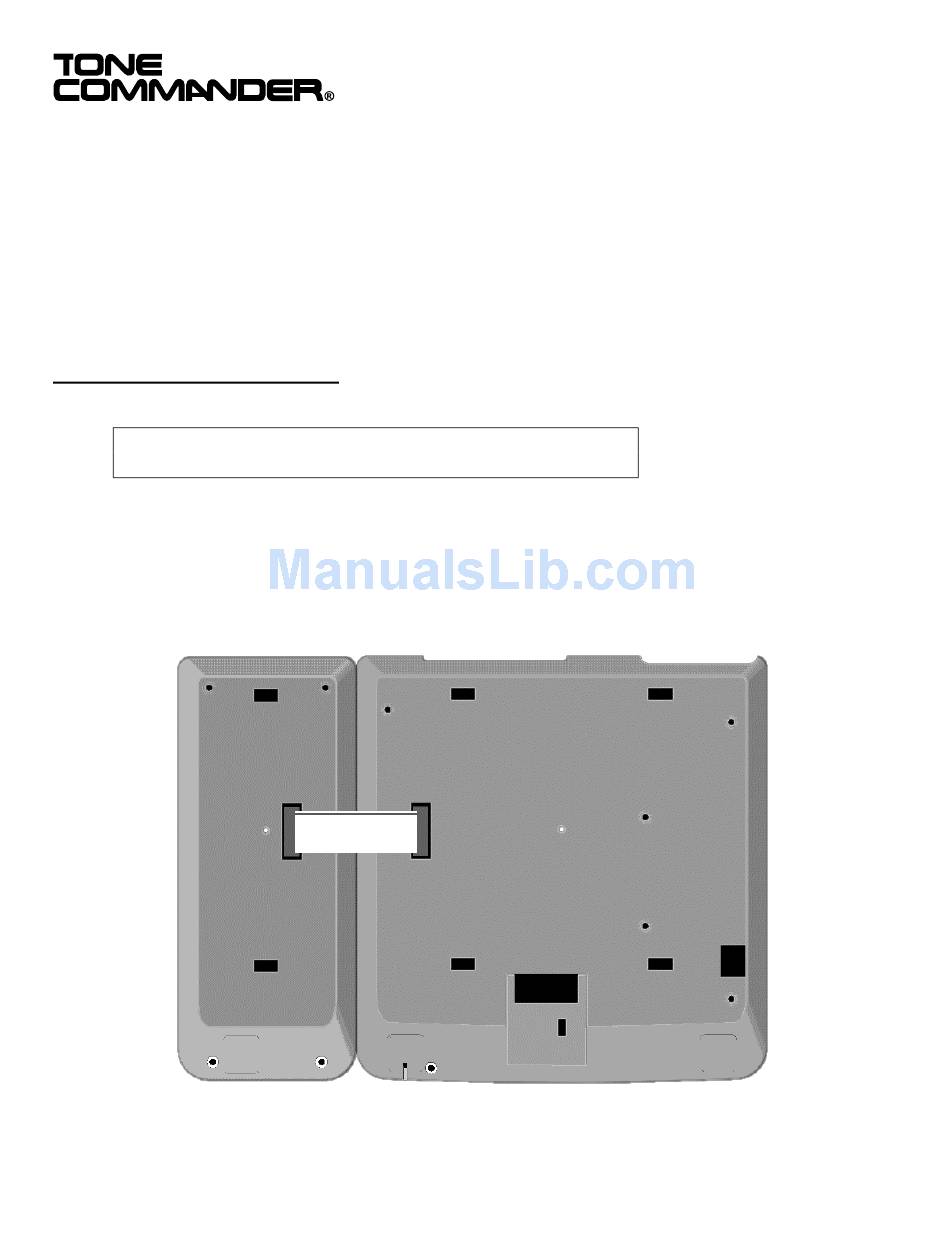

4. Lay the telephone and Expansion Module face down, with the Expansion Module to the left (on the opposite
side from the speaker and handset).
5. Plug the supplied ribbon cable into the connectors on the telephone and Expansion Module as shown. The
polarization tab on each plug must fit into the opening on the side of the connector.
6030X Expansion Module

Installation Instructions

13-102866 Rev. A
January 2002
