Summary of Contents for Eden UPS Freemont

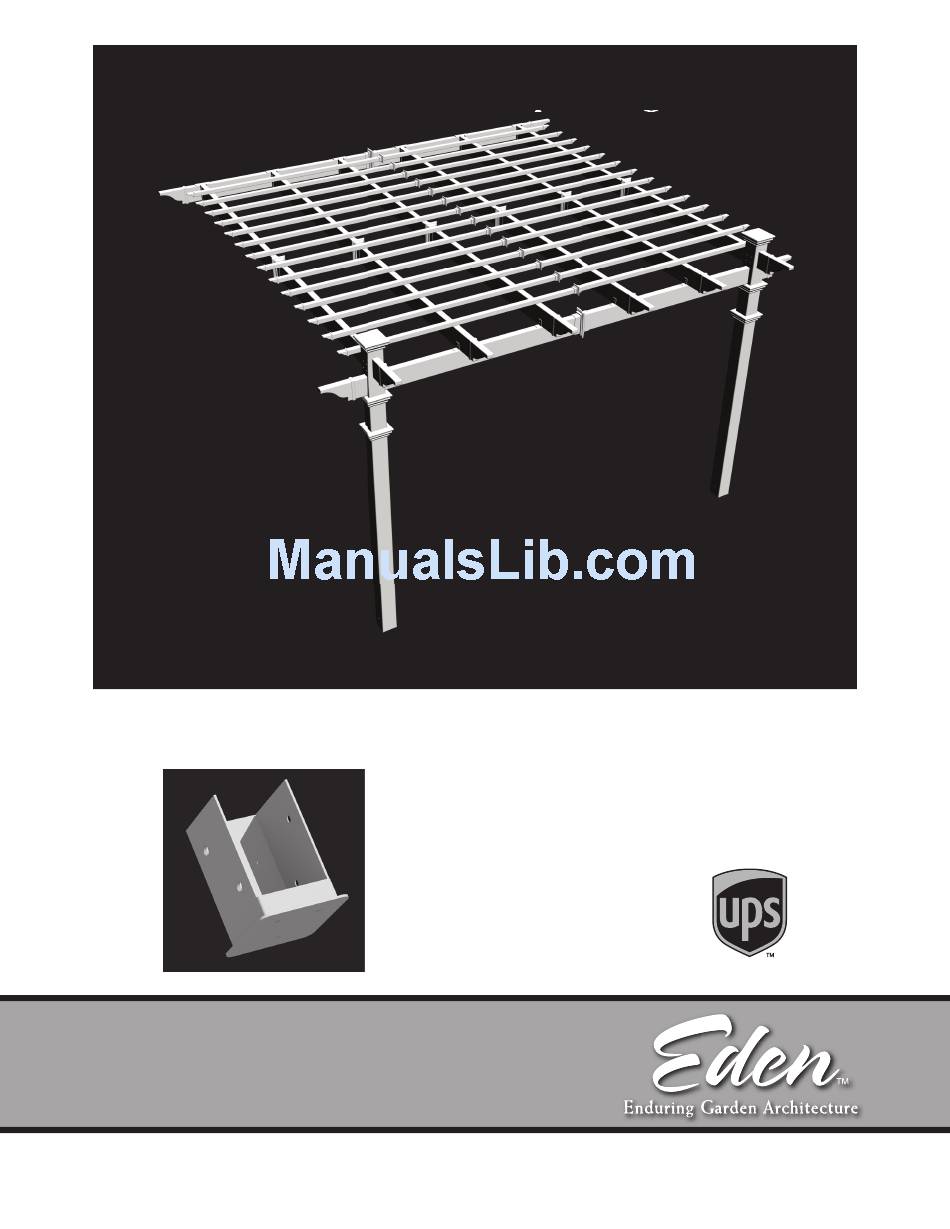

- Page 1 12 x 12 Flat Top Pergola A S S E M B L Y G U I D E Freemont Model: O P T I O N A L A C C E S S O R Y • Bolt Down Bracket Kit (4 for Pergola) Ver 1.2/OCT 2011 www.edenarbors.com...
- Page 2 Ta b l e o f Co n t e n t s PAGE 12 x 12 Flat Top Pergola Introduction & Overview……………………………..........………..Pergola Materials Overview……………………….
-
Page 3: Introduction & Overview
I n t r o d u c t i o n & O ve r v i e w (Freemont Pergola Shown) Getting Started Restriction of Use First off, allow us to say thank you for the investment you have made in one This product is not designed to carry additional of our fine pergola kits. - Page 4 Freemont Pergola Materials Overview www.edenarbors.com 1. Post Caps (2) 2. Main Column Tops (2) 3. Post Trims (4) 4. Rafter & Beam Decorative End Caps (10) 5. Main Support Beams (4) 6. Beam & Rafter Joiners (8) 8.73 in 7. Main Column Bottoms (2) 8.
- Page 5 Freemont Pergola Materials Breakdown www.edenarbors.com Check Boxes (Total of 5) for These Contents In the event of missing or defective parts please call our customer service dept. at 1 800 282 9346, ext #20 (Mon. to Fri. 8:00 AM to 4:00 PM EST). 1.
-
Page 6: Rafter
Pergola Additional Materials List www.edenarbors.com Hardware (in plastic bag) NOTE: WE HAVE INCLUDED 10% EXTRA SCREWS BEYOND WHAT IS IDENTIFIED BELOW. All Screws Included with this Kit are Self-Auguring. A. Vinyl Weld Glue (3) B. 2 1/2” Self-Auguring Stainless Steel Screws (16) (to lock vinyl column and wood post together at bottom of each post) C. - Page 7 Wood Post Layout & Installation for attached Pergola www.edenarbors.com This pergola can also be installed on a pre-existing wood or concrete surface using our bolt down bracket system with Overhead View a 4x4 wood post (sold separate). See page eight for more details. 147.5 in.
- Page 8 O P T I O N A L S T E P www.edenarbors.com 147.5 in. 374.65 cm. Wood Post Layout & Installation using Bolt Down Brackets for Concrete or Wood Surface for Attached Pergola Measure and mark out the location of the pergola posts using string or chalk line.
-
Page 9: Main Column
*Ensure that holes at top of column are orientated correctly for S T E P T H R E E future beam and rafter placement. Vinyl Column Assembly & Installation Over Wood Posts Using the vinyl weld glue, insert the One Way 4”x4” Internal Wood Post Guide in the one end of the main column posts. -
Page 10: Vinyl Beam Assembly
At this stage, the columns should be properly installed as per the following illustration, with the columns 134” in. (340.4 cm) apart. www.edenarbors.com Critical: Note the opening direction of the holes on the top of the posts. Four holes 146 7/8 in. facing up Pre-drilled holes 373 cm. -
Page 11: Vinyl Rafter Assembly
S T E P F I V E www.edenarbors.com Vinyl Beam Assembly Repeat step 1 from the previous step. Install the rafter hanger to the main beams using four 1 1/2” screws. Follow the pre-drilled holes to identify locations. Screw the joiner to vinyl beams and wood insert using 1 1/2” screws. -
Page 12: Vinyl Beams & Rafter Placement
S T E P S E V E N Vinyl Beams & Rafter Placement Using a helper and two ladders proceed to complete the following steps: Slide the vinyl beam with rafter clips pre-installed through both holes of the vinyl column (overshooting), and then back through both holes of the opposite column. - Page 13 S T E P S E V E N Vinyl Beams & Rafter Placement Using a helper and two ladders proceed to complete the following steps: Mount the other pergola beam which has the rafter hangers onto the wood beam as shown. The top of the wood beam should be flush with the top of the pergola beam.
-
Page 14: Fastening Pergola End And Caps
S T E P E I G H T Fastening Pergola ends and Caps Install decorative pergola end caps using vinyl weld. Install the post caps using vinyl weld. Final position your post trims. To glue pergola end in place: 1. -
Page 15: Shade Slat
S T E P N I N E www.edenarbors.com Shade Slat Assembly Assemble shade slats by first gluing the decorative end caps as shown, and then inserting the two slats into one joiner. Push firmly until extrusion bottoms out inside joiner. No screws are necessary.
