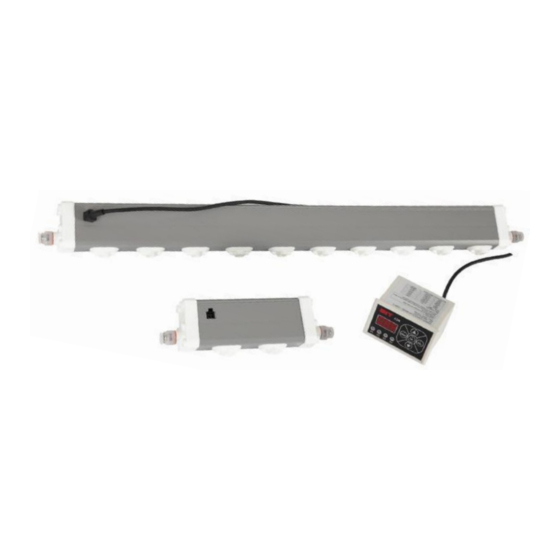

Ion bar asm-p series controller asm-c
Hide thumbs
Table of Contents

Advertisement

Quick Links

Read this instruction manual before using the product in order to achieve maximum performance.
Keep this instruction manual within your reach after reading so that it can be used at any time.
ASM controller can be used for both ASM and ASR series.
28, Namyang-ro 930beon-gil, Hwaseong-si, Gyeonggi-do, Korea
Tel 031-299-5453 Fax 031-357-2610
Instruction Manual
ION BAR
ASM-P Series
Controller
ASM-C

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ASM-C and is the answer not in the manual?

Questions and answers

Summary of Contents for DONG IL TECHNOLOGY LTD ASM-C

  • Page 1 ION BAR ASM-P Series Controller ASM-C Read this instruction manual before using the product in order to achieve maximum performance. Keep this instruction manual within your reach after reading so that it can be used at any time. ASM controller can be used for both ASM and ASR series.

  • Page 2: Table Of Contents

    DONG IL TECHNOLOGY LTD CONTENTS 1. Product Introduction 03Page 1.1 Features 1.2 Specification 1.3 Dimensions 1.4. Performance 1.5 Package contents 1.6 Part names 1.7 Cautions and warranty 2. Installation & Connection 10Page 2.1 Installation location 2.2 Purging and moving into CR 2.3 Wiring diagram...

  • Page 3: Product Introduction

    1. Product Introduction DONG IL TECHNOLOGY LTD 1.1 Features Welcome to become a customer of DIT! ASM-P series is a slim bar ionizer designed to be more convenient to monitor and control the product by separating its controller, while succeeding the outstanding performance of ASG-P series.

  • Page 4: Dimensions

    DONG IL TECHNOLOGY LTD 1. 3 Dimensions <Bar> <Front view> <Bottom view> <Side view> <Bracket rotation> <Panel cut-out> <Controller> <Controller Front view> <Controller Rear view> <Controller Side view>...
  • Page 5 DONG IL TECHNOLOGY LTD 1. 3 Dimensions <Bracket> <Number of emitters & Length by Model> Number of Number of Model Length(mm) Model Length(mm) emitters(EA) emitters(EA) ASM-P015 ASM-P140 1396 ASM-P020 ASM-P150 1496 ASM-P025 ASM-P160 1596 ASM-P030 ASM-P170 1696 ASM-P035 ASM-P180 1796...
  • Page 6 DONG IL TECHNOLOGY LTD 1.4 Performance ※ Discharge time: the time necessary for static elimination  Relation between discharge time and distance( Distance: mm, discharge Time: sec) : shows discharge time according to the distance measured in product’s side and front perspective.

  • Page 7: Package Contents

    DONG IL TECHNOLOGY LTD 1.5 Package Contents  Package (1) BAR Package (2) Controller Package ① Main body(power supply embedded) ① Controller ASM-P Bar사진 삽입 ② Controller Bracket ② Fixing screws ※ Contact to the seller for customizing (Basic hexagon head bolt M4X6mm) ...
  • Page 8 DONG IL TECHNOLOGY LTD 1.6 Part Names 1. 3 Part Names <BAR> ① ② ③ ① Air feeding entrance ② Ion emitters ③ Controller Connector (4pin) <Controller> ⑤ ⑥ ① ③ ② ④ ① DISPLAY ② Status Display LED of Ion Bars ③...
  • Page 9 DONG IL TECHNOLOGY LTD 1.7 Cautions Please be well informed of the cautions below before installation. Safety . To avoid the risk of electric shock or product malfunction, keep fingers and metallic objects away from the unit during operation. . Make sure that there is adequate ventilation when using the Unit in an enclosed space 3.

  • Page 10: Installation Location

    2. Installation DONG IL TECHNOLOGY LTD 2.1 Installation Location  Provide enough space between the static elimination bar and surrounding walls as shown in the figures below. 3. 1 설치 위치 선정시 고려사항  If two ASM-P units are used, refer to the following illustration and separate the static elimination bars properly.

  • Page 11: Wiring Diagram

    DONG IL TECHNOLOGY LTD 2. 3 Wiring diagram < Wiring Diagram> Usage PIN No. Color Connection & Usage ① Black Power Supply Ground, Field Ground ② Brown Power Supply Ground, Field Ground ③ Power Supply Ground, Field Ground power supply ④...
  • Page 12 DONG IL TECHNOLOGY LTD 2. 3 Wiring Diagram  Connection when not using PLC and RS-485 1) Connect the black, brown and red cables to a power and field ground. 2) Connect the orange, yellow and green cables to DC 24V.
  • Page 13 DONG IL TECHNOLOGY LTD 2. 3 Wiring Diagram <ASM- P Series PLC Circuit Diagram> <PLC cable according to the number of connected bars> BAR 1 BAR 2 BAR 3 BAR 4 On / Off ① Black ② Brown ⑦ Blue ⑧...
  • Page 14 DONG IL TECHNOLOGY LTD 2.4 Installing and connecting main body  Installation order ① Assemble the brackets firmly into a main body Warning!! If you fix the Unit without using the brackets in package, be careful the weight not to be applied on the side cover, which can result in air leakage.
  • Page 15 DONG IL TECHNOLOGY LTD 2.4 Installing and connecting main body ⑤ Connect RJ-45 power cable (A or B types) to power connector of the controller by pushing the cable until you hear ‘tic’ sound. Warning!! ∙ Make sure that you understand the connection diagram(P.11) and make connections...

  • Page 16: Connecting Multi Bars

    DONG IL TECHNOLOGY LTD 2. 5 Connecting multi bars  Up to 4 bars can be connected to 1 controller in ASM-P Series. ∙ Electric power: Electric power(DC24V) is transferred to bar via controller. HVPS of Ion bar supplies high voltage to the emitter pin.
  • Page 17 DONG IL TECHNOLOGY LTD 2. 6 Check list after installation Recheck the below list before operating the Unit. (1) Make sure that power and air supply are properly connected. Check if proper amount of air flow and power are supplied to the unit. Excessive or deficient amount of air and power may cause damages to the device.

  • Page 18: Settings

    3. Settings DONG IL TECHNOLOGY LTD 3. 1 How to set values  Concurrent Control Menu – Use to control all the bars connected to a controller concurrently.  Individual Control Menu – Use to control an specific bar connected to a controller.
  • Page 19 3. Settings DONG IL TECHNOLOGY LTD 3. 2 Explanation on menu options Menu Explanation Notes Setting Address Assigning “A01” – “A10” is allowed (up to 10 units). When ion output is “oFF”, alarm LED changes to green and. Ion On/Off “IF#”...

  • Page 20: Maintenance

    4. Maintenance DONG IL TECHNOLOGY LTD 4. 1 Necessity of maintenance  Necessity of emitter pin cleaning and emitter replacement In general, when static controllers are continuously in operation for a long period, dust and dirt are accumulated around the emitter pin, called “fuzzy-ball’.

  • Page 21: How To Clean And Replace An Emitter

    DONG IL TECHNOLOGY LTD 4. 2 How to clean and replace emitters  How to clean an emitter ① Prepare soft brush or cotton swab with alcohol. (No acetone) ② Power off the device and stop the air input. ③ Wipe out the white ‘Fuzzy ball’ on the end of the emitter pin softly enough not to damage or scratch it.
  • Page 22 DONG IL TECHNOLOGY LTD Trouble Shooting Problems Check Points 1) Check that the power cable is connected correctly. FND is not displayed 2) When it dose not work even though the cable connection is correct, contact to our sales agent..

  • Page 23: Specification

    DONG IL TECHNOLOGY LTD Warranty We, Dong Il Technology Ltd. Manufactured this product under a strict quality control system and warrants it for1 year of period from the shipment date. However, we don’t have any responsibility for 1) Any damage if the product is used in a way different from that is explained in this manual or remade by users arbitrarily.
