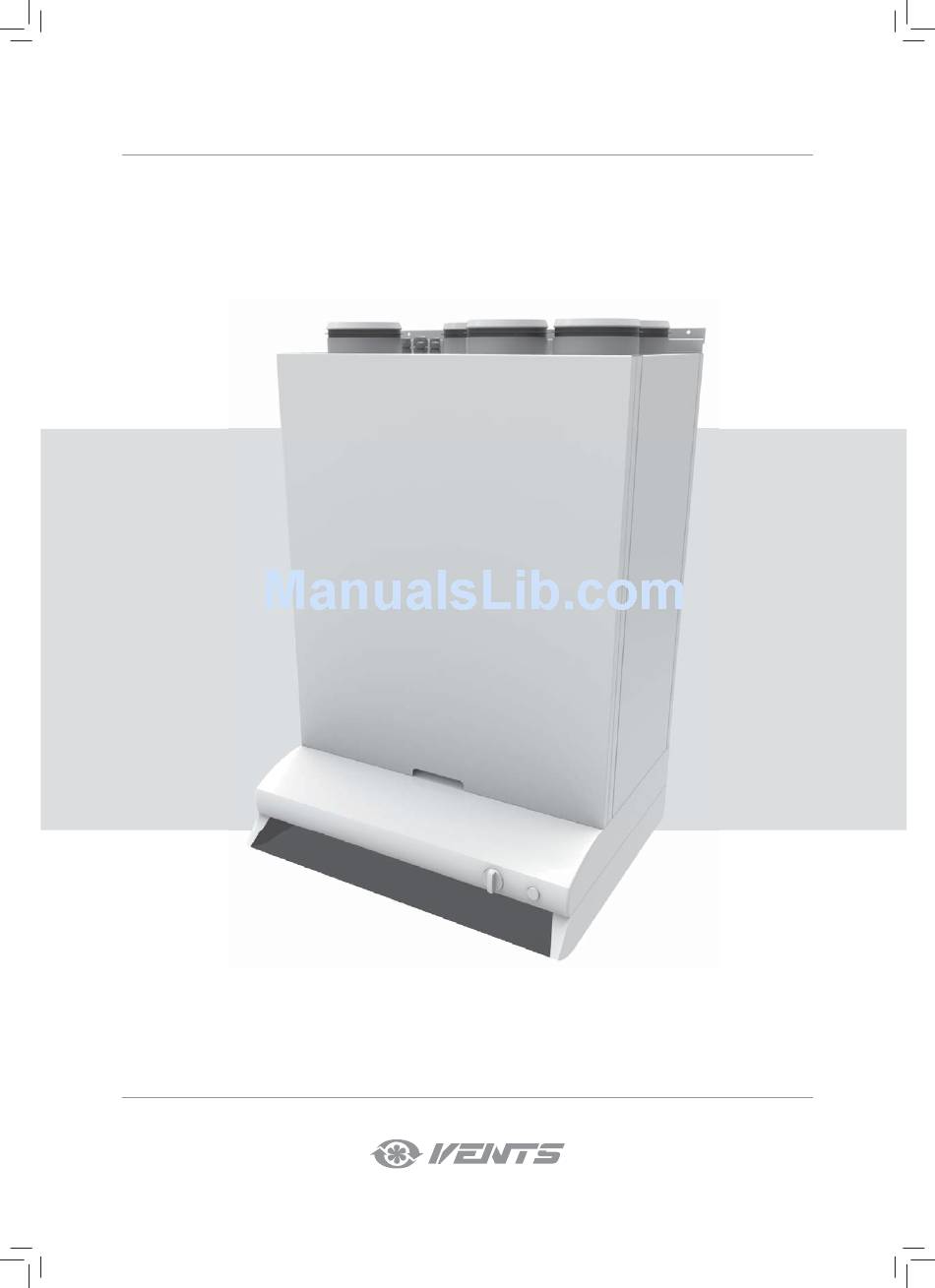

- Page 1 USER’S MANUAL VUTR 200 V2 EC A17 VUTR 200 V2 EC A18 VUTR 200 V2(E) EC A17 VUTR 200 V2(E) EC A18 Heat recovery air handling unit...
-
Page 2: Table Of Contents
VUTR 200 V(E) EC CONTENTS Safety requirements ............................2 Purpose ................................4 Delivery set ...............................4 Designation key .............................4 Technical data ..............................5 Unit design and operating principle ....................6 Mounting and set-up ..........................7 Connection to power mains ......................12 Unit control ..............................13 Technical maintenance ..........................24 Storage and transportation regulations ..................25 Manufacturer’s warranty ........................26 Acceptance certifi... - Page 3 • Do not operate the unit outside the • Do not use damaged equipment or cables temperature range stated in the user's manual. • Do not operate the unit in aggressive or when connecting the unit to power mains. explosive environments. •...
-
Page 4: Purpose
VUTR 200 V(E) EC PURPOSE Due to the ability to save heating energy by means of energy recovery the unit is an important element of energy-effi cient premises. The unit is a component part and is not designed for stand-alone operation. The unit is designed to ensure continuous mechanical air exchange in houses, offi... -
Page 5: Technical Data
TECHNICAL DATA The unit is designed for indoor application with the ambient temperature ranging from +1 °C up to +40 °C and relative humidity up to 80 %. The unit is rated as a Class I electrical appliance. Hazardous parts access and water ingress protection rating: •... -
Page 6: Unit Design And Operating Principle
VUTR 200 V(E) EC DESIGN AND OPERATING PRINCIPLE The unit has the following operating principle: Warm stale extract air from the room fl ows to the unit, where it is fi ltered. Then the air is moved through the rotary heat exchanger and is exhausted outside with the exhaust fan. Clean cold air from outside is moved to the supply fi... -
Page 7: Mounting And Set-Up
MOUNTING AND SET-UP READ THE USER’S MANUAL PRIOR TO MOUNTING THE UNIT. THE UNIT MUST BE MOUNTED BY A QUALIFIED EXPERT ONLY, PROPERLY TRAINED AND HAVING THE REQUIRED TOOLS AND MATERIALS. While mounting the unit provide enough access for maintenance or repair work. The minimum recommended clearances between the unit and the adjoining walls are given in the fi... - Page 8 VUTR 200 V(E) EC UNIT FLOOR MOUNTING Place the unit on a fl at, stable surface that has suffi cient load capacity matching the unit weight and meets safety requirements. Ensure a stable position of the unit by screwing and unscrewing its feet. HUMIDITY SENSOR MOUNTING (NOT INCLUDED IN THE SCOPE OF DELIVERY) The humidity sensor is not included in the scope of delivery and can be ordered separately.
- Page 9 2. Remove the decorative panel and then the service panel by undoing the six screws. Disconnect the ground cable from the service panel. Then remove the back panel of the unit by undoing the six screws. Disconnect the ground cable from the back panel. Replace the service panel with a back panel.
- Page 10 VUTR 200 V(E) EC Th-Tune CONTROL PANEL INSTALLATION To install the rear part of the control panel use a suitable mounting box (minimum diameter 65 mm and minimum depth 31 mm). 1. Use a screwdriver to pull the front and the rear sides of the control panel 2.
- Page 11 PGD1 CONTROL PANEL INSTALLATION Connect the pGD1 control panel to the controller connector (see fi gure on page 16) using the 6P6C (PLUG-6P6C-P-C2) phone plug. The maximum length of the phone cable is 50 m. To mount the control panel on a wall route the phone cable to the selected location. 1.
-
Page 12: Connection To Power Mains
VUTR 200 V(E) EC CONNECTION TO POWER MAINS DISCONNECT THE UNIT FROM POWER MAINS PRIOR TO ANY OPERATIONS. THE UNIT MUST BE CONNECTED TO POWER SUPPLY BY A QUALIFIED ELECTRICIAN. THE RATED ELECTRICAL PARAMETERS OF THE UNIT ARE GIVEN ON THE MANUFACTURER’S LABEL. ANY INTERNAL CONNECTION MODIFICATIONS ARE NOT ALLOWED AND RESULT IN WARRANTY LOSS. -
Page 13: Unit Control
UNIT CONTROL The unit is equipped with a built-in automatic control system and a control panel. The controller located in the control unit is a basic component of unit control and settings. The automatic control system has the following functions: 1. - Page 14 VUTR 200 V(E) EC UNIT CONTROL PANELS The unit is controlled via the th-Tune or pGD1 control panels. Button Functions Operation mode selection: set the operation mode according to the procedure. Fan speed selection: set the desired speed level (Low, High or Medium). While the Automatic Speed Drop mode is enabled the fan speed is set automatically to maintain the supply air temperature higher than the minimum value.
- Page 15 Connect the pGD1 control panel to the controller connector (see fi gure on page 16) using the 6P6C (PLUG-6P6C-P-C2) phone plug. The maximum length of the phone cable is 50 m. The pGD1 off ers extended functionality and has identical settings entered via the controller screen (see «Controller functions and menu»).
- Page 16 VUTR 200 V(E) EC CONTROLLER FUNCTIONS AND MENU The controller has the following controls and indicators: Backlit LCD display. The display screen shows the current parameters of the system operation, temperature values, set parameters and alarms. Control buttons of the automatic control system: 6P6C telephone connector The 6P6C connector (PLUG-6P6C-P-C2) is designed for connection of the pGD1 control panel using the telephone cable.
- Page 17 To modify the unit operation parameters move the cursor to the required line using the button. Then use to set the desired value and then press to confi rm. To exit the parameter change mode without saving the changes press VIEWING TEMPERATURE SENSOR READINGS To view the readings from the temperature sensors installed in the unit move the cursor to the upper left corner by means of the button and then...
- Page 18 VUTR 200 V(E) EC TEMPERATURE SETTING To select set-point temperature place the cursor on «Setpoint» using the button. Then use to set the desired temperature value and then press to confirm. Temperature setting range: from +15 °C up to +30 °C. FAN SPEED SETTING To select the desired fan speed set the cursor at «Fan speed»...
- Page 19 Page 2/3 contains the following parameters: Page 3/3 contains the controller fi rmware information. • Outside air temperature [°C] • Supply air temperature [°C] • Exhaust duct temperature [°C] When selecting «Main sensor: in th- Tune» in the «Parameter» fi eld. •...
- Page 20 VUTR 200 V(E) EC 3. Operation mode setup. 4. Setpoint selection. After setting the time press the button to set the unit operation After setting the operation mode press the button to adjust mode. Use the buttons to select one of the following the setpoint.
- Page 21 2. Setting up special day month. 3. Setting up special day mode. Press to select the «Month» parameter. Then use Select the «Mode» parameter by pressing the button and then use select a month in which you want to set up a special day. buttons to assign the operation mode to the special day.
- Page 22 VUTR 200 V(E) EC Page 2/6. Setting up temperature setpoints. T1 is the setpoint for the supply air temperature at which the unit will switch to a lower speed in case of failure to attain the set temperature Press to select a temperature setpoint. Then use conditions.
- Page 23 ALARMS In the event of alarm the controller display shows the pictogram. To respond to an alarm press to enter the active alarms menu. The controller resets the alarm automatically on detecting that its cause The active alarms can be reset manually. To reset an alarm manually has been eliminated.
-
Page 24: Technical Maintenance
VUTR 200 V(E) EC TECHNICAL MAINTENANCE DISCONNECT THE UNIT FROM POWER SUPPLY BEFORE ANY MAINTENANCE OPERATIONS. Maintenance operations of the unit are required 3-4 times per year. Maintenance includes general cleaning of the unit and the following operations: 1. Filter maintenance. Clogged fi... -
Page 25: Storage And Transportation Regulations
POSSIBLE REASONS AND TROUBLESHOOTING Problem Possible reasons Troubleshooting Make sure the power supply line is connected correctly, otherwise No power supply. troubleshoot a connection error. Turn the unit off . Troubleshoot the motor jam and the impeller clogging. The motor is jammed, the impeller blades are soiled. Clean the blades. -
Page 26: Manufacturer's Warranty
VUTR 200 V(E) EC MANUFACTURER’S WARRANTY The manufacturer hereby warrants normal operation of the unit for 24 months after the retail sale date provided the user’s observance of the transportation, storage, mounting and operation regulations. Should any malfunctions occur in the course of the unit operation through the Manufacturer’s fault during the guaranteed period of operation the user is entitled to elimination of faults by the manufacturer by means of warranty repair at the factory free of charge. -
Page 27: Acceptance Certifi Cate
ACCEPTANCE CERTIFICATE Unit Type Heat recovery air handling unit Model VUTR ______________ V(E) _______ EC A _________ Serial Number Manufacture Date We hereby declare that the product complies with the essential protection requirements of Electromagnetic Council Directive2004/108/EC, 89/336/ EEC and Low Voltage Directive 2006/95/EC, 73/23/EEC and CE-marking Directive 93/68/EEC on the approximation of the laws of the Member States relating to electromagnetic compatibility. - Page 28 V140-1EN-01...
