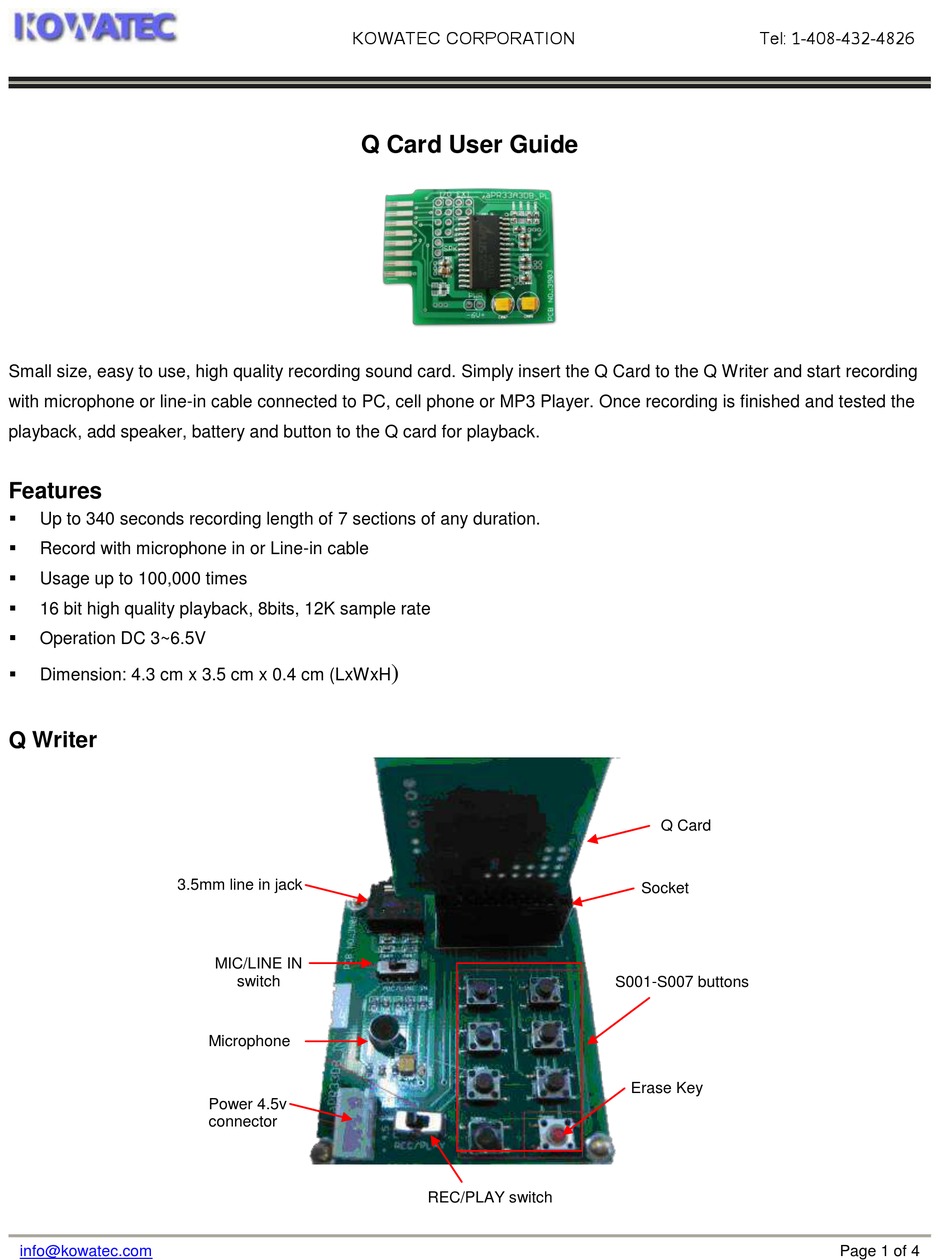

Small size, easy to use, high quality recording sound card. Simply insert the Q Card to the Q Writer and start recording
with microphone or line-in cable connected to PC, cell phone or MP3 Player. Once recording is finished and tested the
playback, add speaker, battery and button to the Q card for playback.
Features
Up to 340 seconds recording length of 7 sections of any duration.
Record with microphone in or Line-in cable
Usage up to 100,000 times
16 bit high quality playback, 8bits, 12K sample rate
Operation DC 3~6.5V
Dimension: 4.3 cm x 3.5 cm x 0.4 cm (LxWxH
Q Writer
3.5mm line in jack
info@kowatec.com
KOWATEC CORPORATION
Q Card User Guide
MIC/LINE IN
switch
Microphone
Power 4.5v
connector
)
REC/PLAY switch
Tel: 1-408-432-4826
Q Card
Socket
S001-S007 buttons
Erase Key
Page 1 of 4
Advertisement
Table of Contents
Summary of Contents for kowatec Q Card
- Page 1 Q Card User Guide Small size, easy to use, high quality recording sound card. Simply insert the Q Card to the Q Writer and start recording with microphone or line-in cable connected to PC, cell phone or MP3 Player. Once recording is finished and tested the playback, add speaker, battery and button to the Q card for playback.
- Page 2 Tel: 1-408-432-4826 To record the sound or messages 1. Insert the Q Card into the socket of the Q Writer with the IC facing outward. 2. Connect the cable of speaker/battery holder to the Power 4.5v connector of the Q Writer.
- Page 3 Connecting the accessories 1. Once the recording is finished and tested the playback, turn off the power of battery holder, unplug the Q Card from the Q Writer.
- Page 4 KOWATEC CORPORATION Tel: 1-408-432-4826 Q Card Trigger Connection Example: 7 trigger buttons. info@kowatec.com Page 4 of 4...
