OPERATING INSTRUCTIONS, Version SW1203/3.00/ HW3.0
Solar Controller SUNGO SL

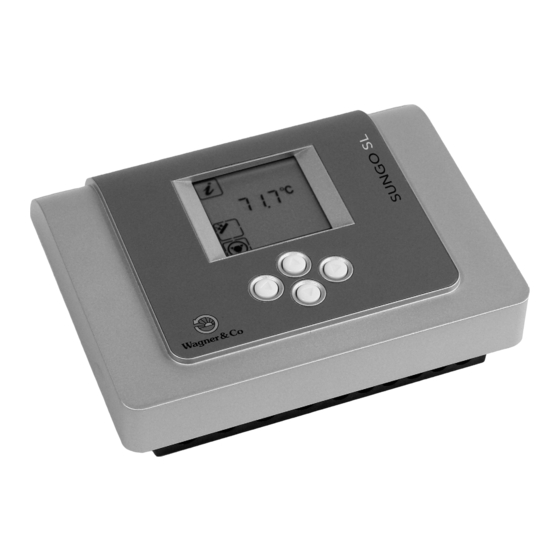

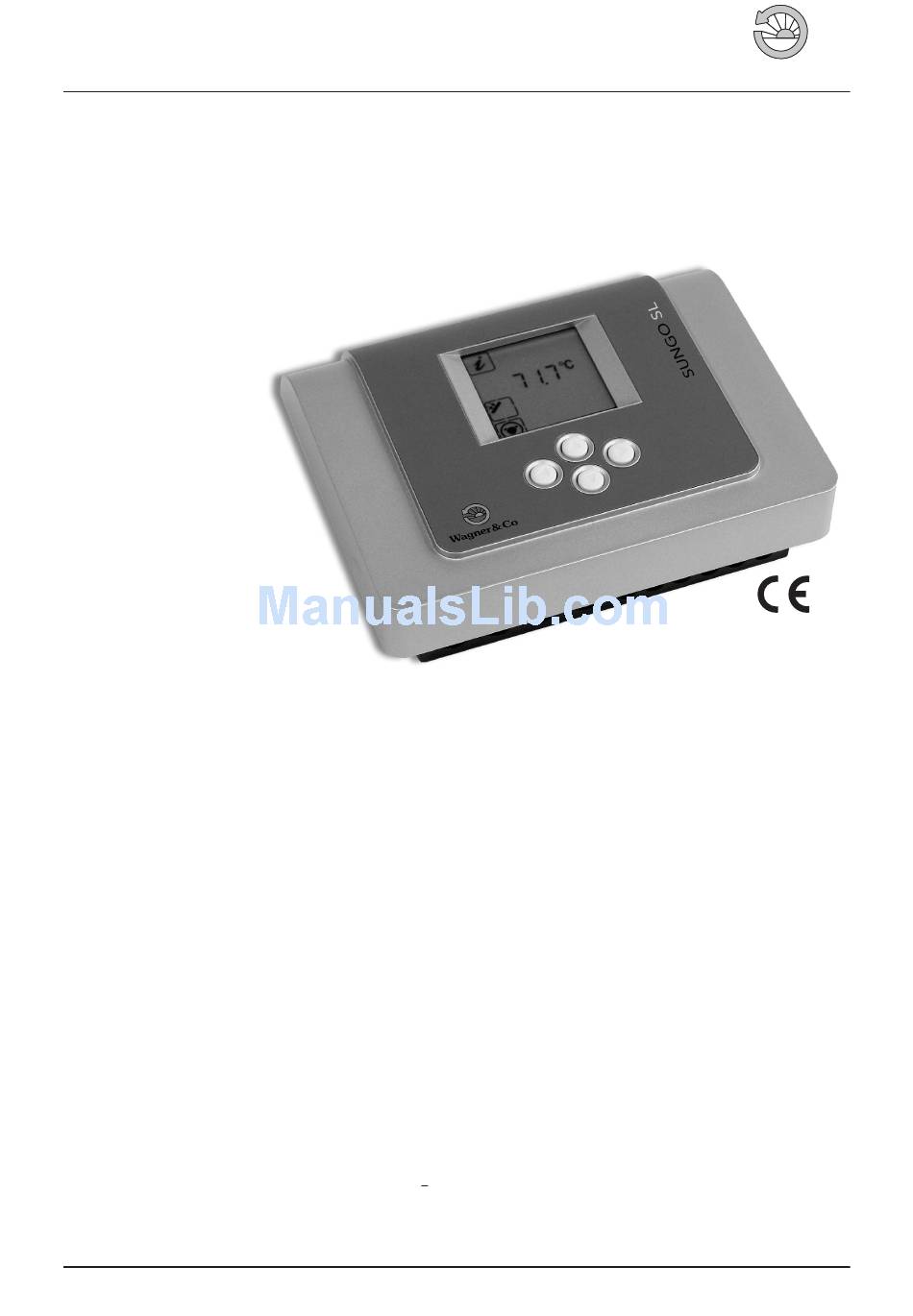

Figure 1 Solar Controller SUNGO SL.
The benefits at a glance
●
Large illuminated display to indicate temperature, bal-
ance values and system status with clearly visible sym-
bols for easy readability.
●
Easy and safe operation via four buttons for vertical and
horizontal scrolling through the menus.
●
Extensive diagnostics for monitoring system functions,
eg. sensor cutoff and monitoring of temperature differ-
ence "∆T too high"
●
Integrated security functions such as collector cooling,
storage tank cooling, system protection and vacuum
tube collector function.
●
Solar charging of 1 and 2 tank systems
●
Choice of thermostat function or return temperature in-
crease
●
Balance/reset values
●
5 temperature inputs PT1000
●
1 output, speed-controlled
●
The sensor T5 (solar return) and an external volume
measuring device provide energy measurements in
kWh.
●
NEW - now also SECUSOL system ready!
Solar Thermal / Solar Circuit
EN-SUNGO-SL_BA-0809-1122P300 · 1316BED008-30B-E
Contents
1. Technical Description . . . . . . . . . . . . . . . . . 2
2. General Safety Guidelines . . . . . . . . . . . . . . . 4
2.1 Installer's Qualifications . . . . . . . . . . . . . . . . 4
2.2 Operating Requirements . . . . . . . . . . . . . . . 4
2.3 Installation and Operating Information . . . . . . . 4
3. Installation. . . . . . . . . . . . . . . . . . . . . . . . 4
3.1 Installation of the Housing . . . . . . . . . . . . . . . 4
3.2 Connecting Wires . . . . . . . . . . . . . . . . . . . 5
4. Operation . . . . . . . . . . . . . . . . . . . . . . . . 6
4.1 Display and Buttons . . . . . . . . . . . . . . . . . . 6
4.2 Information Menu . . . . . . . . . . . . . . . . . . . 8
4.3 Settings Menu. . . . . . . . . . . . . . . . . . . . . . 9
4.4 Manual Operation Menu . . . . . . . . . . . . . . . 10
4.5 Special Functions Menu . . . . . . . . . . . . . . . . 10
4.6 Service - System Messages . . . . . . . . . . . . . . 11
4.7 Service - Sensor Control . . . . . . . . . . . . . . . . 11
5. Application Examples . . . . . . . . . . . . . . . . . 11
5.1 Standard Single Tank System . . . . . . . . . . . . . 11
5.2 Standard Dual Tank System . . . . . . . . . . . . . . 12
5.3 SECUSOL System . . . . . . . . . . . . . . . . . . . . 12
Wagner& Co
Wagner& Co
1
Advertisement
Table of Contents
Related Manuals for Wagner & Co SUNGO SL
Summary of Contents for Wagner & Co SUNGO SL
-
Page 1: Table Of Contents
Wagner& Co Wagner& Co OPERATING INSTRUCTIONS, Version SW1203/3.00/ HW3.0 Solar Controller SUNGO SL Figure 1 Solar Controller SUNGO SL. The benefits at a glance Contents ● Large illuminated display to indicate temperature, bal- 1. Technical Description ....2 ance values and system status with clearly visible sym- 2. -
Page 2: Technical Description
If used in this way the sensor function is monitored as nor- 1. Technical Description mal by the diagnostics system. Solar Controller SUNGO SL Balance Values 100 % recyclable ABS-housing In addition to the actual values of the sensors T1 (collector) - Page 3 Note: If the dual tank option is selected menu item 10 can no longer be activated. Preference The SUNGO SL always uses tank 1 as a preference for the dual tank option. This cannot be changed. Thermostat The thermostat function for switching on can be set at a range between 0°...
-
Page 4: General Safety Guidelines
There is a risk of scalding 2.1 Installer’s Qualifications when fitting the collector temperature sensor. ● Setting up and commissioning of the SUNGO SL must be carried out by a qualified installer. ● All national and local safety regulations need to be com- 3. -
Page 5: Connecting Wires
Installation in the Solar Circulation Unit 230 V mains connection ● ● With the screws mount the SUNGO SL on the wall holder Mains power is connected from outside the control via of the solar circulation unit. an ON/OFF Switch. -
Page 6: Operation
4. Operation 4.1 Display and Buttons Settings menu Manual operation menu Special functions menu Information menu Temperature difference Balance or start / stop values dT min max start stop Numerical display for temp. Units or sensor errors °C % 88888 Tank temp., top/ Collector temperature thermostat additional sensor... - Page 7 Horizontal operating level Settings menu as an example Vertical operating level T max dT min Switching off diff. T3 - T4, __°C return temperature increase Temperature limitation tank, bottom dT max dT max Switching on diff. T3 - T4, return temperature increase Switching on difference T1 - T2, solar T min dT min...
-
Page 8: Information Menu
4.2 Information Menu Information menu Menu item Description Display Collector temperature; Current value °C __°C Collector temperature; Balance; minimum, resettable °C __°C Collector temperature; Balance; maximum, resettable °C __°C Tank temperature, bottom; Current value °C __°C Tank temperature, bottom; Balance; minimum, resettable °C __°C Tank temperature, bottom;... -
Page 9: Settings Menu
4.3 Settings Menu Settings menu Menu item Description Range Default setting T max Temperature limitation tank, bottom 15 – 90 °C 85 °C __°C dT max Switching on difference between collector and tank 3 – 40 K dT min Switching off difference between collector and tank 2 –... -
Page 10: Manual Operation Menu
4.4 Manual Operation Menu Manual operation menu Menu item Description Range Default setting Off = 0/On = 1 0 – 1 Switching the solar circuit pump on or off manually (A1) Off = 0/On = 1 0 – 1 Switching output A2 on or off manually (RLA or thermostat) T stop Activation of manual operation lag time in automatic mode 0 –... -
Page 11: Service - System Messages
T7: Yield measurement, volume flow metre Version 1 – TERMO Combi Cylinder Hot water Cold water Heating circuit Oil or gas boiler Measuring the yield Collector field Solar return-flow Figure 3 Standard single tank system controlled by SUNGO SL. EN-SUNGO-SL_BA-0809-1122P300... -
Page 12: Standard Dual Tank System
Measuring the yield Hot water Collector field Cold water Solar return-flow Figure 4 Standard dual tank system controlled by SUNGO SL. 5.3 SECUSOL System Collector field (EURO C22) Collector sensor Tank sensor, bottom Tank 1 sensor, top (optional) Yield measurement, return flow sensor...
