Summary of Contents for Dat Optic eBOX-F

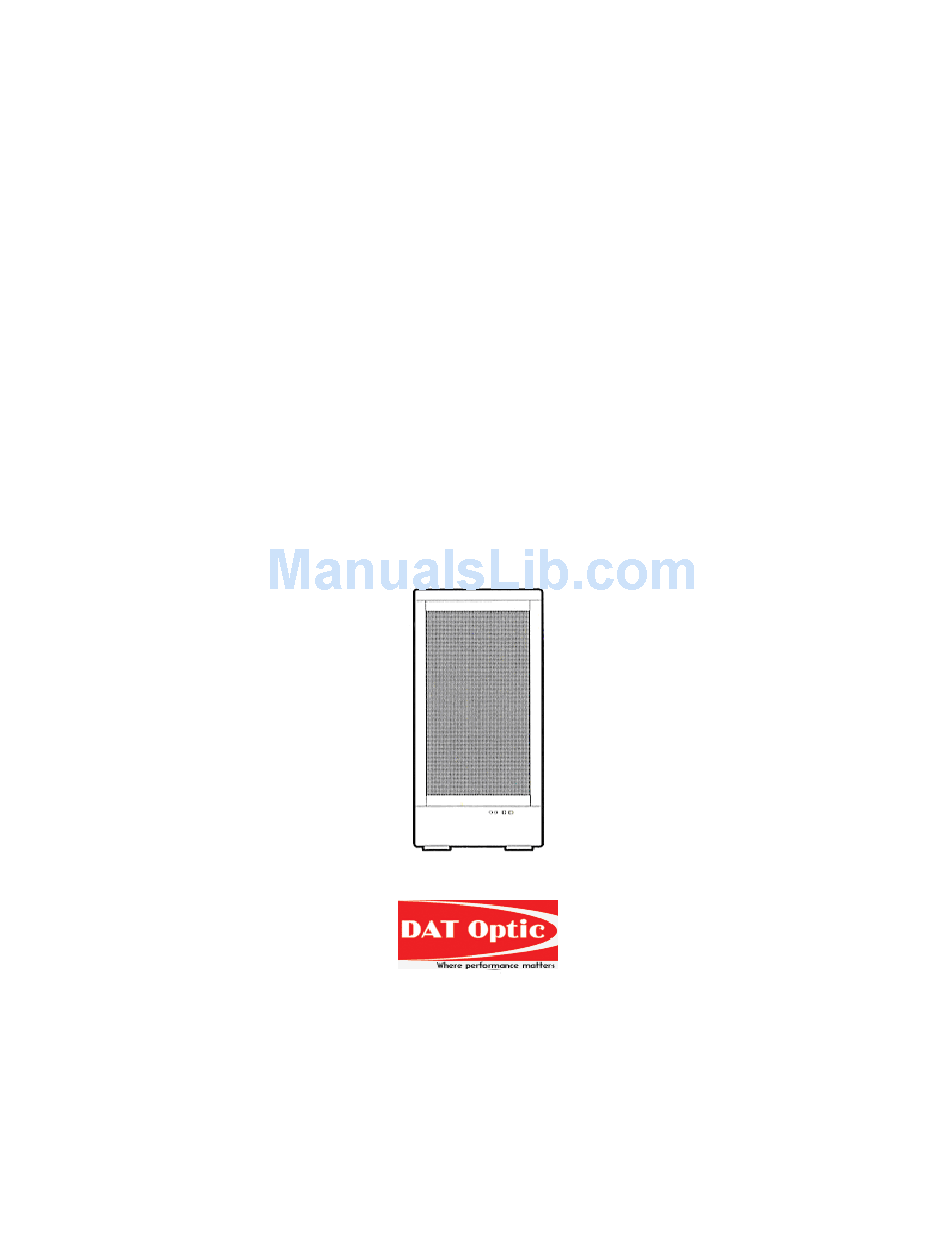

- Page 1 FIREWIRE Manual eBOX-F Manual – Version 1.0 Page 1...
- Page 2 Introduction Thank you for choosing eBOX-F. It is an easy-to-use storage solution that allows a system to access terabyte of data. Use safely - Please follow the manual Read all of these instructions before using In this section, it descript all notification and warming. It tries to prevent any injure and property damage to the...
-
Page 3: Before Using
For improving; it could be modify any detail without informing Specification Model eBOX-F Products TERA TOWER Interface IEEE 1394a/b Firewire FW Port A and B Weight 5.7KG Dimension width 150 × high 340 × depth 340 eBOX-F Manual – Version 1.0 Page 3... - Page 4 Power Macintosh G5 Mac mini eMac iMac Power Book G4 iBook G4 Only limit with FIREWIRE2.0 interface standard type Supporting does not include standard device FIREWIRE interface It does not guarantee to operate in any condition eBOX-F Manual – Version 1.0 Page 4...
- Page 5 It may cause machine breakdown from the static electricity remain on human body Before operating; Please do not touch any of the metals or please using a line to prevent static electricity Please to use screwdriver to install eBOX-F Manual – Version 1.0 Page 5...
- Page 6 If necessary, please purchase S-ATA convert adapter SATA to IDE Please make sure you connect properly When only install one, please set S-ATA covert adapter as Master. When connect two S-ATA HDD ;Please set second S-ATA convert adapter as SLAVE eBOX-F Manual – Version 1.0 Page 6...
- Page 7 Note! Please be aware of hurt by HDD or Chassis 3 Unfasten the screws on the back of the TERA TOWER 4 Remove left side panel eBOX-F Manual – Version 1.0 Page 7...
- Page 8 And flat cable Insert HDD in turn from up to down. Please do not damage the cables The pins connector toward front 6 Press the rubbers on each side to fasten the HDD eBOX-F Manual – Version 1.0 Page 8...
- Page 9 7 Connect AC cable and flact cable to HDD Please connect properly incase of any damage. AC cable 8 Fasten left side panel. Flat Cable eBOX-F Manual – Version 1.0 Page 9...
-
Page 10: Power Off
Press sleep button for 3 seconds, HDD and Fan will stop operating and Sleep Mode LED light will be off. If data was been stored to one of HDD, the Sleep Mode LED light will be off. Please note if HDD temperature is under 40 C, fan won’t operate. eBOX-F Manual – Version 1.0 Page 10... - Page 11 Mous On computer management , select Disk management Initialize and covert dist wizard Click NEXT Select Disk to Covert Click NEXT Complete the Initialized and covert Disk Wizard Click Finish Close the window. eBOX-F Manual – Version 1.0 Page 11...
- Page 12 Formatting. Click the right button of mouse and open the Window, select New Partition Welcome to New Partition Wizard Click Next Select Partition Type Select Primary Partition Select Next Specify partition size Select Next eBOX-F Manual – Version 1.0 Page 12...
- Page 13 Rename the disk If the disk is not renamed, it will show”Volume” Fast formatting It only can be use when HDD has been formatted. When all sets; Click Next New Partition Wizard Finish click Finish eBOX-F Manual – Version 1.0 Page 13...
- Page 14 Select mass memory storage device select STOP Appear Save to remove hardware window, click OK If install 2 or more HDD during standard mode, when remove one of HDD, others will be deleted. eBOX-F Manual – Version 1.0 Page 14...
- Page 15 Volume mode selects other disks; then change every disk setting Name It can change the disk name that you want to make. If you don’t give a name, it shows Name unsetting Formatting eBOX-F Manual – Version 1.0 Page 15...
-
Page 16: Troubleshooting
Within the condition of Standard mode to connect with plural HDD; If one of them delete, then it will delete all of the HDD Troubleshooting Explain how to solve the most common error eBOX-F Manual – Version 1.0 Page 16... - Page 17 3. Even though the content is written carefully; If notice there is some mistake or omission; Please contact with us 4. Reference the result causes the influence, It is unrelated with3.then we are apology for any responsible eBOX-F Manual – Version 1.0 Page 17...
- Page 18 The components keep within 3 years production; It can not request to repair after 3 years This written guarantee no longer reissues, please keep properly This warranty covers only warranty service within Japan Warranty limitation purchase date eBOX-F Manual – Version 1.0 Page 18...
- Page 19 Please write down your suggestions Thank you for purchasing products of SENTHIRI. If you have any suggestions or anything good for us please write an Email appreciate for you’re sincerely advises Mail: info@datoptic.com Web: http://www.datoptic.com eBOX-F Manual – Version 1.0 Page 19...
