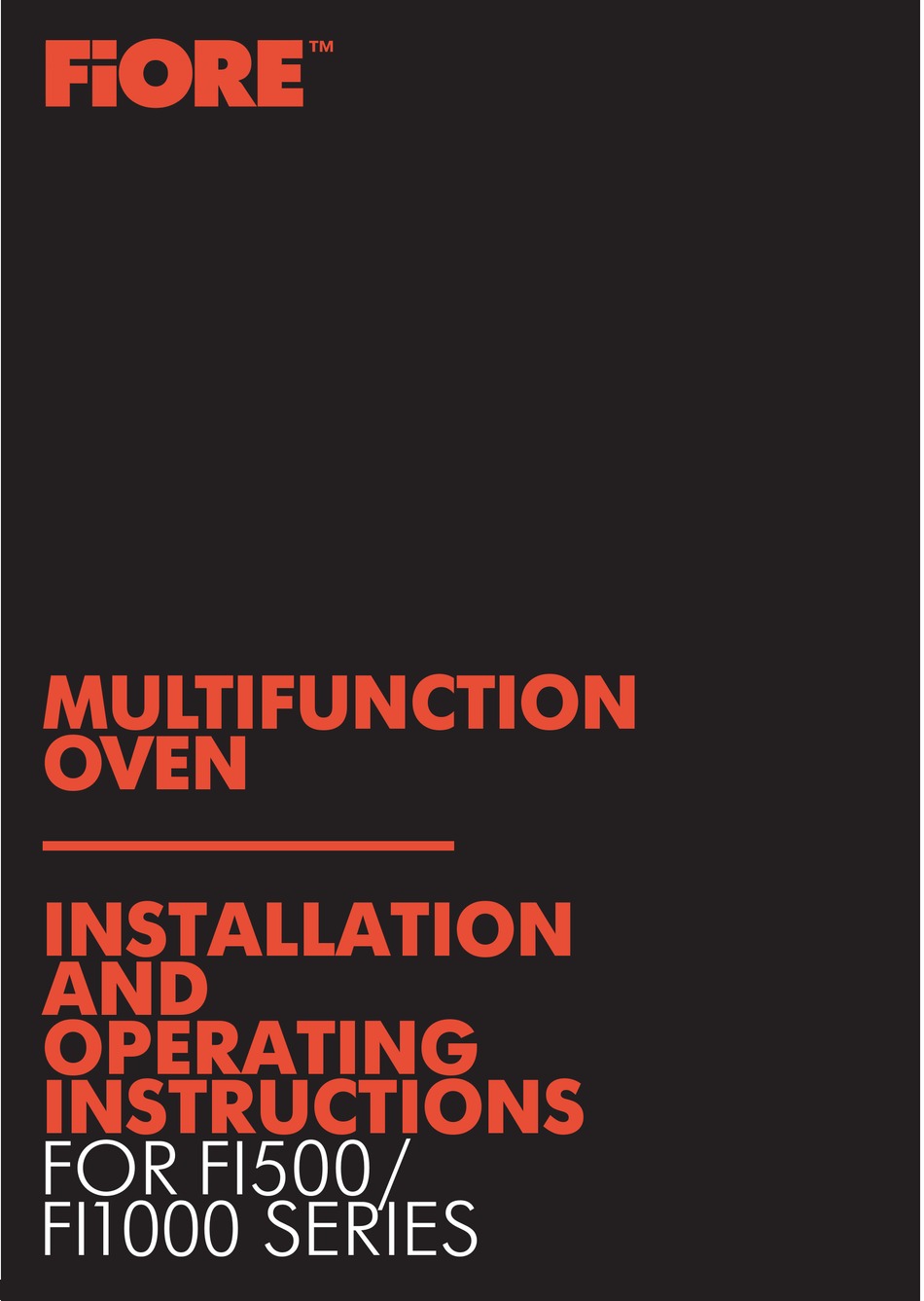

- Page 1 ™ ™ MULTIFUNCTION OVEN MULTIFUNCTION OVEN INSTALLATION OPERATING INSTALLATION INSTRUCTIONS FOR FI500/ OPERATING FI1000 SERIES INSTRUCTIONS FOR FI500/ FI1000 SERIES...
- Page 2 If damage or defect is discovered DO NOT INSTALL your Fiore product. Any claimed damage or defect to the finish of the product after the product has been installed will be excluded from any manufacturer warranty.
-
Page 3: Table Of Contents
MULTIFUNCTION OvEN INSTALLATION AND OPERATING INSTRUCTIONS TABLE OF CONTENTS IMPORTANT SAFETY INSTRUCTIONS INSTRUCTIONS FOR INSTALLATION AND USE INSTALLATION OF BUILT-IN OVENS ELECTRICAL INSTALLATION HOW TO USE YOUR OVEN HOW TO KEEP YOUR OVEN IN SHAPE UNHOOKING THE DOORS REPLACING THE OVEN BULB PRACTICAL COOKING ADVICE... -
Page 4: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS READ AND SAvE THESE INSTRUCTIONS WARNING: When properly cared for, your new appliance has been designed to be safe and reliable. Read all instructions carefully before use. These precautions will reduce the risk of burns, electric shock, fire and injury to persons. When using kitchen ap- pliance, basic safety precautions must be followed, including those in the following pages. -
Page 5: Fire Safety
FIRE SAFETY Do not use aluminum foil or protective liners to line any part of the appliance, especially the oven bottom. Installing these liners may result in risk of electric shock or fire. If materials inside an oven should ignite, keep door closed. Turn off the appliance and disconnect the circuit at the circuit breaker box. -
Page 6: Burn Prevention
BURN PREvENTION DO NOT TOUCH HEATING ELEMENTS OR INTERIOR SURFACES OF OVEN Heating elements may be hot even though they are dark in color. Interior surfaces of an oven become hot enough to cause burns. During and after use, do not touch, or let clothing, potholders, or other flammable materials con- tact heating elements or interior surfaces of oven until they have had sufficient time to cool. -
Page 7: Child Safety
CHILD SAFETY Secure all loose garments, etc. before beginning. Tie long hair so that it does not hang loose, and do not wear loose fitting clothing or hanging garments, such as ties, scarves, jewelry, or dangling sleeves. When children become old enough to use the appliance, it is the legal responsibility of the parents or legal guard- ians to ensure that they are instructed in safe operation of the appliance by qualified persons. -
Page 8: Instructions For Installation And Use
INSTRUCTIONS FOR INSTALLATION AND USE inStRuctionS foR inStAllAtion AnD uSe Exact design will vary for Europe and North America Exact design will vary for Europe and North America Control Panel Cooking mode selection knob Control Panel Cooking temperature selection knob Cooking mode selection knob Electronic programmer-Allows you to programme the desired cooking by selecting the cooking time and the Cooking temperature selection knob... -
Page 9: Installation Of Built-In Ovens
INSTALLATION OF BUILT-IN OvENS INSTALLATION OF BUILT-IN OVENS In order to ensure that the built-in appliance functions properly, the cabinet containing it must be appropriate. The figure below gives the dimensions of the cut-out for installation under the counter or in a wall cabinet unit. In order to ensure that the built-in appliance functions properly, the cabinet containing it must be appropriate .The APPLIANCE AND CUT-OUT DIMENSIONS APPLIANCE AND CUT-OUT DIMENSIONS... - Page 10 N. B :Installation in compliance with the consumption declaration N. B :Installation in compliance with the consumption declaration In order to ensure adequate ventilation ,the back panel of the cabinet unit must be removed .Installing the oven so that In order to ensure adequate ventilation ,the back panel of the cabinet unit must be removed .Installing the oven so that it rests on two strips of wood is preferable .If the oven rests on a continuous ,flat surface ,there must be an at least 45×560mm .
-
Page 11: Electrical Installation
ELECTRICAL INSTALLATION electRicAl inStAllAtion All model ovens on the front cover are dual rated, designed to be connected to Either 208/240V AC ,60Hz, 3 wire , two-phase power supply. All model ovens on the front cover are dual rated, designed to be connected to Either 208/240V AC ,60Hz, 3 wire , two-phase power supply. -
Page 12: How To Use Your Oven
HOW TO USE YOUR OvEN This multi-function oven combines the advantages of traditional convection ovens with those of the more modern fan assisted models in a single appliance. It is an extremely versatile appliance that allows you to choose easily and safely between different cooking modes. The various features offered by the oven are selected by means of selector knob “B”... -
Page 13: Defrosting Mode
BAKING MODE Position of thermostat knob“C”:Between 150 ºF(65 ºC) and 475 ºF(250 ºC) . T he rear heating element and the fan come on, guaranteeing delicate heat distributed uniformly throughout the oven. This mode is ideal for baking and cooking delicate foods-especially cakes that need to rise,and for the preparation of certain tartlets on 3 shelves at the same time. - Page 14 AUTOMATIC SETTING 1 Press button, set roast time; 2 2.Press button, set roast finish time; 3. Set temperatures and roast modes by turning the thermostat knob and selector knob. After the above setting, “AUTO”will be glittering, which means the roast process of the oven is set. For example: if roast time takes 45 minutes and expect it will end at 14:00.
-
Page 15: Setting Oven Clock And Timer
SETTING OvEN CLOCK AND TIMER DECREASE TIME FUNCTION INCREASE TIME This model has a digital display 24 hour clock with 3 control buttons. When first connected to power (or after a power outage) the screen will display ’12:00’ and the bar above the symbol will flash. -
Page 16: How To Keep Your Oven In Shape
HOW TO KEEP YOUR OvEN IN SHAPE Before cleaning your oven, or performing maintenance, disconnect it from the power supply. To extend the life of your oven, it must be cleaned frequently, keeping in mind that: The enameled or stainless steel parts should be washed with lukewarm water without using any abrasive powders or corrosive substances which could ruin them ;Stainless steel could get stained .If these stains are difficult to re- move, use special products available on the market. -
Page 17: Unhooking The Doors
UNHOOKING THE DOORS. UNHOOKING THE DOORS For a more thorough clean,you have to remove the oven door.Choose the removal and assemble method according to different structure of oven door purchased. For a more thorough clean,you have to remove the oven door.Choose the removal and assemble method according to different structure of oven door purchased. -
Page 18: Practical Cooking Advice
PRACTICAL COOKING ADvICE The oven offers a wide range of alternatives which allow you to cook any type of food in the best possible way. With time you will learn to make the best use of this versatile cooking appliance and the following directions are only a guideline which may be varied according to your own personal experience. -
Page 19: Using The Grill
USING THE GRILL This multi-function oven offers you 2 different grilling modes. Use the “grill ”mode , w ith the oven door ajar ,placing the food under the center of the grill (situated on the 3rd or 4th rack form the bottom )because only the central part of the top heating element is turned on. Use the bottom rack (1st from the bottom), placing the dripping pan provided to collect any sauce and / or grease and prevent the same from dripping onto the oven bottom. -
Page 20: Cooking Pizza
COOKED WELL ON THE INSIDE BUT STICKY ON THE OUTSIDE Use less liquid, lower the temperature, and increase the cooking time. The Pastry sticks to the pan Grease the pan well and sprinkle it with a dusting of flour or use greaseproof paper. I used more than one level (in the function “ventilated oven ”) and they are not all at the same cooking point Use a lower temperature setting .It is not necessary to remove the food from all the racks at the same time. - Page 21 Selector knob Food to be cooked Weight Cooking rack Preheating Thermostat Cooking setting (in kg ) posi- tion time (Min- knob setting time (Min- from bottom utes) utes) 1. Defrosting All frozen food 2.Grill Soles and cuttlefish Squid Max Max 8-10 and prawn kebabs Cod filet Max Max...
- Page 22 TANSPORT AnSPoRt avoid damage to the oven vent, use the transport method To avoid damage to the oven vent, use the transport method shown in the picture below. wn in the picture below. ly a qualified person in compliance with the instructions provided must install the appliance. The manufac- r declines all responsibility for improper installation, which may harm persons and animals and damage property. Only a qualified person in compliance with the instructions provided must install the appliance.
-
Page 23: Technical Specifications
TECHNICAL SPECIFICATIONS • • Model FORNO 500 SERIES / 1000 SERIES • • Power Source 240V /60Hz • • Volume (usable capacity) 56 L • • Output Power 2300 W • • Weight Net 32.5 kg approx • • Shipping 37 kg approx •... - Page 24 ATE INSPECTION of your Fiore product for potential freight damage. Any claims for damage visible or hidden, must be made immediately in order for the carrier to assume full responsibility and absorb any associated costs. If damage or cosmetic defect is discovered DO NOT INSTALL your Fiore product. Any claimed damage or defect...
- Page 25 Defects and damages arising from transportation of the product to the home of the owner and other acts of God. Fiore does not assume any responsibility for incidental or consequential damages. Some states do not allow the exclusion or limitation of incidental or consequential damages; therefore, the above limitation or exclusion may...
- Page 26 ™ The appliances are for household use only.
