B
MUST BE READ AND UNDERSTOOD BY ANYONE
U
T

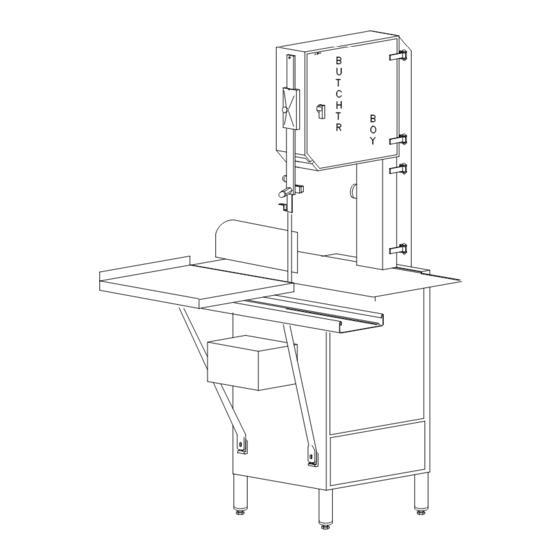

SA16 LH
C
STAINLESS STEEL
BAND SAW
H
E
R
B
O
Y
®
OPERATION MANUAL
USING THIS SAW
AMERICAN MEAT EQUIPMENT LLC.
640 MULBERRY AVE
SELMER, TN. 38375
PHONE: (731) 434-1012
FAX: (731) 645-6056
Last printed 5/27/2011 10:47 AM
Advertisement
Summary of Contents for BUTCHER BOY SA16 LH

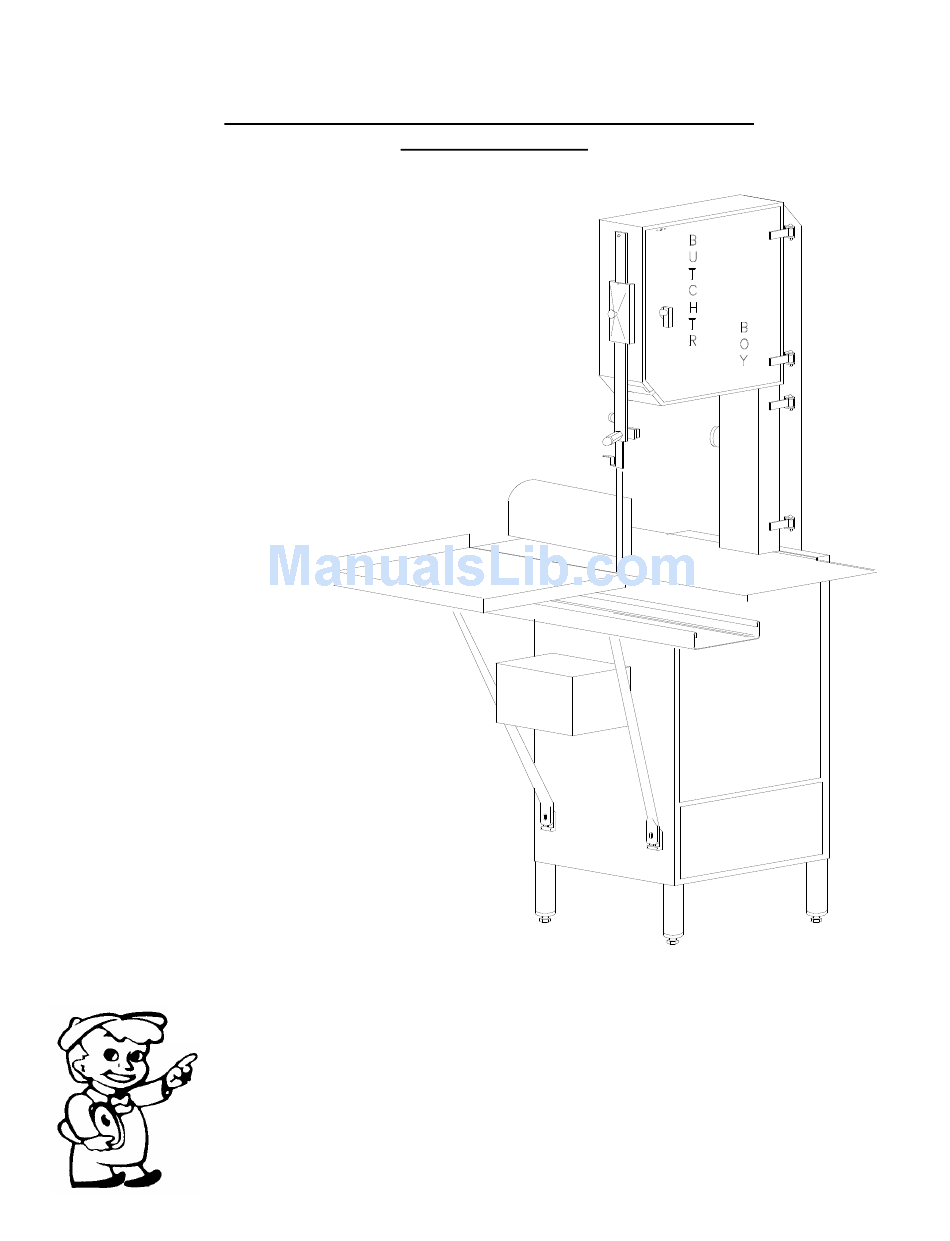

- Page 1 OPERATION MANUAL ® MUST BE READ AND UNDERSTOOD BY ANYONE USING THIS SAW SA16 LH STAINLESS STEEL BAND SAW ® AMERICAN MEAT EQUIPMENT LLC. 640 MULBERRY AVE SELMER, TN. 38375 PHONE: (731) 434-1012 FAX: (731) 645-6056 Last printed 5/27/2011 10:47 AM...
- Page 2 BUTCHER BOY SA16 STAINLESS STEEL BAND SAW Adjusting screw WARNING Correct tension is on blade when red line on indicator lines up with the NEVER TIGHTEN BLADE edge of the wheel BEYOND RED hanger. INDICATOR LINE. BLADE BREAKAGE, SHORTENED BEARING...
-
Page 3: Lubrication Instructions
BUTCHER BOY SA16 STAINLESS STEEL BAND SAW LUBRICATION INSTRUCTIONS UPPER TENSION WHEEL: HANDLE: 2 to 4 Lubricate daily strokes with with edible oil grease gun while screwing every 30 in and out days, as needed UPPER BLADE THICKNESS GUIDE SUPPORT... - Page 4 BUTCHER BOY SA16 LH STAINLESS STEEL BAND SAW ITEM PART# DESCRIPTION ITEM PART# DESCRIPTION 00160635 UPPER DOOR ASSY 0059390 FOOT ASSY 0010581 S/S HINGE PIN 0010260 BRACE ADJUST BRACKET 0010571 S/S HINGE 0010014 BRACE 0010650 S/S LATCH ASSY 0016106 LOWER ACCESS PANEL...
- Page 5 BUTCHER BOY SA16 LH STAINLESS STEEL BAND SAW LH UPPER WHEEL ASSEMBLY COMPONENTS ITEM PART# DESCRIPTION ITEM PART# DESCRIPTION 0010283 GUIDE BLOCK LH 0010031 HUB CAP 0010282 GUIDE BLOCK RH 0016034 GUIDE PIN TENSION GAUGE 0016511 SCRAPER ARM 0016175 ADJUSTING SCREW & NUT...
- Page 6 BUTCHER BOY SA16 LH STAINLESS STEEL BAND SAW LH LOWER WHEEL AND BEARING HOUSING ITEM PART# DESCRIPTION 0090200 RETAINING RING (LARGE) 0090300 BEARING 0010023 SHAFT ASSY W/ WASH & NUT 0090201 RETAINING RING (SMALL) 0010770 NUT & WASHER FOR SHAFT...
- Page 7 BUTCHER BOY SA16 LH STAINLESS STEEL BAND SAW REAR BLADE SCRAPER ITEM PART# DESCRIPTION 0010405 LH FRONT SCRAPER ASSY 0010036 LH FIBER BLADE BLOCK 0010036P LH PLASTIC BLADE BLOCK 0010305 LH BLADE SCRAPER HOLDER 0010002 LOWER BLADE GUIDE STD (.30) 0020785 LOWER BLADE GUIDE HS (.30)
- Page 8 BUTCHER BOY SA16 LH STAINLESS STEEL BAND SAW REAR BLADE SCRAPER ITEM PART# DESCRIPTION 00160617 SCRAPER MOUNT 0010460 BLADE SCRAPER ASSEMBLY 00160618 REAR SCRAPER ASSEMBLY 0010303 THUMB SCREW 0010302 SCRAPER HOLD 0010199 SPRING 0010301 SCRAPER HOLDER 0010300 FIBER SCRAPER PAGE 7 LH...
- Page 9 BUTCHER BOY SA16 LH STAINLESS STEEL BAND SAW SA16 LH BLADE GUARD ITEM PART# DESCRIPTION 00160695 BLADE SUPPORT ADJ BAR 26” 0020624 BLADE GUARD ASSY LH 0095084 KNOB 00160664 BLADE GUARD EXTENSION LH 0010714 EXTENSION STOP 0020785 BLADE GUIDE .030 CARBINE 0020786 BLADE GUIDE .018 CARBINE...
- Page 10 BUTCHER BOY SA16 LH STAINLESS STEEL BAND SAW SA16 LH THICKNESS GAUGE ASSEMBLY ITEM PART# DESCRIPTION 0016071 LH THICKNESS GAUGE W/RATCHET & ROD 0010512 LH HAND THICKNESS GAUGE ASSEMBLY 0016535 GAUGE SLIDE ROD ASSEMBLY 0010041 LH RATCHET LOCK W/HARDWARE 0010297...
- Page 11 BUTCHER BOY SA16 LH STAINLESS STEEL BAND SAW SA16 LH TABLES AND SUPPORT ITEM PART# DESCRIPTION 00160775 LH STATIONARY TABLE ASSY 00165060 TABLE LOCK LEVER 0010339 LH FRONT TABLE SUPPORT 0010332 REAR TABLE SUPPORT 0010293 LEVER ADJUSTING LOCK 00160760 LH TABLE TRACK...
- Page 12 BUTCHER BOY SA16 LH STAINLESS STEEL BAND SAW SA16 LH DRIVE UNIT ITEM PART# DESCRIPTION MOTOR PULLEY**** 0090537 STANDARD SPEED BELT VOLT PART# 0090513 HIGH SPEED BELT 0010485 0010485 DRIVEN PULLEY (8 3/4") 208-575 0010485 0090199-142 DRIVEN PULLEY (6”) 208-230...
- Page 13 BUTCHER BOY SA16 STAINLESS STEEL BAND SAW FUSE F2 (SEE PAGE 13) S21 S22 STARTER FUSE F1 (SEE PAGE 13) ITEM PART# DESCRIPTION ITEM PART# DESCRIPTION STARTER (SEE PAGE 13) 0093999-030 START BUTTON ASSY. FUSE F2 (SEE PAGE 13) 0093999-029...
- Page 14 INPUT CONNECTIONS AS REQUIRE DISCONNECT SWITCH START BUTTON TRANSFORMER NOTE: LOWER 115/208/230V, IPH DOOR 208/230/460V, 3PH (F2) SAFETY 575V, 3PH ROD ACTUATED 2.8A FUSE BLUE OVER CURRENT OPERATOR PROTECTION TO BE YELLOW SUPPLIED BY USER. GREEN STOP SWITCH JUMP CONTACTOR S21 S22 BLUE YELLOW...
