Summary of Contents for Viking Professional EVGC5 Series
-

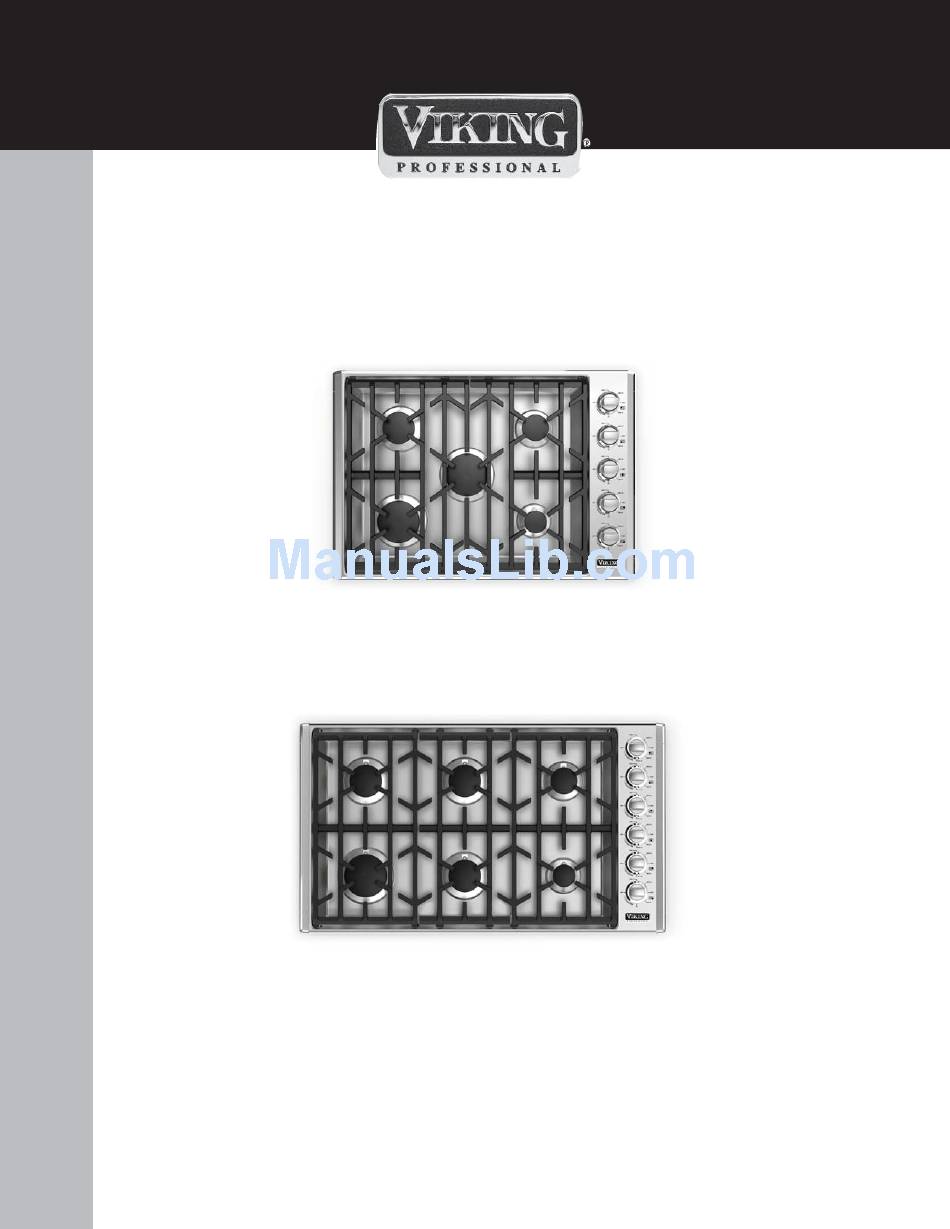

Page 1: Installation Guide
INSTALLATION GUIDE 5 Series EVGC and EVGSU Built-In Cooktops... -
Page 2: Table Of Contents
Table of Contents Warnings & Important Safety Instructions .........................2 Dimensions (EVGC Cooktops) ...........................4 Specifi cations (EVGC Cooktops) ..........................5 Dimensions (EVGSU Cooktops) ..........................6 Specifi cations (EVGSU Cooktops) ..........................7 Cutout Dimensions ..............................8 Cutout Dimensions (Cooktop over Single Electric Oven) ..................8 Clearance Dimensions (Proximity to Cabinets) ......................9 Clearance Dimensions (Wood/Composite Overlay) ....................10 Electrical &... - Page 3 IMPORTANT - Please Read and Follow! DANGER WARNING FIRE/EXPLOSION HAZARD CHEMICAL HAZARD IF THE INFORMATION IN THIS MANUAL If not installed, operated and maintained IS NOT FOLLOWED EXACTLY, A FIRE in accordance with the manufacturer’s OR EXPLOSION MAY RESULT CAUSING instructions, this product could expose PROPERTY DAMAGE, PERSONAL INJURY, you to substances in fuel or from fuel...
-
Page 4: Dimensions (Evgc Cooktops)
Dimensions 30” W. (76 cm) EVGC Gas Cooktop - 3 / ( 7 8 4 ” 36” W. (91 cm) EVGC Gas Cooktop - 3 / ( 9 3 4 ” Side View EVGC Gas Cooktop 7-3/16” (18.3 cm) 1” 2-3/4”... -
Page 5: Specifi Cations (Evgc Cooktops)
Specifi cations EVGC Gas Cooktops Description 30” W. (76 cm) 36” W. (91 cm) Overall width 30-3/4” (78.1 cm) 36-3/4” (93.3 cm) Over height from bottom to 5” (12.7 cm) top of grates Overall depth from rear 21” (53.3 cm) Cutout width 27-3/4”... -
Page 6: Dimensions (Evgsu Cooktops)
Dimensions 30” W. (76 cm) EVGSU Gas Cooktop - 3 / ( 7 8 4 ” 36” W. (91 cm) EVGSU Gas Cooktop - 3 / ( 9 3 4 ” Side View EVGSU Cooktop 7-7/16” (18.9 cm) 2-3/4” 1-1/16” 4-1/2”... -
Page 7: Specifi Cations (Evgsu Cooktops)
Specifi cations EVGSU Gas Cooktops Description 30” W. (76 cm) 36” W. (91 cm) Overall width 30-3/4” (78.1 cm) 36-3/4” (93.3 cm) Over height from bottom to 4-1/2” (1.4 cm) top of grates Overall depth from rear 21” (53.3 cm) Cutout width 27-3/4”... -
Page 8: Cutout Dimensions
Cutout Dimensions EVGC Gas Cooktop 30” W. (76 cm) 36” W. (91 cm) 27-3/4” (70.5 cm) min. 33-3/4” (85.7 min. 29-3/8” (74.6 cm) max. 35-3/8” (89.9 cm) max. 18-3/4” (47.6 cm) min. to 19-7/8” (50.5 cm) max. 3” (7.6 cm) min. EVGSU Gas Cooktop 30”... -
Page 9: Clearance Dimensions (Proximity To Cabinets)
Clearance Dimensions (Proximity to Cabinets) Proximity to Side Cabinet Installation Minimum Clearances from Adjacent • The cooktop may be installed directly to existing Combustible Construction base cabinets. • Above countertop 36” (91.4 cm) minimum • The cooktop CANNOT be installed directly •... -
Page 10: Clearance Dimensions (Wood/Composite Overlay)
Clearance Dimensions (Wood/Composite Overlay) The bottom of a standard hood should be 30” (76.2 cm) min. to 36” (91.4 cm) max. above the countertop. This would typically result in the bottom of the hood being 66” (167.6 cm) to 72” (182.9 cm) Wall Installation above the fl... -
Page 11: Electrical & Gas Requirements
Electrical & Gas Requirements Electrical Requirements CAUTION There is no connection necessary beyond plugging the unit into a polarized, grounded, 230 volt, Before placing the cooktop into operation, always 50/60Hz, 15 amp circuit. A minimum of 230VAC check for gas leaks with a soapy water solution is required for proper operation of gas ignition or other acceptable method. -
Page 12: General Information
General Informatiomn CAUTION CAUTION BURN HAZARD This appliance shall not be used for space heating. This information is based on safety considerations. The use of cabinets for storage above the appliance may result in a potential burn hazard. Combustible items may ignite, metallic items may become hot and cause burns. -
Page 13: Installation
Installation Optional Gasket Remove the grates and burner caps. Turn the cooktop upside down and place on a non-scratch surface. Note: Make sure there are no loose objects on the cooktop before turning upside down. Optional Gasket Turn the cooktop over and place into countertop Peel away the plastic covering and place the opening. -
Page 14: Gas & Electrical Connection
Gas & Electrical Connection Note: Refer to “Electrical & Gas Requirements” section for proper installation information. Bracket Installation Cooktop Cooktop Countertop Countertop Screw Bracket Bracket Eye bolt Screw hold down brackets using the #10 x 1/2” Screw the eye bolt into the self-retaining nut and sheet metal screw to the burner box tighten fi... -
Page 15: Final Preparation
Final Preparation • New units are cleaned at the factory to remove • All stainless steel parts should be wiped regularly any visible signs of dirt, oil, grease, etc. remaining with hot, soapy water and with a liquid cleanser from the manufacturing process. Some stainless designed for this material if build-up occurs. - Page 16 Vikiing Range, LLC 111 Front Street Greenwood, Mississippi 38930 (662) 455-1200 For more product information, call 1-888-845-4641, or visit the Viking web site at vikingrange.com F21391 UK (111514)
