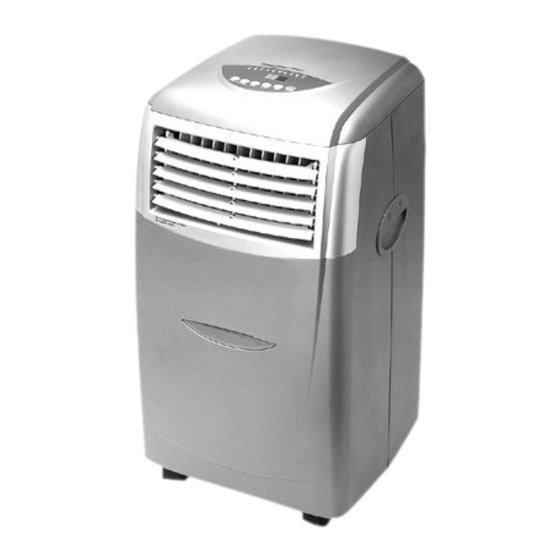

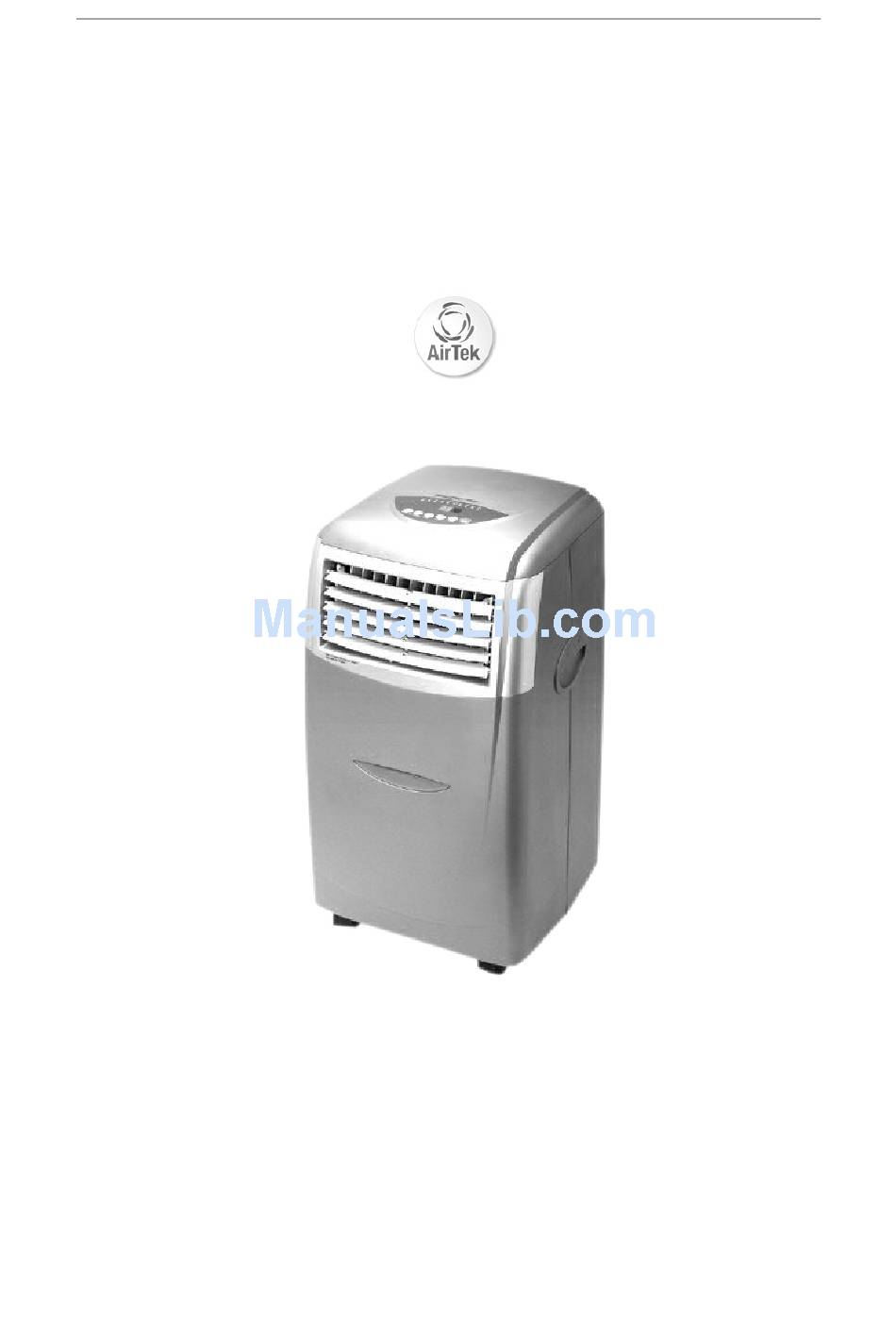

- Page 1 MOBILE AIR CONDITIONER INSTRUCTION MANUAL (Digital model) IMPORTANT: Please read these instructions carefully before use. Due to continuous research and development the specifications herein are subject to change without notice.
-
Page 2: Table Of Contents
Installation ............................7 Operation ............................10 Control panel ............................. 10 Drainage ............................15 Maintenance ............................16 Trouble shooting ..........................18 Service &warranty ..........................20 Specification SPECIFICATION Model # MOB-10KDCR MOB-10KDCHR Cooling capacity 10000BTU/hr 10000BTU/hr Heating capacity 10000BTU/hr Power consumption for 1100W 1100W... -
Page 3: Before Use
noise level <=54dbA Power supply 220-240VAC/50Hz/1 phase Compressor Rotary Refrigerant R-407C Refrigerant load* 450g 430g Fan speed Timer 1-12 hours Thermostat* 16-31 ℃ Net weight 32kg 33kg Product dimension 37.7 × 38.5 × 75 cm Carton dimension 44.5 × 53.5 × 76.5 cm REMARK: 1. - Page 4 the risk of shock. (Fig.3) DO NOT bend or crush the exhaust hose while in use. 14. DO NOT sit or place articles on the unit. DO NOT touch the unit with wet or damp hands or with bare feet. 16.
-
Page 5: Parts
Energy Save 1. Please use the unit in the recommended room size (Please refer to the SPECIFICATION.) 2. Do not locate air conditioner where furniture or other objects can obstruct the air flow. 3. Keep blinds/curtains closed during the sunniest part of the day. Close the fireplace damper, floor and/or wall grilles, so cool air does not escape through the chimney or duct work. - Page 6 Rear view 1. Air filter 2. Exhaust air port 3. Cord wrap around hooks 4. Wheels 5. Water stopper (rubber plug inside + drain cap outside) Accessories (1)Drain hose (2) Foam strip-for filling the open window space and continuous drainage with hole for connection to exhaust hose.
-
Page 7: Installation
Installation Mounting of the exhaust hose This unit is a mobile air conditioner, it can be moved from room to room so the cooling can follow you anywhere. The mounting is easy，please refer to either of the following methods: (1) Using the foam strips (Temporary Mounting) Foam strips (optional) Adapt or... - Page 8 Round adapter The complete set of extendable plastic window panel comes in 3 pieces. The length of the panel can be extended to suit the window space. Place the plastic window panel on the window space. Install the round adaptor to the hole on the panel. Connect the exhaust hose through the hole on the panel allowing the exhaust air flow outside the room.
- Page 9 round adapter cap over the hole. Note: The supplied exhaust hose can be extended from 370mm to 1500mm. It is recommended to use the hose in the shortest possible length. 2. Prevent any bow or bend (to the extent as shown in fig.9) in the middle of the exhaust hose, as this will trap exhaust air which will radiate into the room and cause the unit to shut off automatically.
-
Page 10: Operation
Operation Control panel LED Indicator 1. “ST” Set temperature 2. “RT” Room temperature 3. “LO” Low fan speed 4. “HI” High fan speed 5. “AUTO” Auto function 6. “COOL” cooling function 7. “DRY” Dehumidification function 8. “FAN” (for the model without heating function) / “HEAT” (for the model with heating function) 9. - Page 11 OPERATING AND FUNCTIONS Plug the air conditioner into a suitable socket.(refer to the rating label) The compressor is an essential element in the production of cold air. The appliance is fitted with an overheating feature that delays start up by three minutes. To protect the compressor from overheating or freezing, the compressor will only operate when the room temperature is between 16°C-36°...
- Page 12 "RT" (Room Temperature) LED light: The light comes on when the current room temperature is shown. "LO" LED: The light comes on when the low fan speed is selected. "HI" LED: The light comes on when the high fan speed is selected. "AUTO"...
-
Page 13: Remote Control
on or changing modes. For the unit with heat function this product is also equipped with a de-frost function. When using the heating function at low ambient temperature, the heating might be interrupted briefly to melt the frost. If this happens, just wait for the heating mode to pick up again. - Page 14 1. LCD Display 2. Mode selection button: Press this button to select AUTO , COOL , DRY or HEAT functions (for the unit with heat function) 3. Temperature UP and Down setting buttons: Press "+" to increase temperature; Press "-" to reduce temperature. 4.
-
Page 15: Drainage
Drainage When the product is in cooling mode, dehumidification will be performed simultaneously, during this process water will be accumulated inside the product. When the water reaches the preset level, the compressor will stop and only the fan will operate. The Alarm indicator(“ start to flash, the unit will RUN”... -
Page 16: Maintenance
1. drain hole(rubber plug inside); 2. drain cap 3.drain hose 4.drain tray Drain Hose 1. Remove the drain cap and rubber plug from the drain hole. 2. Connect the drain hose to the drain hole allowing the water to drain out to a desired location. -
Page 17: Long Term Storage
• Never use aggressive chemicals, petrol, detergents, chemically treated cloths or harsh cleaning solutions – these may cause permanent damage to the external surface. Cleaning the filter The air filter located on the back of the unit, collects dust contained in the air. To keep the dust from clogging the unit, your unit must always be used with its air filter. -
Page 18: Trouble Shooting
Trouble shooting If the air conditioner is not working properly, it is usually due to a minor problem that the user can handle. Before calling customer service, please check the following points. Problem Probable Causes Solutions The air conditioner 1. Plug not properly inserted 1.Plug the appliance in properly. - Page 19 The LED display shows The "timer on" feature is This is normal. Push the Power activated. button to turn the unit on and the unit is set but it is deactivate the "timer on" feature. not running. "E1" Displayed on LED Evaporator sensor fault.
-
Page 20: Service &Warranty
Please note The Earth Terminal is marked with letter E or Earth symbol. Service &warranty...
