Summary of Contents for Adimec Quartz Q-12A180F

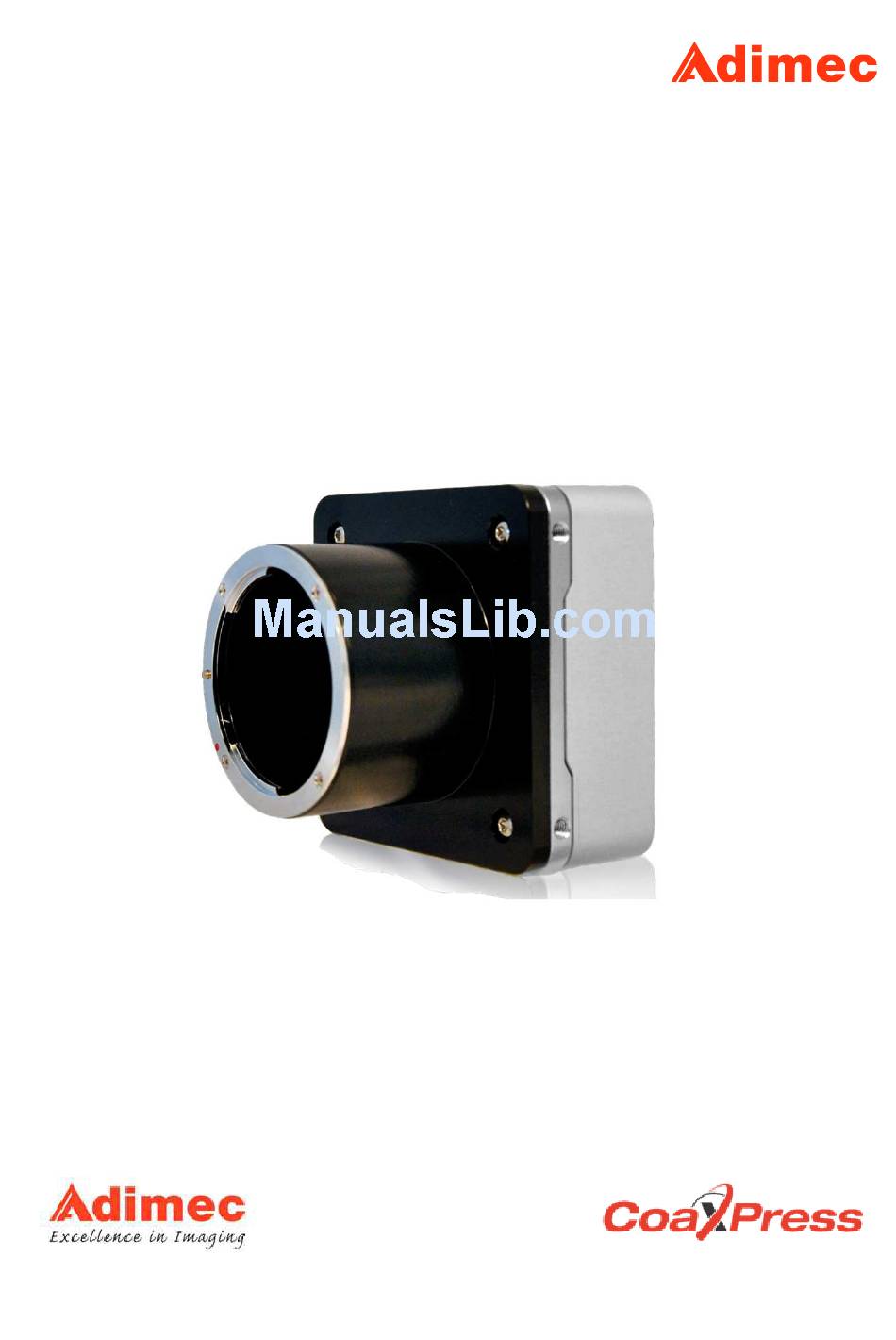

- Page 1 OPERATING AND USER MANUAL ________________________________________________________________________________________________________________ Operating and user manual Q-12A180F rev0.1...
-
Page 2: About Adimec
Adimec is the only company in the market that weds the specific needs of its highly demanding customers to its technological inventiveness, generating vision solutions of exceptional quality. These industry-leading customer specials are the models for our standard products. -
Page 3: Table Of Contents
ONNECTOR OVERVIEW ..................10 LECTRICAL INTERFACE RESS 3.2.1 Power........................11 3.2.2 Video, control and trigger ................... 11 3.2.3 Adimec Service Port ....................11 – ................11 LECTRICAL INTERFACE STROBE AND TRIGGER ........................13 INDICATORS ..........................13 UICK START FUNCTIONAL DESCRIPTION ......................... 14 ......................... -
Page 4: Adimec
OPERATING AND USER MANUAL Q-12A180F ________________________________________________________________________________________________________________ 5.2.20 Dark field ........................34 5.2.21 Bright field ......................... 35 5.2.22 User set control ......................36 _________________________________________________________________________________________ Adimec... -
Page 5: General Introduction
In this manual we use the following standard symbols in the left margin to draw your attention: NOTE: Practical tip or note 1.3 Standards CoaXPress Standard Version 1.1 – JIIA CXP-001-2013 • CoaXPress Standard Version 1.0 – JIIA CXP-001-2010 • GenICam V2.3.1 • SFNC V2.0 • _________________________________________________________________________________________ Adimec... -
Page 6: Liability
________________________________________________________________________________________________________________ 1.4 Liability Adimec puts in a lot of effort in preparing this manual. Please inform your Adimec Business Office of any inaccuracies or omissions. Adimec Advanced Image Systems B.V. cannot be held responsible for any technical or typographical errors and reserves the right to make changes to the product and manuals without prior notice. -
Page 7: Precautions
NOTE: that damage of the CMOS sensor due to scratches on the cover glass or electrostatic discharge (ESD) is not covered by warranty! The correct working environment for cleaning is essential in order to ease cleaning and to prevent damage of the CMOS sensor. _________________________________________________________________________________________ Adimec... - Page 8 3. Clean the CMOS sensor cover glass using Alcohol or Hexane and a Q-tip. Gently and carefully rub the window always in the same direction, e.g. top to down. 4. Install the lensmount back on the camera front. Maximum tightening force may not exceed 0.6 Nm. _________________________________________________________________________________________ Adimec...
-
Page 9: Cleaning Of The Camera
No specific maintenance other than cleaning is applicable. 2.2.5 Repair and modification Repair, modification and replacement of parts shall be done only by Adimec to maintain compliance with the directive 89/336/EEC electromagnetic compatibility and directive 72/23/EEC low voltage directive and the international standards. -
Page 10: Installation Hardware
The camera has 4 DIN1.0/2.3 connectors for the CoaXPress interface which serve the purposes listed in the table below. Refer to Table 3-3 for details on the CXP data rate configurations. CXP connection Interface functions Video, power, control, triggering Video Video Video Table 3-2: Functionality per CXP connection _________________________________________________________________________________________ Adimec... -
Page 11: Power
Table 3-3: Maximum cable length per CXP configuration For a complete description of the CoaXPress interface please refer to the CoaXPress specification. 3.2.3 Adimec Service Port The ASP interface is available for firmware uploads to the camera. USB driver XR21x141x is required to support communication via the ASP port. - Page 12 R2E ext [Ω] 1000 1000 Do not apply 2000 2000 4700 4700 Table 3-5: Recommended register values Recommended register values Figure 3-3: Recommended terminations strobe output and trigger input : Recommended terminations strobe output and trigger input _________________________________________________________________________ _________________________________________________________________________ _________________________________________________________________________________________ Adimec...
-
Page 13: Led Indicators
Exposure mode Continuous Output resolution 10 bit Table 3-8: Factory default interface settings Note: Contact Adimec for more detailed information about above procedure if required. There are quick install guides available for a couple of frame grabber manufacturers. _________________________________________________________________________________________ Adimec... -
Page 14: Functional Description
BLC: The Black Level Clamp function clamps the black level per line using the dark reference columns if this function is enabled. _________________________________________________________________________________________ Adimec... - Page 15 The video data is mapped into the packed CXP format for sending data according to the CXP protocol. The output resolution can be set to 8 bit or 10 bit by user command. The output format can be set by user command. Both CXP 1.0 and 1.1 formats are supported and can configured. _________________________________________________________________________________________ Adimec...
-
Page 16: Control Of The Camera
Gain feature and to check whether the new value is consistent with the allowed Gain range. This register message is transmitted via the CoaXPress protocol and interpreted and applied inside the camera. _________________________________________________________________________________________ Adimec... -
Page 17: Structure Of Camera Control
Entry in a tree, structuring the camera features in the XML file. The features are categorized and grouped according to Categories. Table 5-1: Overview of parameter interfaces 5.2.5 Parameter access This parameter indicates if the user can Read (RO), Write (WO) or Read/Write (RW) the parameter. _________________________________________________________________________________________ Adimec... -
Page 18: Parameter Visibility
In this manual, for each setting and function the visibility is indicated by the letter B (beginner), E (expert) or G (guru). 5.2.7 Parameter default and range For each parameter it’s range and default value are listened. NOTE: The default value is not stored in the XML file but in the camera itself. _________________________________________________________________________________________ Adimec... -
Page 19: Bootstrap Coaxpress Registers
I RW G Provides the address in the manufacturer-specific register space of the feature with the corresponding name. AcquisitionModeAddress 12296 4 I RW G Provides the address in the manufacturer-specific register space of the feature with the corresponding name. Table 5-2: Bootstrap CoaXPress registers _________________________________________________________________________________________ Adimec... -
Page 20: Device Control Registers
Table 5-4: Device control registers The status and firmware versions of the camera can be read back in the device control registers group. It’s possible for the user to disable the LED status indicators with the DeviceIndicatorMode register. _________________________________________________________________________________________ Adimec... -
Page 21: Image Format Control Registers
Note: *Selection of one of the 4 Bayer phases is arbitrary. The pixel format code in the CXP stream image header however will report the code for correct phase to be used by the Host for color decoding. Associated Bayer phase registers are: PixelFormat, ReverseX and ReverseY. Acquisition must be stopped when changing the pixel format. _________________________________________________________________________________________ Adimec... - Page 22 If the ReverseX and ReverseY functions are activated, the Bayer phase changes (PixelFormat) according to the table below. ReverseX ReverseY Bayer phase PixelFormat GBRG BayerGB8 / BayerGB10p RGGB BayerRG8 / BayerRG10p BGGR BayerBG8 / BayerBG10p GRBG BayerGR8 / BayerGR10p _________________________________________________________________________________________ Adimec...
- Page 23 The test image is reshaped when a different width and/or height is set In the figure below the Adimec test pattern is defined in 10 bit pixel resolution with black is 0 and white is 1023. Figure 5-3: Adimec Test Pattern visualization...
-
Page 24: Acquisition Control
The frame period equals the integration time. TimedTriggerControl Camera is slave: Start of integration time is determined by the start of the trigger, the integration time is fixed and can be controlled via the ExposureTime register. Table 5-10: Exposure modes _________________________________________________________________________________________ Adimec... - Page 25 The interface utilization parameter is available to decrease the data throughput in case the host system cannot sustain the data rate. Example: 50% utilization factor is a doubling of the readout time of one line with respect to the fastest line readout period (100%). _________________________________________________________________________________________ Adimec...
-
Page 26: Counter And Timer Control
I RW E Sets the level of the multislope node. 1 to 100 (increment: 1) MultiSlopeTime 41792 4 I RW E Sets the time of the multislope node. 1 to 99 (increment: 1) Table 5-14: High Dynamic Range registers _________________________________________________________________________________________ Adimec... - Page 27 An example of the HDR mode disabled and enabled is shown in Figure 5-6. This example shows clearly that the multi slope allows for contrast in the lamp which is with a normal linear response saturated. Figure 5-6: Image of fluorescent light with normal operation (left) and multislope function enabled (right). _________________________________________________________________________________________ Adimec...
- Page 28 The intermediate 2 multi slope levels and 2 multi slope times are expressed as a percentage from the normal saturation level and integration time. The node points are configurable by sequentially selecting them with the MultiSlopeNodeSelector. MultiSlopeLevel and MultiSlopeTime are read and written for the selected node. _________________________________________________________________________________________ Adimec...
-
Page 29: Analog Control
1000 – 4000 Table 5-17: Gain 5.2.14.3 Black Level raw The average black level can be set with the BlackLevelRaw register with a range from 0 to 511 in units of 1 digital number at 10 bit data resolution. _________________________________________________________________________________________ Adimec... -
Page 30: Sensor
8 bit per pixel if a frame rate higher than 150 fps is required at full resolution. In the 8 bit resolution the maximum achievable frame rate is 187 fps. When 10 bit per pixel is selected the image quality is slightly better as compared to 8 bit ADC mode. _________________________________________________________________________________________ Adimec... -
Page 31: Factory
Too much LUT entries (LUTValue) written before LUTEnd command is written LUT_NotEnoughEntries Not enough LUT entries (LUTValue) written before LUTEnd command is written LUT_Stored LUT programming sequence finished and stored in memory LUT_NotStarted LUT programming sequence started Table 5-23: LUT status register _________________________________________________________________________________________ Adimec... -
Page 32: Transport Layer Control
A defect pixel correction is available that replaces a defect pixel by a horizontally interpolated value or a vertically interpolated value or a horizontal nearest neighbor value depending on the local defect distribution. Adimec does not release cameras with more than 1 adjacent defect pixel upon delivery. However, additional defect pixels can be user-programmed. - Page 33 Defects that were added by the user and have not been saved are lost. Clear defect list Execute DefectPixelClearAll to clear the defect pixel list. Table 5-26: Defect pixel functions It’s not possible for the user to execute the DefectPixelSaveFactoryDefault, this function is only accessible in the factory mode. _________________________________________________________________________________________ Adimec...
-
Page 34: Dark Field
(SensorBitDepth in combination with the selected ProgrammableGainAmplifier) Table 5-28: Dark field calibration It’s not possible for the user to execute the DF_SaveAsFactoryDefault, this function is only accessible in the factory mode. _________________________________________________________________________________________ Adimec... -
Page 35: Bright Field
The bright field calibration measures and compensates for the PRNU (pixel response non-uniformities) in between columns. This correction is factory calibrated and can be re-calibrated in the field. In total there are 8 different calibration sets stored: for each ProgrammableGainAmplifier step (4 in total) in both SensorBitDepth modes. _________________________________________________________________________________________ Adimec... -
Page 36: User Set Control
Loads the User Set specified by UserSetSelector to the device and makes it active. UserSetSave Save the User Set to the non-volatile memory of the device. This is only possible for the user if UserSet1 of the UserSetSelector register is selected. Table 5-31: User set control _________________________________________________________________________________________ Adimec... - Page 37 OPERATING AND USER MANUAL Q-12A180F ________________________________________________________________________________________________________________ _________________________________________________________________________________________ Adimec...
