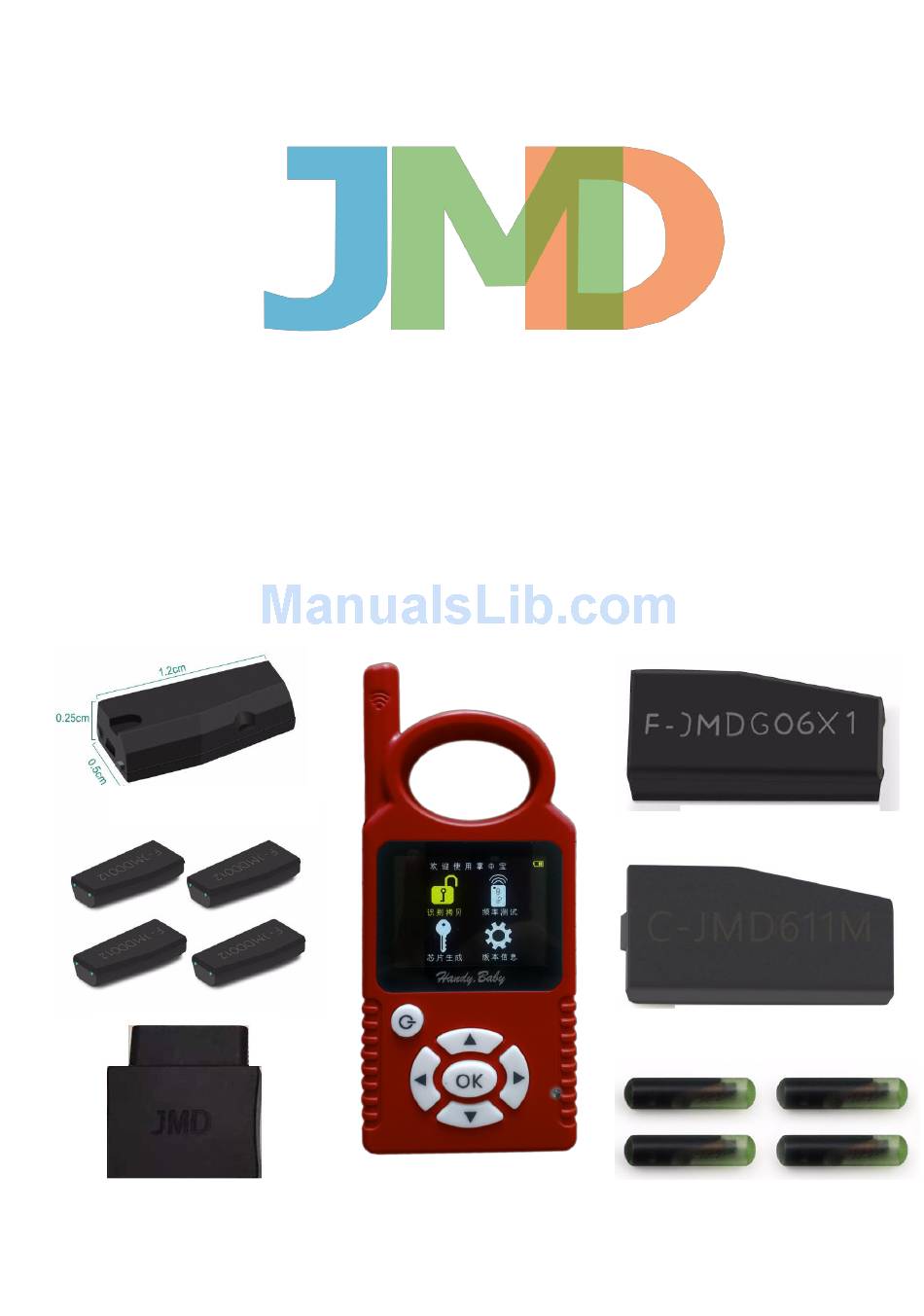

- Page 1 JMD Handy-Baby User Manual Car Key Programmer F-JMDD( 4D chip) F-JMDG (G chip) C-JMD6( 46 chip) Handy Baby KeyProgrammer F-JMD8( 48 chip) OBD Assistant by VW Directly copy another key and support all key lost solution(JMD Chip,46, 4D, 48, G)
- Page 2 5) Able to generate 46 chips for Su-zuki, CHANG-HE (Support generating original 46 chips) 6) Able to generate Ho-nda 47 (Hi-tag 3) chip 7) Able to copy V-W 4 48 chips (need JMD Baby Assistant Adapter) Software V7.0 functions: 1) Able to simulate the 4D chip including 4D60/61/62/63/64/65/67/68 /6A/6B/71/60 Plus/ 63 Plus/ 72G 2) Read more types of transponder 3) Able to generate for G-M ID46;...
- Page 3 10. Frequency and modulation mode test(remote) 11. ECU signal/data stream of ID46/key type (all lost) detect 12. Update online Key Copy Programmer Recognize and Copy: Recognize: Recognize chip 13, 40/41/42/44/45, 4C/46/48, 4D61/62/63/67/68/68 Plus F/71. Able to tell if 48 chip is from original or deputy factory. Copy: Copy 46, 4D and a partial of original 48 I.E Bui-ck Excell-e, you have to use special GMT46/4D Chips, ID48 chips which can change ID.
- Page 4 Handy Baby Key Copy Programmer Initialize: Please use with caution: only available for JMD46 / 4D and revisable UID48 chip. The data won’t be restored after the chip erased. Handy Baby Key Copy Programmer Test Frequency: Steps to test the key remote frequency: Enter program, make key close to the surface of left button, meanwhile press remote button, then the frequency will display.
- Page 5 2. Select chip mode: move mouse cursor to "Mode", I.E "Plaintext mode", press "OK", the fonts turn black from white to indicate the selection mode, press "Up" and "Down" to select the Plaintext mode or password mode. 3. Enter password: move cursor to the password box under the mode, press "OK" to proceed, press "Up" and "Down"...
- Page 7 PCB Display...
- Page 8 Update Steps Q&A about Upgrating 1) How to upgrade to the latest version? A: To download update software from official website. 2) Can't open update software. A: Your computer hasn't install upgrade software driver, please download it from official website and install it. 3) Can't see serial port (isn't com0) when opening update software, and can't upgrade.
- Page 9 A: Handy baby upgrading needs to install Serial port driver software, please download from official website. Installation steps: right click on "my computer" -> "Device manager" ->"Port(COM and LPT)", next and find out "CP201X" and right click -> open update driver software-> find out driver software in your computer-> next and finish.
- Page 10 : Decoding success and clone new : JMD special chips (C-JMD6, F-JMDD,F-JMDG,C-JMD48) to copy : Could copy so much if you need just put new JMD chip All JMD special chips could rewrite The difference chips type decoding icon: Type 48...
- Page 11 Type 4D Type 4C / 42 / 83 / G / 70 (Ignore here) Please JMD Handy Baby Device or Contact Sales Service. Signal-test Remote and ECU detector: *Remote control frequency detect (remote need near by left button *Ignition ECU detect...
- Page 12 “OK” choice and Chip generate and simulation edit Type 46: 46 Chip: * JMD-46 put into Identification antenna and push “OK” * If you haven’t G-Wall chip , you can used handy-baby to simulation Etc... Any question keep a touch sales service...
- Page 13 Type 48 48 Chip: (Only supports vice 48) Type T5 T5 Chip: 11/12 support T5 13 support T5/ATA5577/EM4305 33 support T5/PCF 7930/31 Type 47 Type 47 currently only support blank 47 CHIP TRANSFER This function is transfer Mazda (Chang ’ an)/ Ford , Ford (USA) and Mazda (Imported)
- Page 14 3th: , observation dashboard lamp light up again and pull out assistant Assistant on the antenna, press “OK” to read Handy-Baby OBD Assistant (Please see assistant user manual) Don’t worry car broken down, just offline download data by OBD assistant. Basic-info Basic information: *Hardware ID *System Version (The Latest version 8.0.0)
- Page 15 Part No. : C-JMD6(46) , F-JMDD(4D) , F-JMDG(G chip) Product: Wedge Here will show which one type chips G = G chip(wedge) 6 = 46 chip(wedge) D = 4D chipwedge) 8 = 48 chip(glass tube have coating) Mechanical dimension Type Wedge Dimension 6.0mm x 12.0mm ( W x L )
- Page 16 Contact us: Wechat ID: 18825300027 QQ ID: 2124116615 WhatsApp ID : +8618825300027 Mail : m18825300027@163.com...
