Summary of Contents for Jotto Desk A-MOD

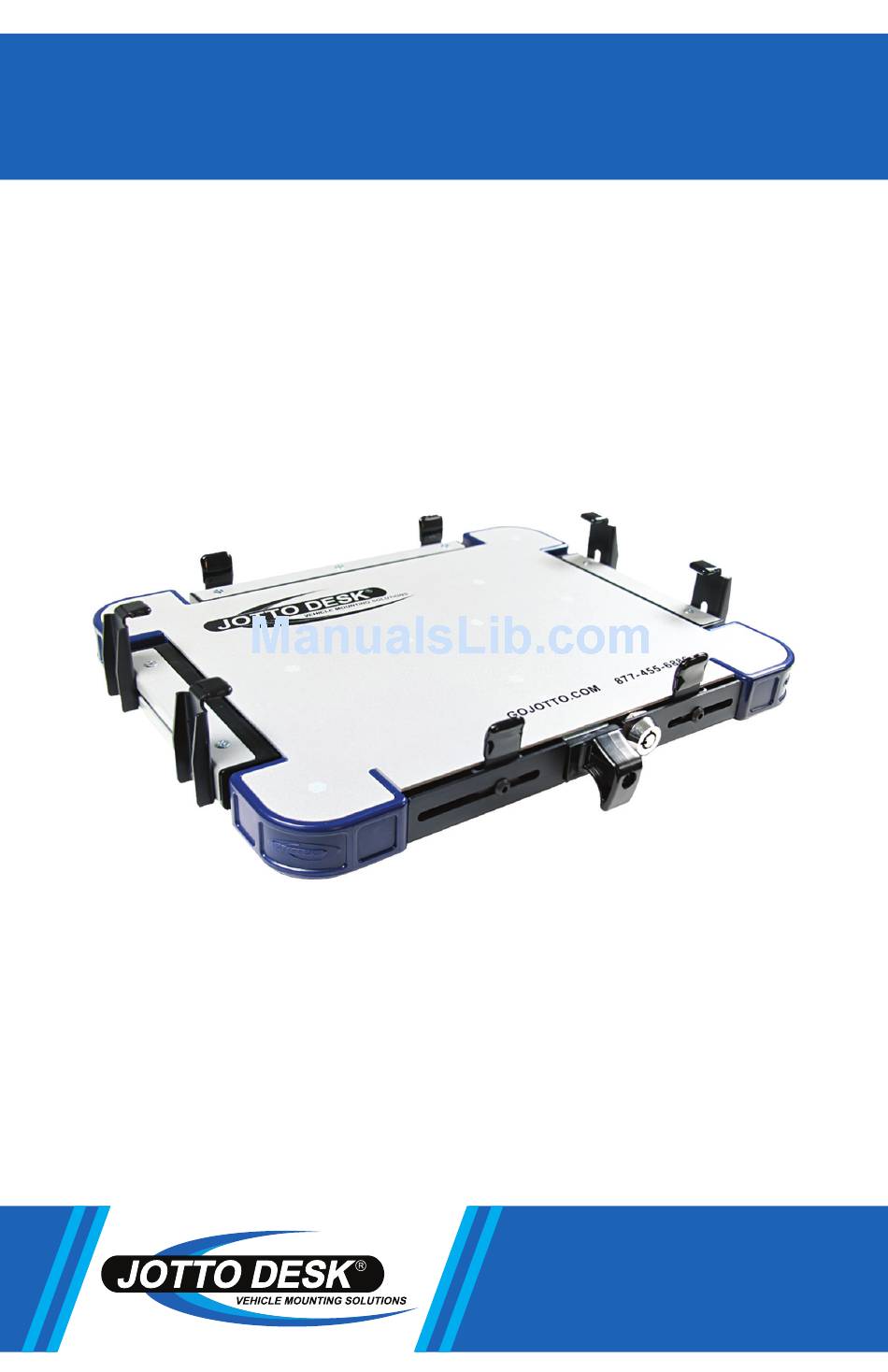

- Page 1 A-MOD DESKTOP OWNER’S MANUAL GOJOTTO.COM 877-455-6886...
-
Page 2: Product Specifications
IMPORTANT NOTICE: Please take a few minutes to read through this Owner’s Manual before using the product to ensure that your A-MOD Desktop will be operated correctly. Use 1/4-20 x 3/8” bolts to secure A-MOD Desktop to mounting plate. For additional information or if you have questions regarding... -
Page 3: Product Customization
Scan This QR Code To Watch A Tutorial Video of These Steps. 2.) Begin by turning the A-MOD Desktop over and loosen (but do not remove) the (4) Side Tray Adjustment Screws, which are located on the bottom tray as shown in the image below. - Page 4 Side Clamp and laptop surface. NOTE: If the Side Clamps on your A-MOD Desktop do not slide over the edge of your laptop, you can request an alternate set of Side Clamps from Customer Service at 877-455-6886. Once received, use the steps below to install your new Side Clamps.
- Page 5 All Side Clamps should be pushed as low as possible and touch the top edge of the laptop. NOTE: If, after lowering all the way, the Side Clamps on your A-MOD Desktop do not touch the top of your laptop, you can request an alternate set of Side Clamps from Customer Service at 877-455- 6886.
- Page 6 (continued from page 5) 7.) Complete the customization with Rear Tray adjustments. Once again turn the A-MOD Desktop over and now loosen (but do not remove) the Rear Tray Adjustment Screws on the bottom panel indicated in the image below. Slide the Rear Tray inward until the rear tabs touch the laptop.
-
Page 7: Product Operation
PRODUCT OPERATION: Once fi t is confi rmed, install the A-MOD Desktop in your vehicle on your Jotto Desk mount. To lock the laptop on the A-MOD desktop, place laptop on the A-MOD Desktop and slide the Side Trays inward until latched and the Side Clamps are touching the laptop. -
Page 8: Parts & Hardware Guide
11.) Strain Relief Holes 5.) Side Trays 6.) Rear Tray 7.) Lock INCLUDED HARDWARE: 12.) Scratch Guard Bumpers 13.) Offset Rear Clamps 14.) Strain Relief Cables 15.) Barrel Keys 16.) Hex Key JOTTO DESK • 209 W. EASY STREET, ROGERS AR 72756 450-0263...
