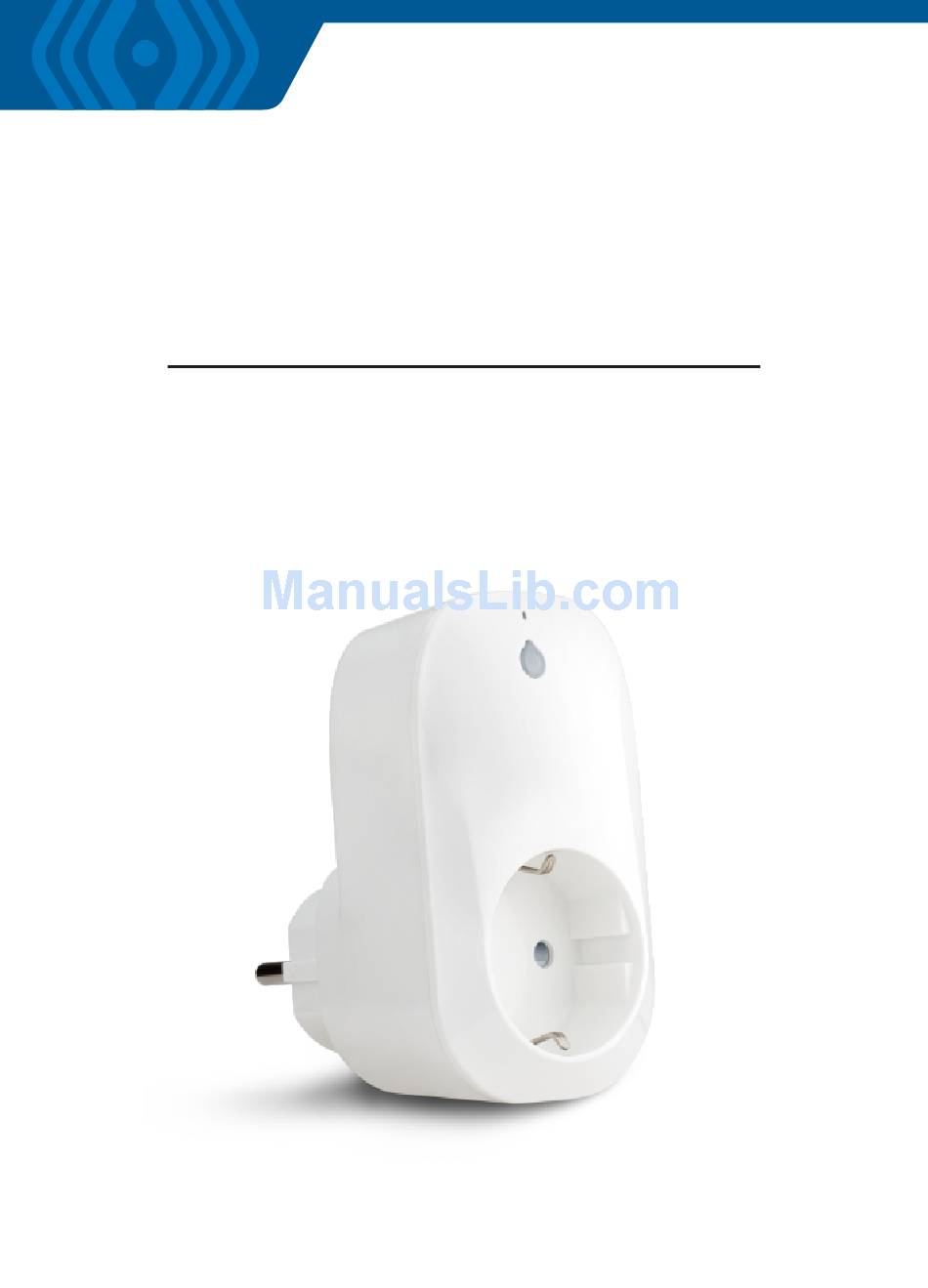

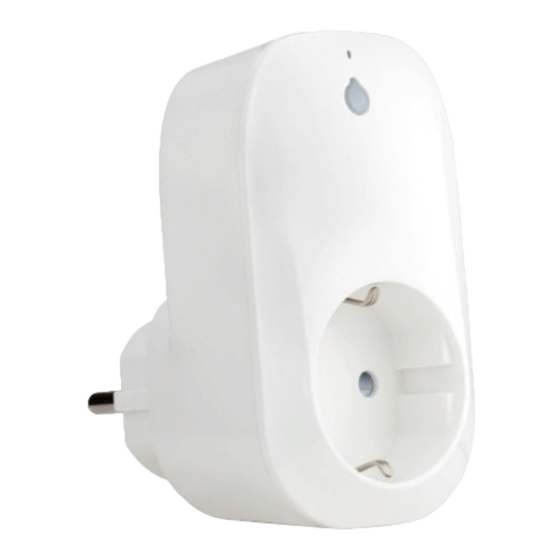

  • Page 1 User's Manual Smart WiFi plug Model: S171...

  • Page 2: Table Of Contents

    TA B L E O F C O N T E N T S 1.Profile--------------------------------------------------------1 2.Safety Precautions---------------------------------------4 3.General Specifications-----------------------------------5 4. Introduction---------------------------------------------5 5.Install Guide------------------------------------------------7 6.Configurations steps-------------------------------- 7 7.Reset or delete the APP of WiFi plug----------------16 8.Descriptions of access control-----------------------17 9.Setupa scene---------------------------------------------17 10.Electricity statistics----------------------------------20 11.

  • Page 3: Profile

    1.Profile The smart WiFi plug is controlled via an APP installed in an Android or IOS smart phones or tablets, user can local or remote turn ON/OFF the device with WiFi signal and telecom mobile network signal provided and internet access be available.
  • Page 4 Offices, factories, residential intelligent control Internet 1.2 Wiring diagram...
  • Page 5 1.3 Diagram of how the plug is connected Cloud Internet 1.4 Features Elegant Design Easy Operation Unique knowhow Security Quick Setup AP mode Remote Control Timer Function Multi-user Max 3500W load Power Metering Overload Protection...

  • Page 6: Safety Precautions

    2.Safety Precautions To avoid any risk of unexpected harm or injury or damage to ● plug, please read the manual thoroughly before operation WiFi and keep it carefully for future reference. Users should always comply with the safety precautions. This device is powered up and operated with voltage in ●...

  • Page 7: General Specifications

    3 . G e n e r a l S p e c i fi c a t i o n s Wireless Standard IEEE802.11b/g/n Operation Frequency ISM band, 2412~2483.5MHz (Depends on country region). Mac Encryption; WEP,WAPI,TKIP and AES Security Operating current&Voltage 16A 250VAC Output Load...
  • Page 8 4. Plug input 56 mm 4.1 Function descreptions Function Details 1.LED blinks when WiFi connected successfully. WiFi indicator 2.LED flash rapidly when WiFi connection failed or connected abnormal. 1.In need to manually power control, once press the button to turn on, twice press to off. 2.To reset factory default, press the button about 5 seconds till LED flash rapidly.

  • Page 9: Install Guide

    5. Install Guide The following hardware devices are necessary before configuration Properly functional WiFi router. APP devices like mobile phone, tablet etc(Android and IOS). 6. Configurations steps 6.1Firstly, download the APP onto your APP devices like mobile phone or tablet, Scanning the following QR code, and download it directly.
  • Page 10 6.1.2 Some QR code APP might not be able to recognize the above of QR code.Please change another APP any try again. Check whether mobile phone or tablet is connected to a WiFi router properly as shown in the following figure. Please noted the interface and function of mobile phone or tablet may be different.
  • Page 11 Client mode: Please reset the WiFi plug to factory defaults at the first time using or the WiFi network is changed. 6.4.1 Reset to factory defaults: Insert the WiFi plug into a proper power outlet, when the blue indicator flash normally, press the button on WiFi plug for about 5 seconds till the red indicator blink rapidly, release the button to finish client mode configuration, all these reset the WiFi plug to its factory default settings.
  • Page 12 6.5.1 Depending on the status of the current WiFi network, the whole configuration process takes about 3 ~ 30 seconds.If the connection is successful, the APP interface displays"A new device is added" or "Some devices are online, no newly-added device founded". 6.5.2 New device is added : means new equipment is successfully added.
  • Page 13 6.5.4.7 Several devices may try to connect the router at the same time.Unplug the WiFi plug for about 10 seconds, then plug it into a socket to power up again, if it is still abnormal, rest it to Factory Settings. 6.5.5 After a device is successfully added, goes back"...
  • Page 14 Internet: the current mobile phone or tablet and WiFi plug areconnected via some extra internet network loops rather within a router coverage, the following figure shows the topology. Cloud Internet Internet WiFi Off-line: it means the current mobile phone or tablet and WiFi plug are unsuccessfully connected, the plug can be controlled.
  • Page 15 Lock: Only administrator is permitted to control; Unlock: Related members are all allowed to control. Control key：control the three states Turn on Turn off Under way 6.6. Control over Internet rather than LAN mode. 6.6.1 Connect the mobile phone or tablet to power plug via different WiFi or cell phone network, exit the Settings menu.

  • Page 16: Reset Or Delete The App Of Wifi Plug

    Direct connection (Hotspot/AP) mode: Should the blue LED of WiFi plug flashes normally, press down the button for about 10 seconds rather than 5 seconds, LED flashes from blue quickly flashes in red slow flash in red, then release button to enter into AP mode. Change WiFi connection setting of the mobile phone or tablet, connectit to WiFi plug network (Hotspot) with a name as “Weconn****, exit setting page after successful connection,...

  • Page 17: Descriptions Of Access Control

    Press internet or off-line list 2 seconds into the choose menu 8.Descriptions of access control This column indicate the current status of the mobile phone or tablet Editable device name This “Online” indicates connection is normal, otherwise it means disconnection. MAC address of the mobile phone or tablet The current membersin loop are shown...
  • Page 18 Add scenes Tap to choose taking a photo or selecting a scene picture from the photo album. Tap to edit a name for the scene Tap to enter the devices selecting page Select the device and save Confirm...
  • Page 19 1) Turn right to turn ON the WiFi plug then save. 2) Turn left to turn OFF the WiFi plug then save. Tap to turn ON/OFF the WiFi plug Successful operation indication.

  • Page 20: Electricity Statistics

    Press list for 2 seconds, comes into the choose menu. Press list for 2 seconds, comes into the choose menu. 10.Electricity statistics Enter the equipment selection...

  • Page 21: Faq

    Choose and save 11. FAQ 11.1. WiFi control app going crashed? Answer: Please cancel the WiFi plug power supply for about 10 seconds, and then re energized Reset the WiFi plug 11.2. Cannot log in the app? Answer: Check whether your APP meets Android and IOS operating system.
  • Page 22 ____day___month___year...
