Turn On –
Turn Off –
SET Needle –
Sensitivity –
Counter Enable –
Zero Counter –
LEDs –
mw2A meter instructions Issue 1.0
mindwalker 2A Meter User Manual

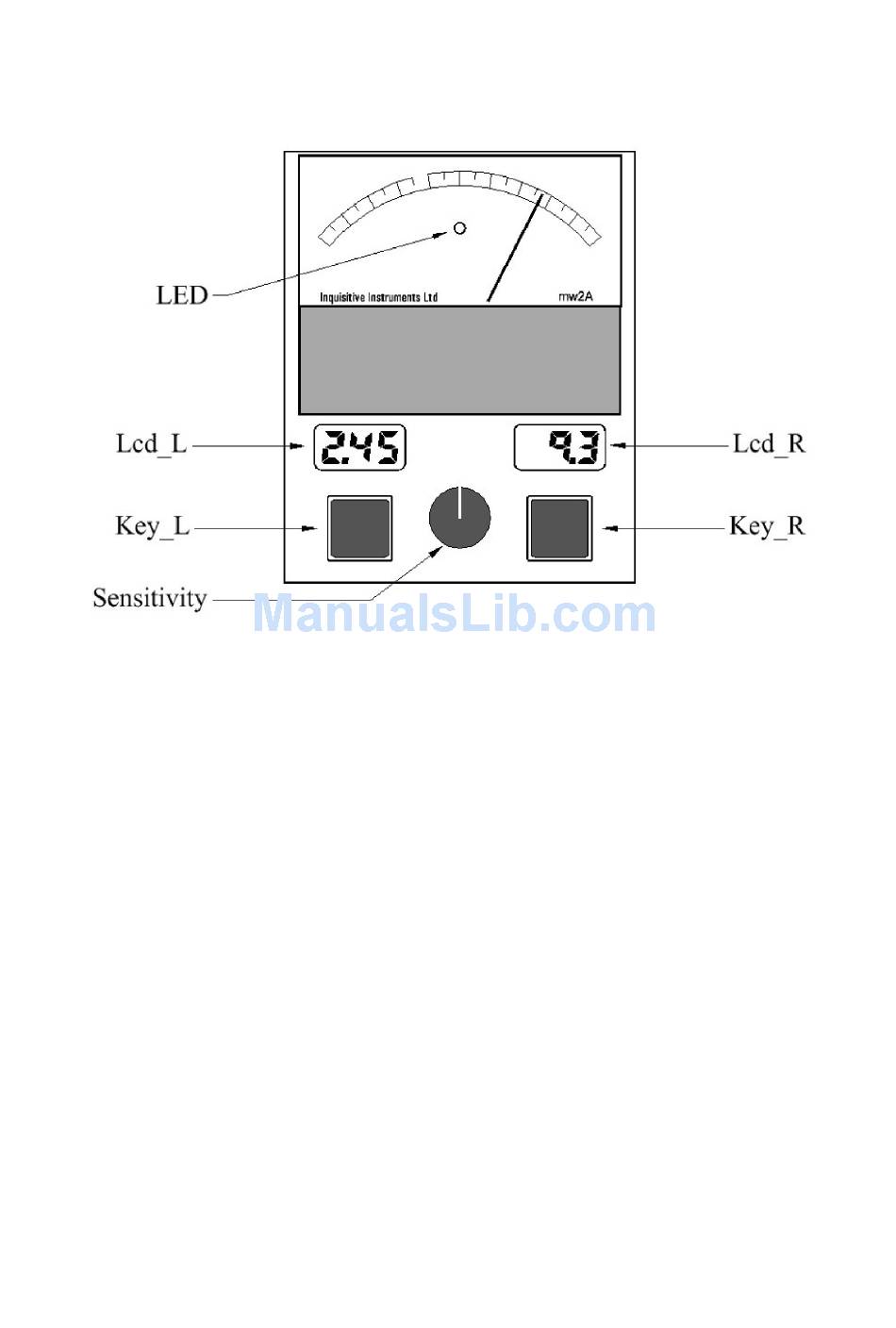

Quick Start Guide
Press Key_L
Press and hold Key_R until meter turns off. Meter will automatically
turn off after 1 hour of inactivity.
Press Key_L.
Turn knob, Lcd_L momentarily shows sensitivity setting. Also press
and hold Key_L to display sensitivity setting at any time.
Press Key_R to toggle counter on/off. When off, Lcd_R will
flash.
Press and hold Key_R until counter shows zero.
Green = needle SET in progress
Blue = Body Motion detected
Page 1
Issue 1.0
th
15
December 2013
Advertisement
Table of Contents
Summary of Contents for mindwalker 2A
- Page 1 2A Meter User Manual Issue 1.0 December 2013 Quick Start Guide Turn On – Press Key_L Press and hold Key_R until meter turns off. Meter will automatically Turn Off – turn off after 1 hour of inactivity. Press Key_L.
- Page 2 Detailed Operation Turn on sequence Press Key_L. The green LED illuminates and the firmware version is shown (F on left, version number on right). After 2 seconds the green LED will turn off and the needle will SET. The Lcd_L will briefly show sensitivity setting and then TA position.
- Page 3 TA Counter A flashing display indicates that the counter is disabled. The counter enable/disable can be toggled by pressing Key_R. To zero the counter, hold down Key_R for 2 seconds. Counting is inhibited by the Body Motion Detector. If Body Motion occurs causing the needle to go off the right hand side of the dial, the counter will be disabled during the next needle SET.
-
Page 4: Firmware Upgrade
Batteries The meter runs on 2 AA alkaline batteries. A low battery condition is indicated at turn on by the red LED illuminating and L o appearing on Lcd_L. To continue using the meter, press Key_L, and replace the batteries at the next opportunity. Batteries should be inserted with positive end towards the removable cap. -
Page 5: Setup Mode
Setup Mode This mode is entered by holding down Key_L for 2 seconds when turning on the meter until the green LED turns off (2 seconds) Lcd_L and Lcd_R will display all segments. Cycle through the settings in this order by pressing Key_R. Green LED brightness Blue LED brightness Red LED brightness... -
Page 6: Specifications
Specifications Dimensions 14 cm x 11 cm x 6 cm Weight 525 gm Connectors Standard 1/4” 2 pole Jack Socket for electrodes USB Socket for computer connection (future option) 3.5mm 3 pole Jack Socket ( future options yet to be documented) Batteries 2 x AA 1.5V Battery life 500 to 1000 hours...
