- Page 1 ARP 670 User Reference Manual...
-
Page 2: Specifications
Specifications Model No ARP670 ARP670-S Support ATX M/B Support SBC with Backplane Motherboard Offer 7 expansion slots Offer 10 expansion slots Slots 1x 5.25”, 1x slim DVD-RW, 2x 3.5” Drive bay (Option: 2x 5.25”, 1x slim DVD-RW, 1x 3.5”) 17" TFT LCD Monitor, 1280x 1024 Display Anti-reflection tempered strengthen glass AD conversion board, DVI interface (Option VGA) - Page 3 Standard Accessory Kits ARP 670 Model Accessory Kit SKD ARP670 Portable Computer Chassis ARP 670 Carrying Case with wheels User’s Manual Power Cord Anti-Static Bag Screw Pack (stabilizer) Stabilizer Supports Pack Carrying Case with Wheels ３...

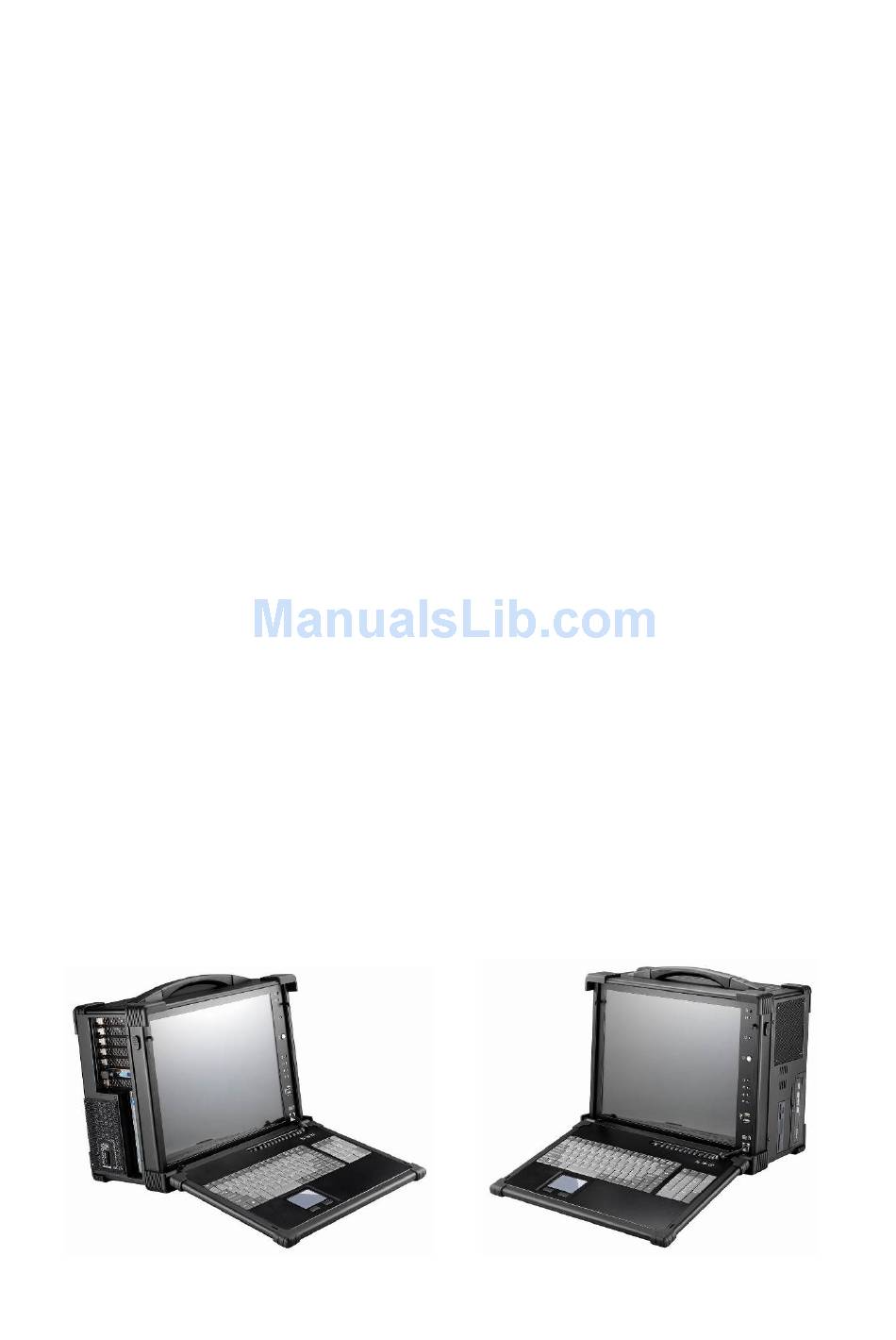

- Page 4 1.0 Introduction Version: 2010.12 ARP 670 features: ● Rugged Aluminum Construction with shock absorbing rubber corners ● Built-in 17” LCD display with tempered glass, 1280x 1024 ● Designed for Standard ATX M/B (7 slots)/ SBC with Backplane (10 slots) ● Offer 7/ 10 full length slots expansion capability ●...
-
Page 5: Getting Started
2.0 Getting Started 2.0 Operation 1. Releasing Keyboard from main unit by pushing up the 2 taps located on both side of the chassis to release the locking mechanism, and then pull out the keyboard. Lift up Lift up Press to release 2. - Page 6 4. You can flip the 2 feet located underneath the chassis outward to help create an angle for the chassis for viewing comfort. Power LED light 2 feet 5. Connect the power cable outlet into the power supply unit Insert Power Cord 6.
- Page 7 7. Access the available expansion slots on the left side of the chassis. 8. ARP670 provides 1x 5.25”, 1x slim DVD-RW, 2x 3.5” drive bays And 2x 5.25”, 1x slim DVD-RW, 1x 3.5” drive bays (option) 9. Full function keyboard and touchpad surface act as input for the system. Keyboard LED Touchpad + Button ７...
-
Page 8: Internal Hardware Access
3.0 Internal Hardware Access Be sure power cable is not connected to the system before proceeding 1. Open Back Cover Unscrew Unscrew Unscrew Unscrew Unscrew Unscrew Unscrew 2. Remove the Card stabilizer bar Unscrew Unscrew Unscrew Unscrew Unscrew Unscrew ８... - Page 9 3. Remove the drive bay 3.1 Remove the right side cover Unscrew Unscrew 3.2 Remove the drive bay Unscrew Unscrew 3.3 Slide and move out the drive bay slowly Slide & Move out ９...
-
Page 10: Remove The Power Supply
4. Remove The Power Supply 4.1 Remove the left side cover Unscrew Unscrew Unscrew 4.2 Remove the fan filter Unscrew Unscrew Unscrew Unscrew 4.3 Slide and move out the PSU slowly Unscrew Unscrew Slide & Move out Unscrew Unscrew １０... - Page 11 5. Install the proper stand-off matching the standard ATX Motherboard into the chassis and correct I/O plate supplied by board manufacturer and secure it the motherboard onto chassis. 6. Install your add-in card into the appropriate slot １１...
- Page 12 7. Install the 3.5” device and slim DVD-RW into drive bay housing 3.5” HDD DVD-RW 8. Install the drive bay and power supply into chassis Drive bay Power Supply 9. Remount the card stabilizer bar and put the rear cover back Screw Screw Screw...
-
Page 13: Software Installation
4.0 Software Installation You can use the built-in DVD-RW to load operating system and additional applications software into the system. Available medium from USB or download can also be possible. DOS Boot up: DOS boot up requires you to have a version of the DOS installed on hard disk drive or floppy. -
Page 14: Troubleshooting
5.0 Troubleshooting 1. Installation problem: 1. Normally problem with a fail start up is due to installation problem. 2. Double check all the peripheral cards or items you have added to the ARP. 3. Are all the items seated properly? 4.
