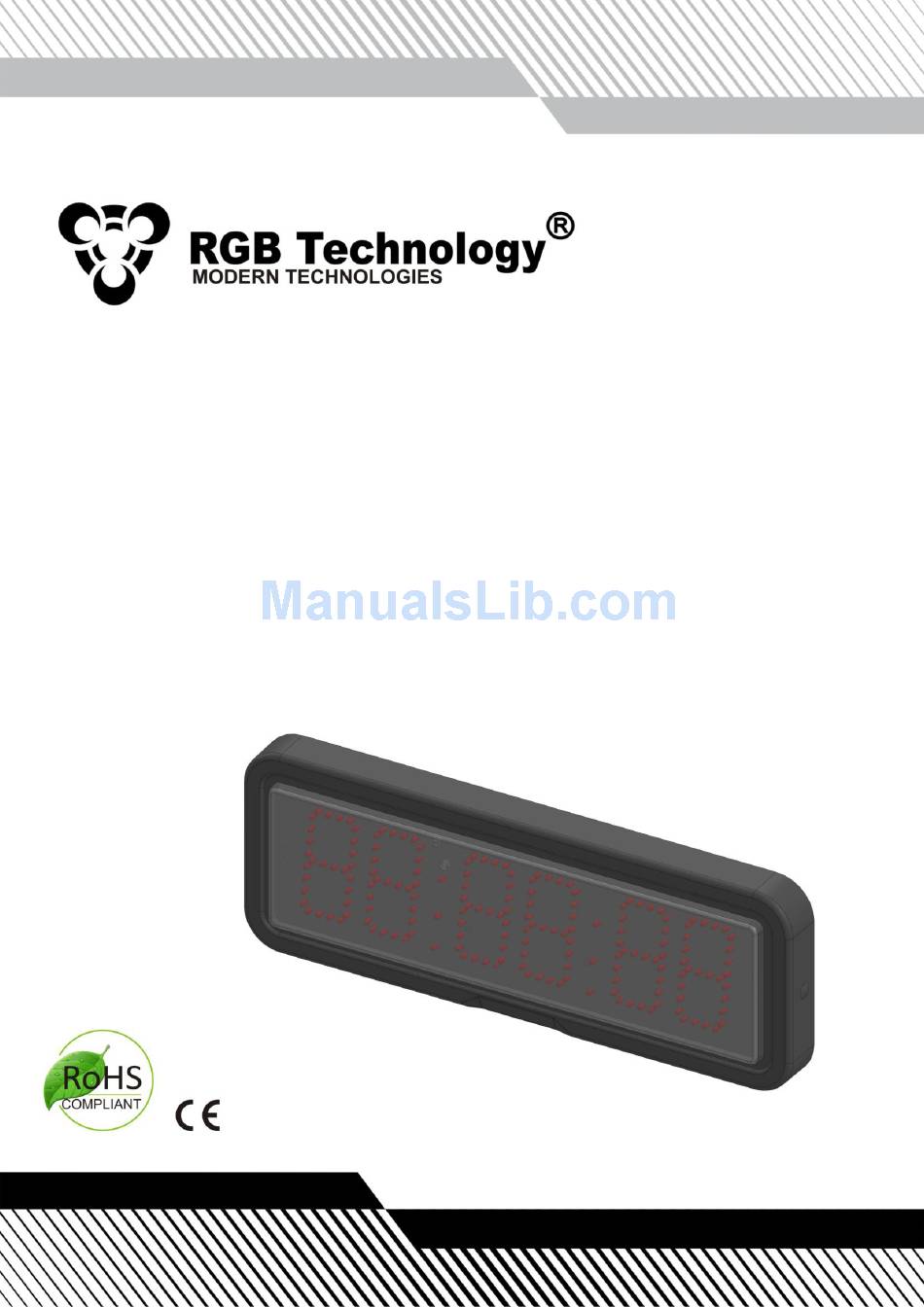

OPERATION AND MAINTENANCE MANUAL
ZB10 CLOCKS in the Prestige line casing
Product code:
301-05-01
301-05-02
301-05-03
301-05-04
301-05-05
301-05-06
* Explanatory figure

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 301-05-02 and is the answer not in the manual?

Questions and answers

Summary of Contents for RGB 301-05-02

  • Page 1 OPERATION AND MAINTENANCE MANUAL ZB10 CLOCKS in the Prestige line casing Product code: 301-05-01 301-05-02 301-05-03 301-05-04 301-05-05 301-05-06 * Explanatory figure...
  • Page 2: Table Of Contents

    Table of contents Manufacturer ..................................3 Specifications ..................................3 Transport and storage ................................ 3 Device construction ................................3 Construction of the ZB10 clocks ..........................4 4.1.1 List of display cables ............................4 Dimensions of the ZB10 device ..........................4 4.2.1 Mounting the ZB10 device ..........................
  • Page 3: Manufacturer

    1 Manufacturer RGB Technology Sp. z o. o. Tymieo 18 76-035 Tymieo POLAND 2 Specifications ZB10 clock Dimensions of the device [mm]: 512 x 186 x 45 Display format: HH:MM:SS Permissible input voltage range (long-term): 100 ÷ 240 VAC Permissible input voltage range (short-term): 85 ÷...
  • Page 4: Construction Of The Zb10 Clocks

    4.1 Construction of the ZB10 clocks The figure shows ZB5 clock Front view Back view det. A – extender box; det. B – M5x10 screw; det. C – technological hole plug; det. D – mounting bracket; det. E – power supply unit; det.
  • Page 5: Installation Of The Device

    5 Installation of the device Proper installation consists in mounting the device on a flat surface with the leads facing down. Only the correct installation of the device ensures its proper operation and maintaining the device parameters, e.g. casing tightness rating to satisfy the IP code. NOTICE! Before any installation or maintenance operations refer to the manual supplied by the manufacturer.
  • Page 6: Description Of The Compact-Clock Extender Connectors

    6.1 Description of the compact-clock extender connectors Symbol Function Remarks Closing contact, normally open; permissible load: RA, RB Relay (alarm signalling device) - resistive: 5 A 250 VAC, 5A 30 VDC - inductive: 2 A 250 VAC, 2A 30 VDC Pin no.
  • Page 7: Additional Options

    9 Additional options 9.1 IR remote control unit IR remote control unit (Fig. 5), enables entering the embedded user menu. You can do it by pressing the „MENU” button (Fig.5, det. C) det. A – arrows for changing the parameters (UP/DOWN); det.
  • Page 8: 11 Disposal And Recycling

    11 Disposal and recycling 11.1 Recycling of packing materials The packaging materials must be segregated , then recycled in accordance with local regulations for waste disposal regulations. 11.2 Disposal of the device The device can not be disposed with regular household waste! According to Directive 2002 / 96 / EC ( WEEE ) , when repair is not economically reasonable, user is obligated to hand over damaged or destroyed device to an appropriate disposal facility .
