AIRRSv2
AIRRSv2
AIRRSv2
Analog Infra-Red Ranging Sensor
The GP2Y0A02YK0F is a well-proven, robust sensor that uses angle-
of-reflection to measure distances. It's not fooled by bright light or
different coloured targets!
Simple to use (analog 0 to 2.5V output)
Small (4.5 x 2.2 x 1.9 cm)
Connects directly to any microcontroller with A/D
20 cm to 150 cm (8 to 79") range
http://www.solarbotics.com/products/35235/
SKU: 35235

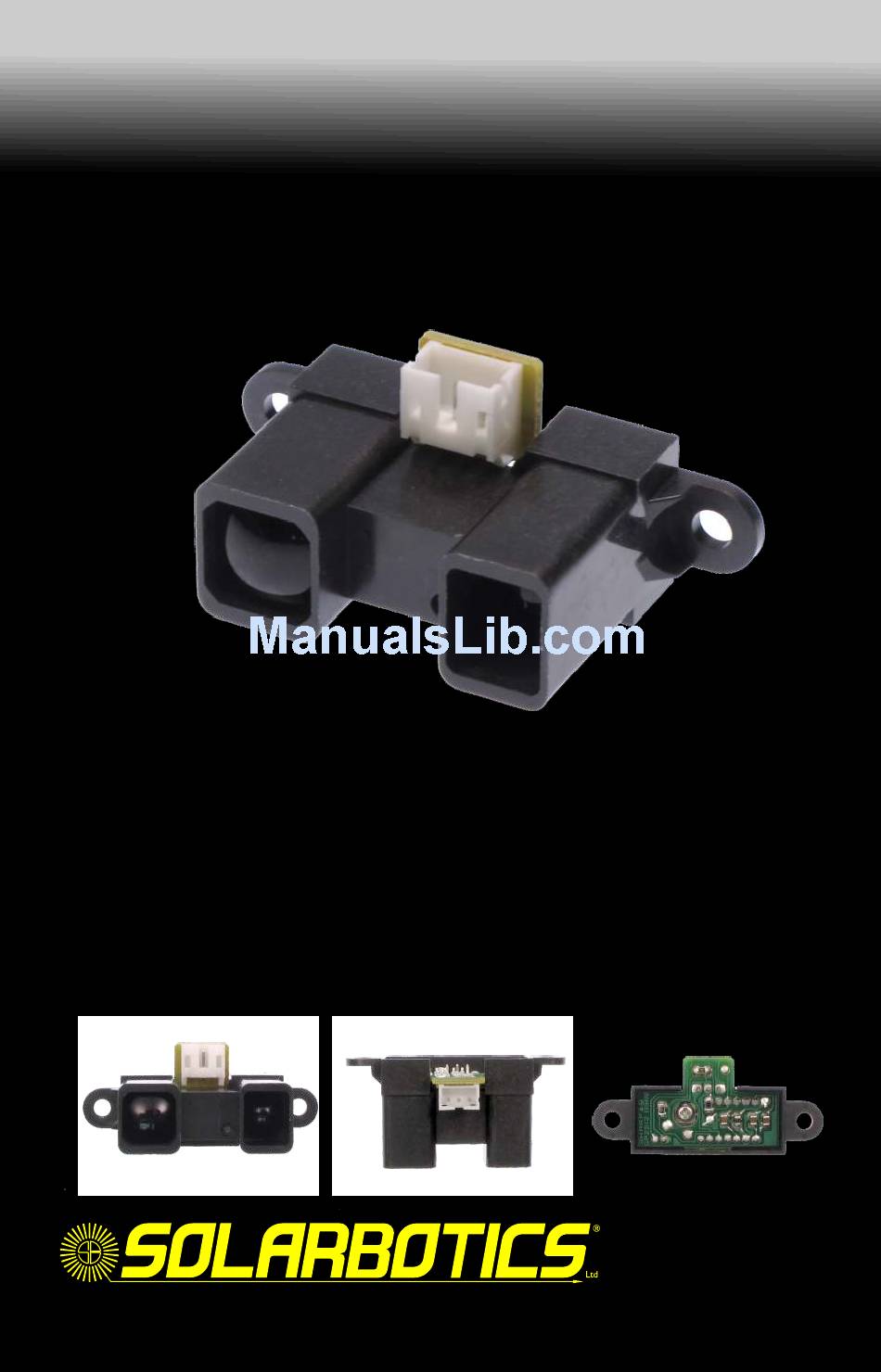

Sharp GP2Y0A02YK0F Sensor
www.solarbotics.com
1-866-276-2687
Document Revision: Dec 6 2010
Advertisement
Table of Contents
Summary of Contents for Solarbotics GP2Y0A02YK0F
- Page 1 AIRRSv2 Analog Infra-Red Ranging Sensor Sharp GP2Y0A02YK0F Sensor The GP2Y0A02YK0F is a well-proven, robust sensor that uses angle- of-reflection to measure distances. It’s not fooled by bright light or different coloured targets! Simple to use (analog 0 to 2.5V output) Small (4.5 x 2.2 x 1.9 cm)
- Page 2 Usable detection range is 10 cm to 80 cm (approximately 4” to 31.5”). The Analog Infra-Red Ranging System consists of the Sharp GP2Y0A02YK0F Distance Measuring Sensor and a custom cable assembly. The GP2Y is a compact, self-contained IR ranging system incorporating an IR transmitter, receiver, optics, filter, detection, and amplification circuitry.
- Page 3 0.401 0.411 0.382 0.353 0.386 0.371 0.370 0.335 0.364 0.369 0.356 0.295 0.364 0.355 0.338 0.296 0.344 0.351 0.330 0.281 0.341 0.341 0.321 Table 2 - Calibration Data 0.266 0.318 0.329 0.304 0.139 0.295 0.310 0.248 www.solarbotics.com AIRRS+ Manual v1.7...
- Page 4 Graph 1: AIRRS Calibration Sample Data Distance (cm) GP2Y (AVG) Graph #2: AIRRS Calibration Average Voltage Best Fit Equation -0.9891 y = 57.653x Distance (cm) GP2Y (AVG) Power (GP2Y (AVG)) www.solarbotics.com AIRRS+ Manual v1.7...
- Page 5 PSD. Object A is closer and therefore the reflected light from it enters the receiver’s lens at a greater angle than does light from object B. IR LED Figure 1 www.solarbotics.com AIRRS+ Manual v1.7...
- Page 6 Do Not attempt to open the unit. Doing so will ruin the delicate alignment of the optics Technical Specifications Block Diagram Operating Voltage 4.5~5.5V Operating Current 33mA Output Signal 0.3-2.8 VDC Dimension 4.5x2.2x1.91mm Detection Angle 10° Detection 20-150 cm Distance www.solarbotics.com AIRRS+ Manual v1.7...
-
Page 7: Technical Support
Example Code Coded for the CCS PCM C-Compiler and used in the PIC16F877 ////////////////////////////////////////////////////////////////////////////////////////////////////// //// //// //// AIRSDEM.C for the PIC16F877 //// //// //// Analog Infra-Red Range-finding System (AIRRS) //// //// Demo Program //// //// //// //// HVW Technologies, March 2000 //// http://www.HVWTech.com ////... - Page 8 Proven and very reliable object sensor Simple 5V Connection Analog signal easily processed by any microcontroller’s A2D pin Other products from Solarbotics: Stamp Stack II: The ultimate BASIC Stamp II prototyping tool. A complete BASIC Stamp II on a board that mounts onto a solderless breadboard.
