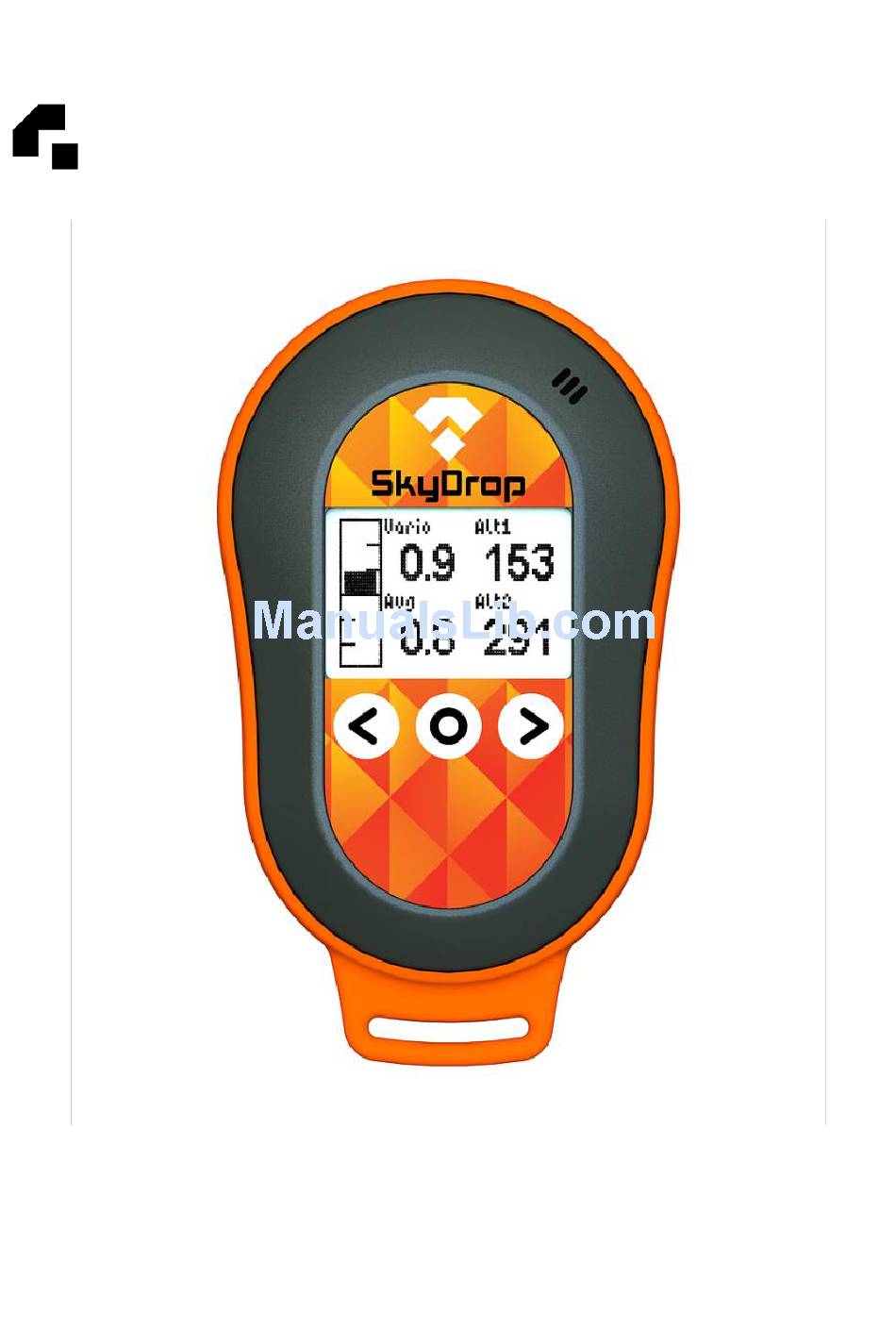

SkyDrop User manual
SkyDrop user`s Guide
Electronic user's guide released subject to "SkyDrop User's
Guides Terms and Conditions, 1th September, 2015"

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SkyDrop and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for SkyBean SkyDrop

  • Page 1 SkyDrop User manual SkyDrop user`s Guide Electronic user's guide released subject to "SkyDrop User's Guides Terms and Conditions, 1th September, 2015"...
  • Page 2 SkyDrop User manual Combined Vario (GPS, Bluetooth, SD card, Digital compass, accelerometer, thermometer and humidity sensor) Dimensions: 62x98x22 (super compact) Weight: 67g (extra light) Battery type: Li-ion single cell (USB rechargeable)
  • Page 3: Buttons Functions

    SkyDrop User manual Buttons Functions The middle button has following functions  turn device on - press and hold for 1 second  turn device off - when on home screens press and hold for 5 seconds  on home screen, press to change widget value ...
  • Page 4 SkyDrop User manual Device Menu navigation 1. Vario Lift threshold Sink threshold Weak lift Fluid audio (if enabled sound frequency will change during beeps ) Digital vario int. Average vario int. Units 2. Altimeters Altimeter 1,2,3,4,5 QNH1 for Altimeter 1...
  • Page 5 SkyDrop User manual 4. GPS Enable GPS Status GPS time GPS date Speed units Format 5. Bluetooth Bluetooth module information 6. Settings Time and Date 1. Time 2. Date 3. Time Zone 4. DST 5. Sync with GPS Display 1. Contrast 2.
  • Page 6 SkyDrop User manual Widgets settings Available widgets: 1. Empty 2. Debug 3. Vario 4. AVG vario 5. Vario bar 6. Altitude 1,2,3,4,5 7. Accelerometer X 8. Time 9. Flight time 10. Temperature 11. GPS Heading 12. Ground Speed 13. GPS position 14.
  • Page 7: Descriptions Of Functions

    4m in default but you can set the value as you like.(0 to disable) Suppressed audio is in default turned on. Important information: We highly recommend to use both velcro and safety strap when flying with SkyDrop. SkyDrop comes with (velcro, strap, SkyBean sticker, manual) and it has 2year warranty.
  • Page 8 2..must be deleted) Eject the device from system toolbar and then long press right button. SkyDrop led will lid yellow, when the update is applied. Disconnect USB cable and you are done. Alternatively you can find the updates in our GitHub account https://github.com/fhorinek/SkyDrop...
  • Page 9: Faq & Troubleshooting

    SkyDrop has its own user interface (LCD and buttons). You can change all parameters directly. Q: do you have a clip or similar to put the Skydrop onto a riser instead of helmet or at the moment only the good old Velcro is the solution?
  • Page 10: Contact Information

    Q: There is no sound from vario, even if display shows rising or falling when moving up or down. A: SkyDrop starts in silent mode, with auto take off detection (default threshold ±4m). Audio will start working when initial altitude will change out of threshold range.
