Assembly Instructions
Funbrella Palm
Please read all assembly/installation instructions before the installation or removal of this product.
EVANSVILLE, IN
Sold by Aquatic Technology, Inc.
Phone: 800-446-6416 • 207-877-7900 • Fax: 207-692-1033
Email: cs@poolweb.com • www.poolweb.com
Quality, Craftsmanship and Service since 1892
FunPalm 1008
EC 3529
Advertisement
Table of Contents
Summary of Contents for Anchor Funbrella Palm
-
Page 1: Assembly Instructions

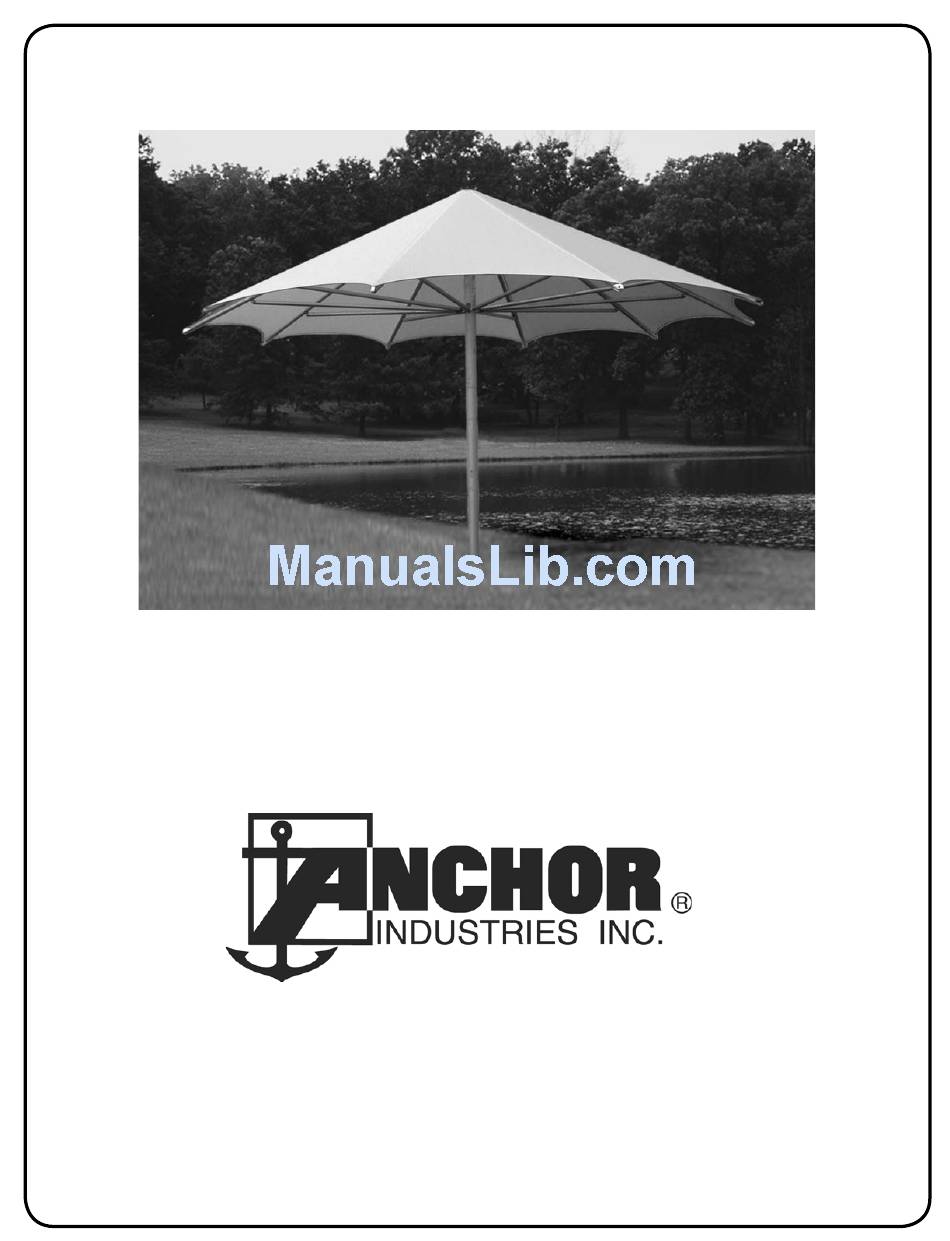

Assembly Instructions Funbrella Palm Please read all assembly/installation instructions before the installation or removal of this product. EVANSVILLE, IN Sold by Aquatic Technology, Inc. Phone: 800-446-6416 • 207-877-7900 • Fax: 207-692-1033 Email: cs@poolweb.com • www.poolweb.com Quality, Craftsmanship and Service since 1892... - Page 3 3/8” ID Flat Washer 3/8” Hex Nut CenterPole 3/8” Cap Nut MANPOWER REQUIRED Two experienced installers should be able to assemble a Funbrella Palm top & frame in two hours. Brace in Closed Position. Bottom Hub in Closed Position. INSPECT SITE - CAUTION Consult local Utility Company prior to installation.
- Page 4 STEP 1 Top hub Set Center Pole Assembly into ground sleeve and secure with (2) 3/8” x 5 1/2” Bolts, (2) 3/8” Flat Washers, Pole Assembly (2) 3/8” Hex Nuts and (2) 3/8” Cap Nuts. (Items # 8, 9, 10 & 11 on Parts List - Page 2.) Bottom Hub (Figures 1a &...
- Page 5 STEP 3 Assemble rafters (Item 2) to braces (Item 3) using 3/8” x 1 3/4” Bolts ( Item 6) & Nuts (Item 7). See Figure 3. Assemble all ten Rafters to Braces. Figure 3 STEP 4 Snap (2) Ratchet Come-A-Longs (purchased separately) to the eyebolts on top hubs and to the eye- bolts on bottom hub ( Figure 4a).
- Page 6 Caution: Bolt/nut & spacers must be installed to prevent bottom hub with rafters from sliding down center pole. You may now remove the Come-A-Longs. Your funbrella Palm is now ready for use. Figure 7...
- Page 7 For removal of pole, reverse steps 1 through 7 to prevent frame damage. CAUTION: When high wind conditions are expected, use Come-A-Longs to lower Funbrella Palm and remove top. Then either raise frame and insert bolt/nut/spacer assembly to hold bottom hub in place - or - remove rafters and braces.
- Page 8 5. Anchor stands behind its products in accordance with its standard Terms and Conditions of sale. A copy of our Terms and Conditions of Sale can be obtained by contacting Anchor at the telephone number and/or address on this document.
