Summary of Contents for Ader Sports HS-7601B

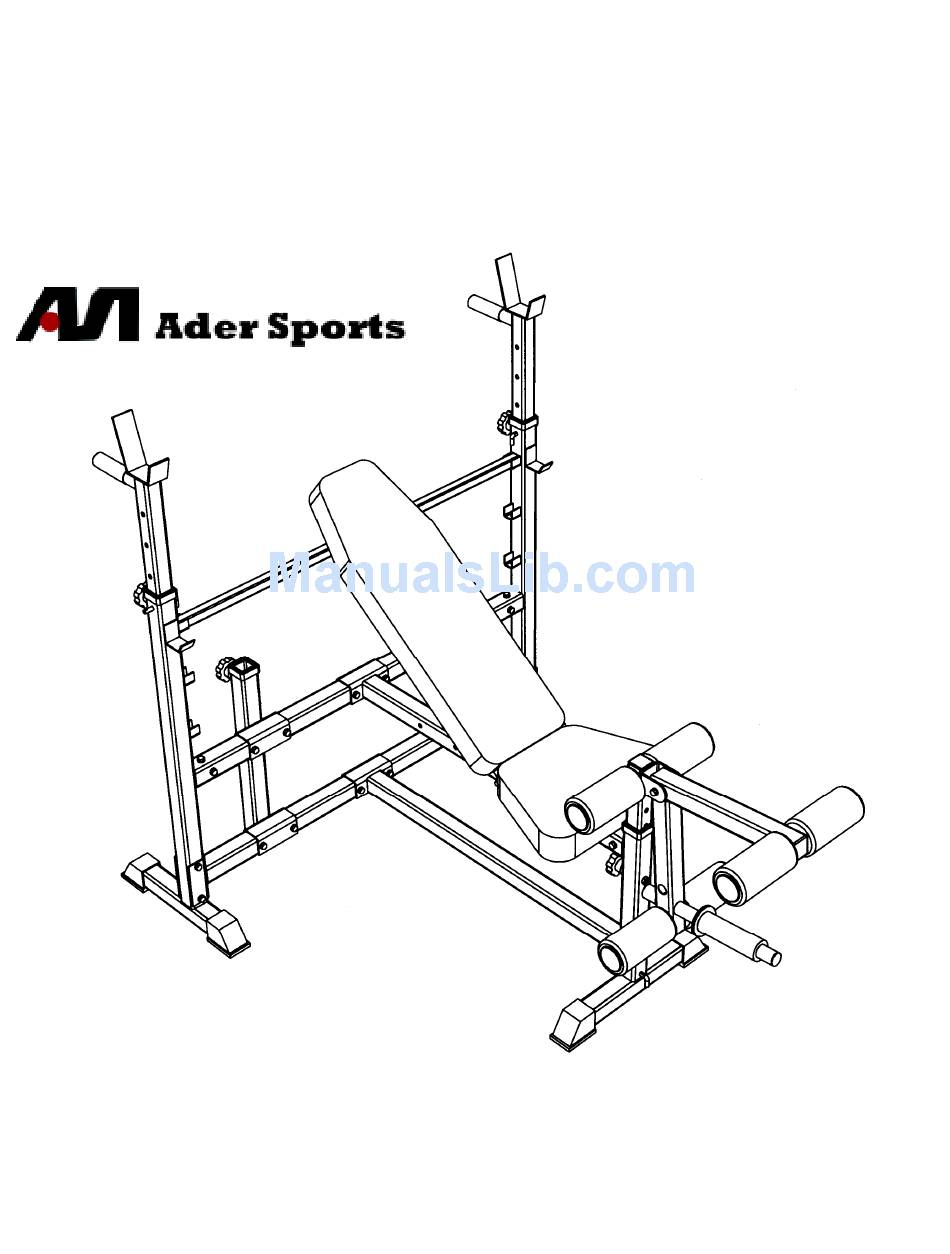

- Page 1 ASSEMBLY INSTRUCTIONS FOR THE HS-7601B OLYMPIC COMBO BENCH FOR YOUR SAFETY READ ALL INSTRUCTIONS CAREFULLY *NOTE IF YOU ARE MISSING HARDWARE OR HAVE ANY FIT UP PROBLEMS PLEASE CONTACT ADER SPORTING GOODS TOLL FREE (800) 733-2338...
- Page 2 ASSEMBLY INSTRUCTIONS FOR THE HS-7601B OLYMPIC COMBO BENCH TOOLS REQUIRED: 1) 11/16" WRENCH 2) 9/16” WRENCHES INSTRUCTIONS: FIGURE A 1) FIRST INSTALL THE RUBBER CAPS (B) ONTO THE WEIGHT COLUMN ARMS (A). NEXT INSTALL THE TURN KNOB (D) AND THE REDUCER CAP (C) ON THE WEIGHT COLUMN ARMS (A).
- Page 3 ASSEMBLY INSTRUCTIONS FOR THE HS-7601B OLYMPIC COMBO BENCH FIGURE E 1) CONNECT THE SEAT FRAME (A) TO THE WEIGHT COLUMN (B) USING THE 3/8” X 3” BOLTS (C), THE FLAT WASHERS (D) AND THE 3/8” LOCK NUTS (E). FIGURE G 1) FIRST INSTALL THE 2”...
- Page 4 ASSEMBLY INSTRUCTIONS FOR THE HS-7601B OLYMPIC COMBO BENCH WARNING: THE USER OF THIS WEIGHT EQUIPMENT ASSUMES THE POSSIBILITY OF INJURY BY EXERCISING ON THIS EQUIPMENT. THE POSSIBILITY OF RISK CAN BE REDUCED BY ALWAYS FOLLOWING THESE SIMPLE RULES: 1) BEFORE BEGINNING ANY EXERCISE PROGRAM, CONSULT YOUR DOCTOR FOR A COMPLETE PHYSICAL EXAMINATION AND SUGGESTED EXERCISE PROGRAM SPECIFIC FOR YOU.
- Page 5 ASSEMBLY INSTRUCTIONS FOR THE HS-7601B OLYMPIC COMBO BENCH FIGURE A NOTE: INCLINE BAR IS REMOVED FOR THE FLAT BENCH POSITION (NOTE: THE NUTS USED ON THIS BENCH ARE LOCK NUTS, THIS MEANS YOU MUST TIGHTEN THEM DOWN PAST THE PLASTIC INSERT.)
- Page 6 ASSEMBLY INSTRUCTIONS FOR THE HS-7601B OLYMPIC COMBO BENCH FIGURE B *NOTE IF YOU ARE MISSING HARDWARE OR HAVE ANY FIT UP PROBLEMS PLEASE CONTACT ADER SPORTING GOODS TOLL FREE (800) 733-2338...
- Page 7 ASSEMBLY INSTRUCTIONS FOR THE HS-7601B OLYMPIC COMBO BENCH FIGURE C...
- Page 8 ASSEMBLY INSTRUCTIONS FOR THE HS-7601B OLYMPIC COMBO BENCH FIGURE D MAKE SURE PLASTIC SLIDES STAY INSERTED IN BOTH ENDS OF THE SEAT SLIDE DURING ASSEMBLY. *NOTE IF YOU ARE MISSING HARDWARE OR HAVE ANY FIT UP PROBLEMS PLEASE CONTACT ADER SPORTING GOODS TOLL FREE (800) 733-2338...
- Page 9 ASSEMBLY INSTRUCTIONS FOR THE HS-7601B OLYMPIC COMBO BENCH (NOTE: THE NUTS USED ON THIS BENCH ARE LOCK NUTS, THIS MEANS YOU MUST TIGHTEN THEM DOWN PAST THE PLASTIC INSERT.) FIGURE E...
- Page 10 ASSEMBLY INSTRUCTIONS FOR THE HS-7601B OLYMPIC COMBO BENCH FIGURE F *NOTE IF YOU ARE MISSING HARDWARE OR HAVE ANY FIT UP PROBLEMS PLEASE CONTACT ADER SPORTING GOODS TOLL FREE (800) 733-2338...
- Page 11 ASSEMBLY INSTRUCTIONS FOR THE HS-7601B OLYMPIC COMBO BENCH FIGURE G...
- Page 12 ASSEMBLY INSTRUCTIONS FOR THE HS-7601B OLYMPIC COMBO BENCH FIGURE H (NOTE: THE NUTS USED ON THIS BENCH ARE LOCK NUTS, THIS MEANS YOU MUST TIGHTEN THEM DOWN PAST THE PLASTIC INSERT.) *NOTE IF YOU ARE MISSING HARDWARE OR HAVE ANY FIT UP PROBLEMS PLEASE CONTACT ADER SPORTING GOODS TOLL FREE (800) 733-2338...
- Page 13 ASSEMBLY INSTRUCTIONS FOR THE HS-7601B OLYMPIC COMBO BENCH FIGURE I...
-
Page 14: Box Contents
ASSEMBLY INSTRUCTIONS FOR THE HS-7601B OLYMPIC COMBO BENCH BOX CONTENTS PART # 9 PART # 8 PART # 7 PART # 6 SEAT FRAME SEAT FRAME 2 DIP TUBE CROSS MEMBER QTY 1 QTY 1 QTY 2 QTY 1 PART # 4... - Page 15 ASSEMBLY INSTRUCTIONS FOR THE HS-7601B OLYMPIC COMBO BENCH BOX CONTENTS PART # 17 PART # 18 PART # 16 ROLLER PAD ADAPTOR LEG PAD TUBE LEG SWING QTY 6 QTY 1 QTY 3 QTY 1 PART # 19 PART # 14...
- Page 16 ASSEMBLY INSTRUCTIONS FOR THE HS-7601B OLYMPIC COMBO BENCH (1 PCS) TURN KNOB (LONG) (5 PCS) L STYLE LOCK PIN (5 PCS) TURN KNOB (SHORT) (2 PCS) GRIP (41 PCS) FLAT WASHER (1 PC) 1” QUICK CLAMP (20 PCS) 3/8” LOCK NUT (1 PC) 1”...
