DIGITAL TO ANALOG CONVERTER DA 0 3.0

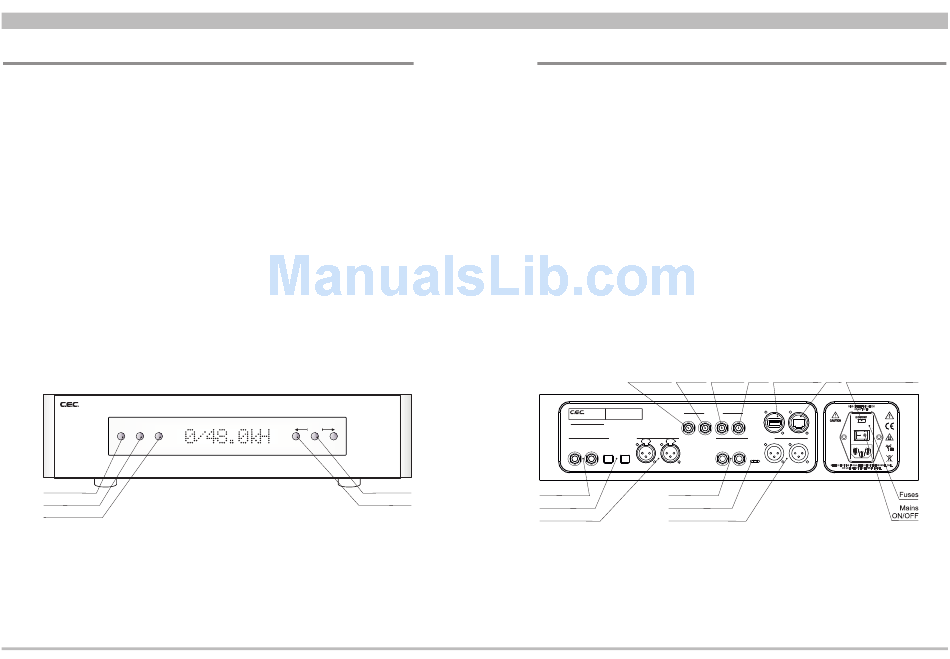

Front Panel Functions

"ON/OFF" Button
Switches the unit "ON" and "OFF". See OPERATION SECTION for details
"MUTE" Button
This button toggles between mute and normal volume modes. When the indicator
above the mute button is green the system is muted
"MENU" Button
Switches between menu and normal operation
"ENTER" Button
Validates the option selected
"MENU" Knob
Scrolls through the menu
LED Display
Shows the input selected, the signal sample/bit rate and the menu options. This display
is auto dimmable – goes off in few seconds if no control is operated. It automatically
goes on at power up, in case the input signal changes or user menu is selected
POWER MUTE MENU
"POWER" Button
"MUTE" Button
"MENU" Button
6
SELECT
DIGITAL TO ANALOG CONVERTER DAO 3.0
"OK" Button
"SELECT" Buttons

Back Panel Functions

IEC Power Connector, Main Switch, Fuses and Input Voltage Selector
There are fuses located in the IEC power connector on the back panel. For 230
volts operation a 0.63 amperes "Slow Blow" fuse is used. For 115 volts operation
the fuse should be 1.25 amperes. If power does not come on, contact your
authorized service representative.
Inputs
▷  2 x COAX jacks, labeled 1 and 2, accommodate signal from digital sources,

good for short runs and lower frequencies
▷  2 x TOSLINK inputs, labeled OPT 1 and OPT 2, provide ground isolation

between the units and noise immunity over long runs
▷  2 x AES/EBU inputs, labeled AES 1 and AES 2 to accommodate high quality

signal, that uses professional protocol
▷  1 x USB input (optional), Currently a USB – input is available to accommodate

digital signal from a computer source
Outputs
▷  T wo sets of analog output jacks are provided – a pair single-ended RCA
outputs and a pair of balanced XLR outputs.
The switch between them activates the output selected.
Master Clock Bit Clock L/R Clock DATA
DIGITAL TO ANALOG CEC International GmbH
SUPER LINK
CONVERTER
Handmade in EU
Model: CEC DA 0 3.0
MCK BCK
SERIAL NO.: DA 16040026
DIGITAL INPUT
COAX1 COAX2 OPT1 OPT2 AES1 AES2
COAX Inputs RCA Outputs
TOSLINK Inputs SWITCH RCA/XLR
AES/EBU Inputs XLR Outputs
DA 0 3.0 User's Manual
USB (optional) LAN Input Voltage Selector
RISK OF ELECTRIC SHOCK
USB LAN
DO NOT OPEN
LRCK DATA
ANALOG OUT
RCA/XLR
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL ONLY.
LEFT LEFT
RIGHT RIGHT
NO USER SERVICEABLE PARTS INSIDE.
