Summary of Contents for KI WireWorks PWCT

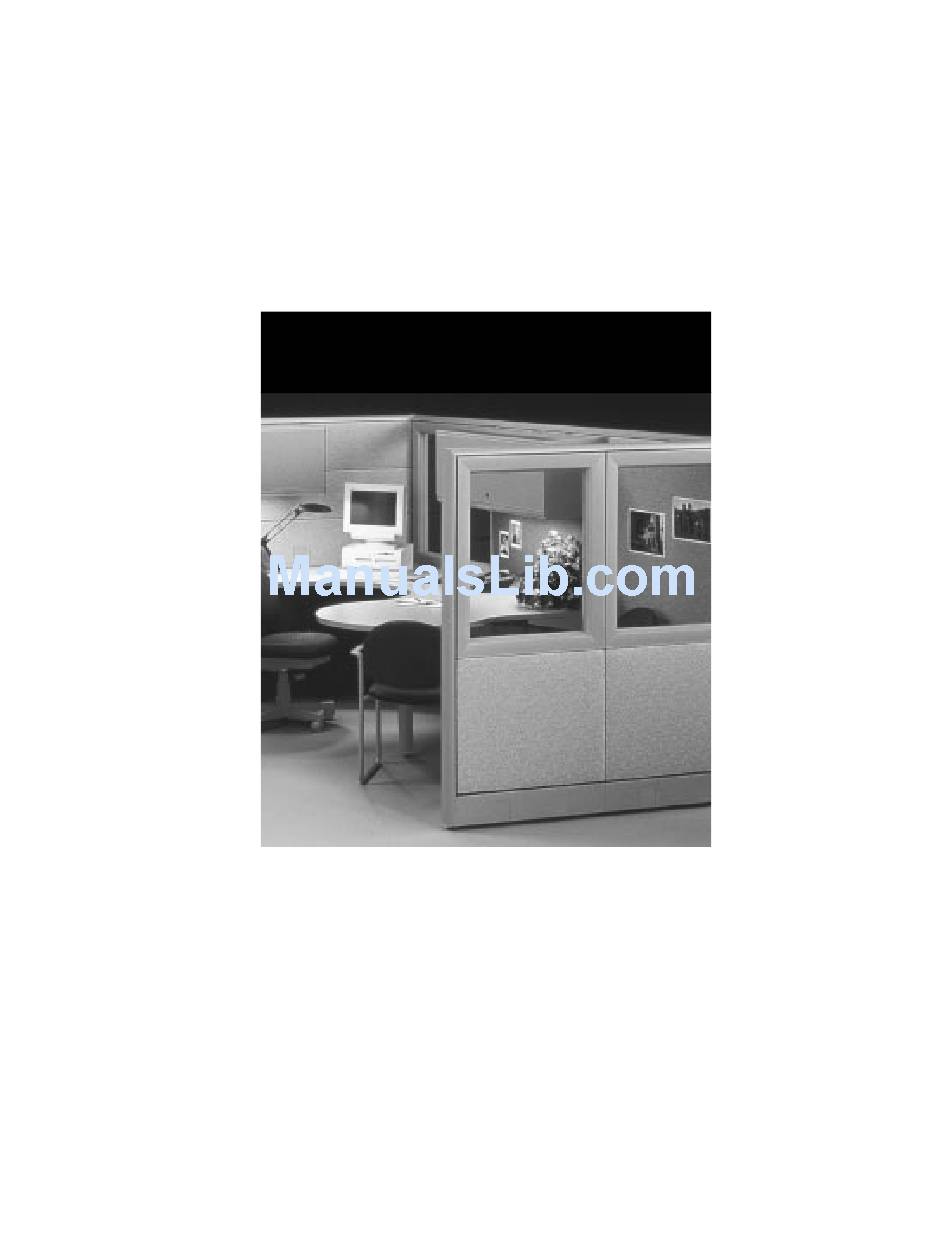

- Page 1 Countertop Installation Manual WireWorks™ Countertops...
- Page 2 Table of Contents Model PWCT ........2 Straight Countertop Model PW90 .
-
Page 3: Model Pwct
Model PWCT Straight Countertop Single piece rectangular surface. To be used with 36” or 42” high panels. Countertop extends no more than 4" over the top of the panel to comply with ADA guideline 4.4.1. Brackets, which are mounted on inside of station, include steel locking clips to prevent dislodgement. - Page 4 Model PWCT Straight Countertop 4. Brackets are engaged into the panel by inserting teeth of bracket into slots of vertical post and then pushing down to seat. Check for proper engagement by pulling firmly straight out. Note: Countertops over 60" use three brackets. 5.
-
Page 5: Model Pw90
Model PW90 90˚ Countertop Two piece mitered surface with 90˚ right angle. To be used with 36" or 42" high panels. Countertop extends 4" over the top of the panel to comply with ADA guideline 4.4.1. Brackets are mounted on inside of station, include steel locking clips to prevent dislodgement. - Page 6 Model PW90 90˚ Countertop Filler C-shaped grommet Notch Figure 2...
-
Page 7: Model Pwctw
Model PWCTW Straight Wheelchair Height Countertop Single piece rectangular surface. To be used with only 30" high panels to place countertop no higher than 34" to comply with ADA guideline 4.32.4 (wheelchair height). Countertop extends no more than 4" in the aisle to comply with ADA guideline 4.4.1. - Page 8 Model PWCTW Straight Wheelchair Height Countertop Filler C-shaped grommet Notch Figure 2...
-
Page 9: Model Pwctw90
Model PWCTW90 90˚ Wheelchair Height Countertop Two piece mitered surface with 90˚ right angle. To be used with only 30" high panels to place countertop no higher than 34" to comply with ADA guideline 4.32.4 (wheelchair height). Refer to worksurface height dimensions of Figure 1 on page 6. - Page 10 Model PWCTW90 90˚ Wheelchair Height Countertop 4. Brackets are engaged into the panel by inserting teeth of bracket into slots of vertical post and then pushing down to seat. Check for proper engagement by pulling firmly straight out. 5. Place countertop over brackets (installed on panel).
- Page 11 P.O. Box 8100 Green Bay, Wisconsin 54308-8100 TEL (800) 424-2432 FAX (920) 468-0280 www.ki.com KI is a registered trademark of Krueger International, Inc. WireWorks™ is a trademark of Krueger International, Inc. © KI 2002 All Rights Reserved Litho in USA Code KI-61280/KP402...
