NETWORKS
P2P and P2MP Radios
For advanced settings and more detailed information, download the user
manual from www.shyamnetworks.com.
RM24/58

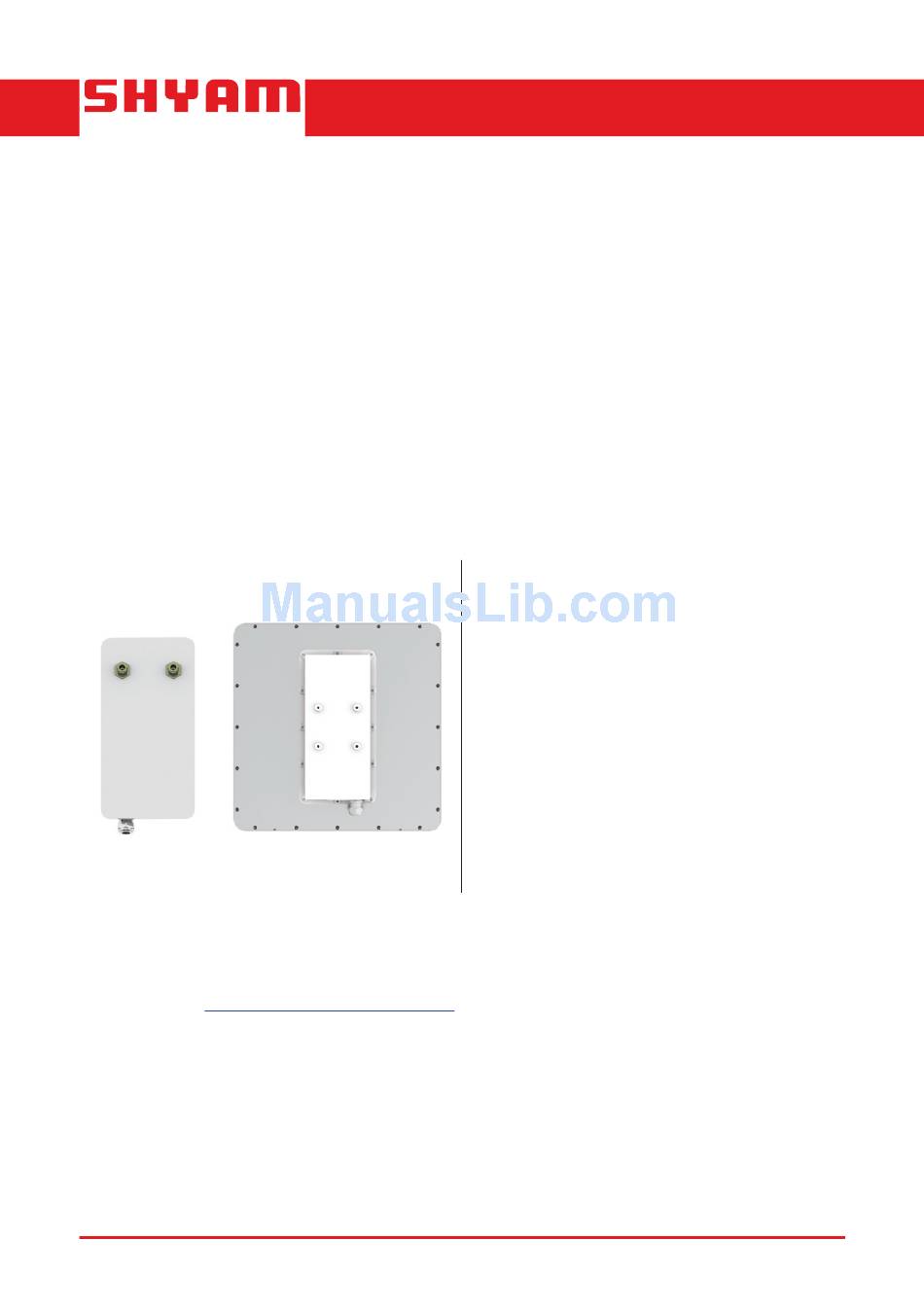

Quick Start Guide
Package Contents
RM24/58
Mast/Wall Mounting Kit
Outdoor Ethernet Cable (Optional) 1
External Antenna (Optional)
PoE Injector
Quick Start Guide
Shyam Transmission System
Management Software CD
www.shyamnetworks.com
1
1
1
1
1
1
Advertisement
Table of Contents
Summary of Contents for SHYAM Networks RM-1C-18M-19-24
-
Page 1: Quick Start Guide
NETWORKS RM24/58 P2P and P2MP Radios Quick Start Guide Package Contents RM24/58 Mast/Wall Mounting Kit Outdoor Ethernet Cable (Optional) 1 External Antenna (Optional) PoE Injector Quick Start Guide Shyam Transmission System Management Software CD For advanced settings and more detailed information, download the user manual from www.shyamnetworks.com. -
Page 2: Hardware Overview
RM24/58 NETWORKS 1. Hardware Overview Antenna Port Power LED LAN Port LAN Port RM-1C-18M-19-24 RM-1C-18M-E-24 Available Models MODEL DESCRIPTION Point to Point Radio - TDMA (Outdoor) Link RM-1C-18M-19-24 2.4 GHz, 18 Mbps with integrated 19 dBi antenna RM-1C-18M-E-24 2.4 GHz, 18 Mbps with external antenna RM-1C-50M-19-24 2.4 GHz, 50 Mbps with integrated 19 dBi antenna... -
Page 3: Caution And Warnings
RM24/58 NETWORKS MODEL DESCRIPTION Point to Multi Point Base Station and Subscribers - TDMA (Outdoor) RPMP-1C-18M-E-24 2.4 GHz, 18 Mbps RPMP-1C-18M-E-58 5.8 GHz, 18 Mbps RPMP-1C-50M-E-24 2.4 GHz, 50 Mbps RPMP-1C-50M-E-58 5.8 GHz, 50 Mbps RPMP-1C-100M-E-24 2.4 GHz, 100 Mbps RPMP-1C-100M-E-58 5.8 GHz, 100 Mbps Interface Description... -
Page 4: Additional Hardware
RM24/58 NETWORKS 2. Installing RM24/58 Integrated Antenna 4-Port Switch PoE Adapter Additional Hardware • RJ-45 crimp tool (if pre-assembled cable is not used) • Grounding cable • 13 mm or ½½ socket spanner • Ethernet cable - outdoor class, CAT-5e, and 4 twisted pairs •... - Page 5 RM24/58 NETWORKS Ground RM24/58 STEP 1 Crimp the grounding lug at both the ends on the earthing cable. STEP 2 Connect and tighten one end of the earthing cable to RM24/58. STEP 3 Connect other end of the earthing cable to the earth pit on the ground. iNote: Ensure that ground earthing is separated from power earthing.
- Page 6 RM24/58 NETWORKS 3. Configuring RM24/58 STEP 1 Install the Shyam Transmission System Management software on the system, which on successful installation creates the Shyam Transmission System icon on the desktop. STEP 2 Connect the system to the LAN. STEP 3 Double-click the Shyam Transmission System icon on the desktop or click Start | Programs | Shyam Transmission System.
-
Page 7: Quick Troubleshooting
RM24/58 NETWORKS 4. Quick Troubleshooting PROBLEM PROBABLE REASON RESOLUTION No beep sound. There is no signal. • Ensure that cable at RM24/58 is properly connected. • Check the connectivity between the external antenna and RM24/58. • Check master and slave RM24/58 alignment. -
Page 8: Warranty
Product ______________________________________________________________________ Model No. _______________________________ Serial No. ___________________________ Dealer’s Stamp & Signature Customer Care, Shyam Networks (A Division of Vihaan Networks Ltd.) 21-B, Sec-18, Udyog Vihar, Gurgaon-122015 Haryana, India Email: customer.care@vnl.in All India Helpline No. - +91 124 309 2000 Ext. 2009, +91 9873573710 Manufactured by Vihaan Networks Ltd.
