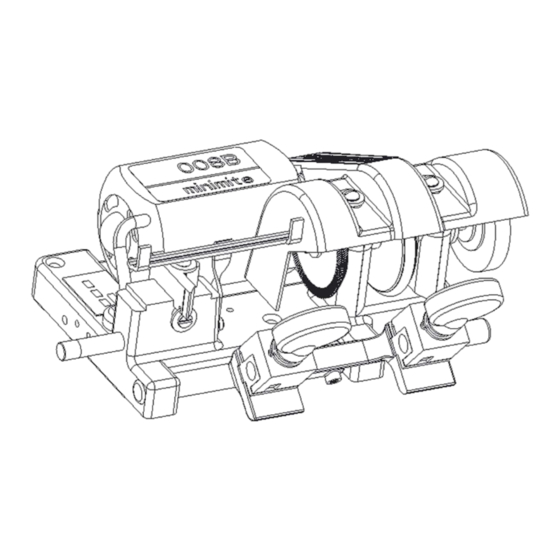

INSTRUCTION MANUAL

IMPORTANT! Read these instructions before you use your new 008B Key
Machine. Ensure that all safety recommendations are followed! See page 2 for
instructions.
A member of the Kaba Group
www.kaba- ilco.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 008B and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for ilco 008B

  • Page 1: Instruction Manual

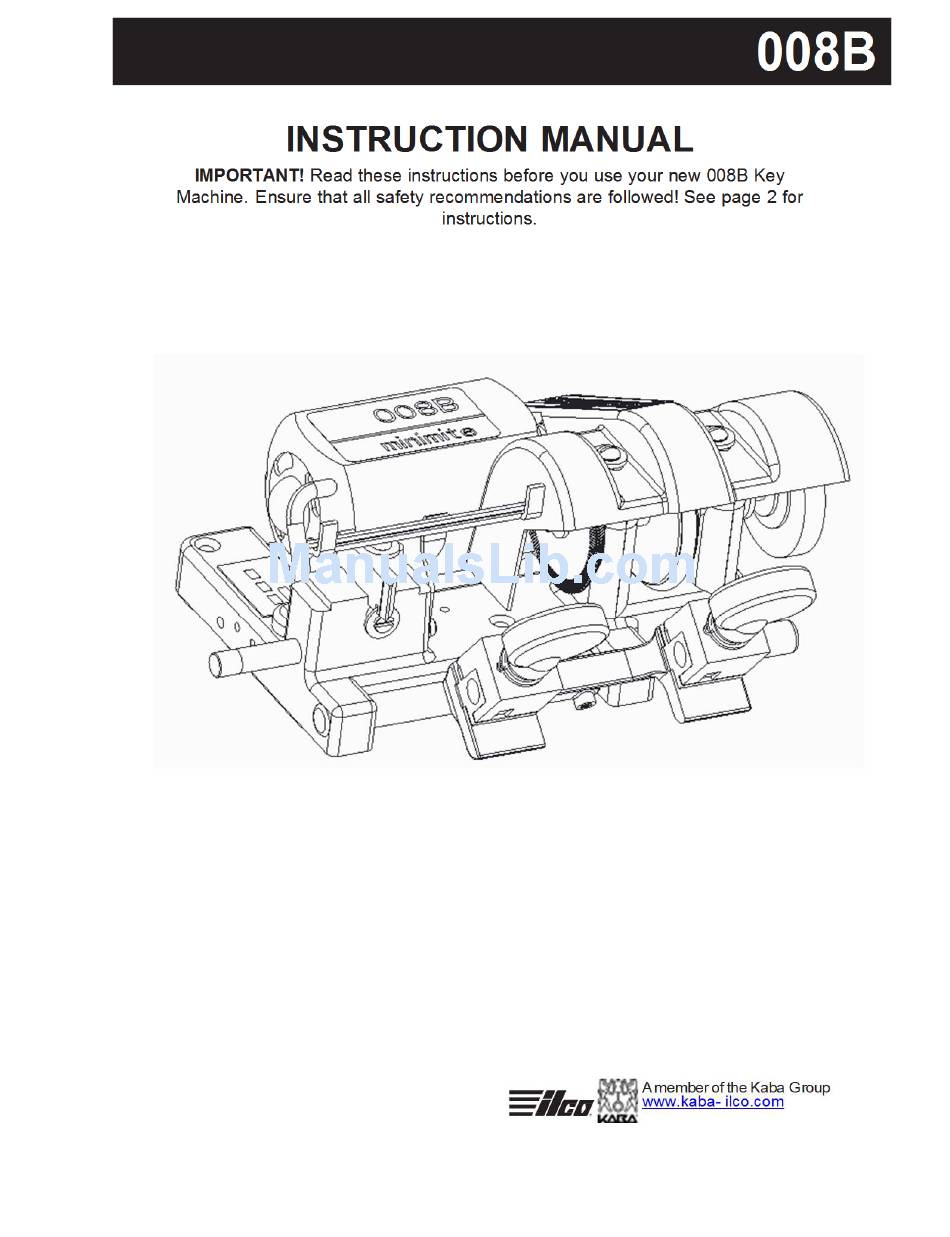

    INSTRUCTION MANUAL IMPORTANT! Read these instructions before you use your new 008B Key Machine. Ensure that all safety recommendations are followed! See page 2 for instructions. A member of the Kaba Group www.kaba- ilco.com...
  • Page 2: Table Of Contents

    When seeking service information about this machine, machine which carries this serial number. It properly refer to Model No. 008B and the part number desired identifies your model and assures you will receive correct (see pages 6 to 8). Note that many parts are not parts, if and when you require replacement parts.
  • Page 3: Warranty

    If the machine is under warranty, It is supplied with a three-prong power plug which contact KABA ILCO at the address printed on the should be used with a properly grounded three-prong cover. (KABA ILCO also offers repair service for out- outlet only.
  • Page 4 GENERAL INFORMATION machine be touched while it is in operation. The Environmental Condition Technical Data To ensure that the best use is made of the 008B key-cutting Power Supply: 230V – 50Hz machine, certain parameters must be borne in mind: damp, 120V –...
  • Page 5: Safety Information

    The reverse side of the economical price! Unpacking Instructions After removing your 008B key from the shipping carton, it that you check the adjustments to make sure they have should be set on a level workbench and wiped free of all not slipped or shifted during transit (see page 12 rust proofing oil.
  • Page 6: Operating Parts (Illustrated)

    Part No Identification 008-1 Carriage 008-3X Vise Jaw Assembly (2) 008-8 Anatomic Knob (2) 008-23 Carriage Shaft 008-38 23RF Cutter 008-49 Cutter Guide (stylus) 008-55 Adjusting Screw 008-56 Key Gauge 008B-86 Safety Hood 008-34 Deburring Brush 008-48 Drive Belt  ...
  • Page 7: Exploded View

    EXPLODED VIEW  ...
  • Page 8 EXPLODED VIEW  ...
  • Page 9: Exploded View Parts List

    008-54 Cutter Guide Binding Screw Proper key cutting techniques Even though your 008B key machine is designed to make 4. NEVER touch the shoulder of a key to the side of the key cutting efficient and accurate, operator skill is cutter guide.
  • Page 10: How To Duplicate Keys

    HOW TO DUPLICATE KEYS Using the two-way vise jaws How and when to use straight wires Your 008B machine is equipped with versatile Super Jaw Occasionally, you may encounter keys with rounded or 1 two-way vise jaws. Their unique clamping surfaces will...
  • Page 11: The Cutting Operation

    THE CUTTING OPERATION Aligning keys in the vise jaws Aligning keys in the vise jaws Keys with shoulders Keys without shoulders WARNING: Do not install or remove keys unless the On keys such as the Ford double-sided key, which do not off/on switch is in the off position.
  • Page 12: Replacements And Adjustments

    REPLACEMENTS AND ADJUSTMENTS General Operating Sequence Replacing the Cutter - UNPLUG MACHINE BEFORE PROCEEDING WARNING: Do not install or remove keys unless the off/on switch is in the off position. The 23RF cutter used on this machine is 2 ⁄ ”...
  • Page 13 Likewise, if the cutter guide is behind the cutter, the cuts 2. Keep the model 008B clean. The cutter should be kept in the key will be too deep (see Fig. 6). free of filings and dirt. A wire brush may be used for...
