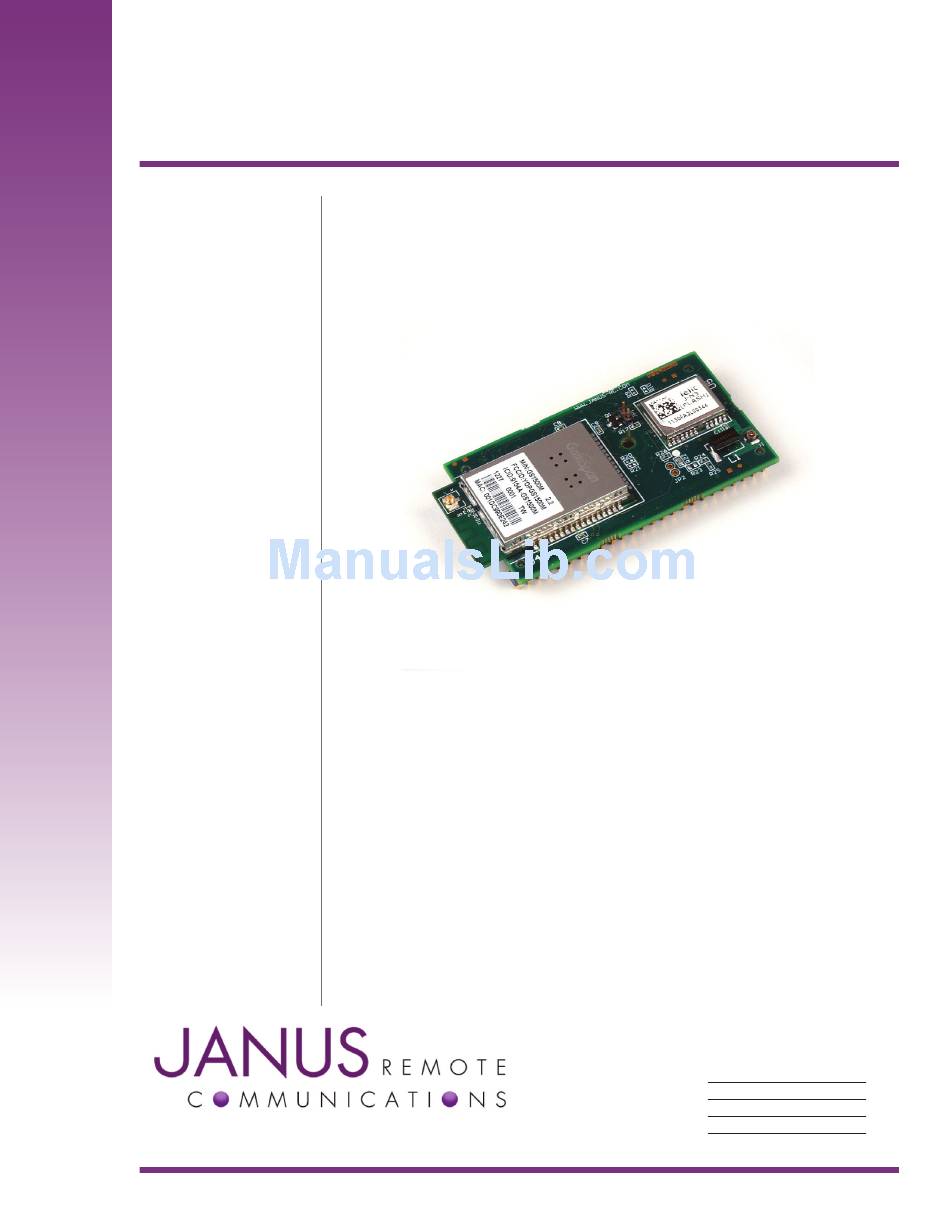

  • Page 1 WiFi1500CF Plug-In Modem User Manual Bulletin JA03-UM-WiFi Revision Date 13 March 2014...
  • Page 2: Table Of Contents

    DISCLAIMER The information contained in this document is the proprietary information of Connor-Winfield Corporation and its affiliates (Janus Remote Communication). The contents are confidential and any disclosure to persons other than the officers, employees, agents or subcontractors of the owner or licensee of this document, without the prior written consent of Connor-Winfield, is strictly prohibited. Connor-Winfield makes every effort to ensure the quality of the information it makes available.
  • Page 3: Scope

    The power supply and I/O signals are compatible with Janus CF Plug-In host products such as the Terminus T2 and 400AP, or the WiFi1500CF can be used in a custom based solution. The WiFi1500 was specifically designed to provide customers with a cost effective product that is easily integrated into new and existing designs.
  • Page 4 ENABLE DISABLE Components not populated on WiFi1500CF v2.0 (without GPS) Figure 1. WiFi1500CF Block Diagram Figure 1 WiFi1500CF Block Diagram WiFi1500CF Plug-In Hardware User Guide JA03-UM-WiFi Page 4 Rev: P00 Date: 03/13/14 Specifications subject to change without notice © Copyright 2014 Janus Remote Communications All Rights Reserved See website for latest revision.
  • Page 5: Plug-In Pin-Out

    4. N/C (no connection). The pin has no function and makes no electrical 9. Only available on WiFi1500CF V1.0 boards (with GPS). Pin is N/C connection. (no connection) on WIFi1500CF V2.0 boards. WiFi1500CF Plug-In Hardware User Guide JA03-UM-WiFi Page 5 Rev: P00 Date: 03/13/14 Specifications subject to change without notice ©...
  • Page 6: Power Connections

    The WiFi1500CF allows for the use of a #4 machine screw to help keep a socketed module in place where environmental variables may cause problems otherwise. If the user wishes to have a stand-off underneath the module to help alleviate possible stress from mounting hardware, below are the Janus part numbers and associated drawings for an available solution.
  • Page 7: Wifi Module

    DCE (Data Communications Equipment) device on the pin-out of the WiFi1500CF. This makes it compatible with host processors (e.g. Janus 400AP, T2) and other microcontroller devices that typically present a DTE UART interface. The default settings for the UART0 interface are 9600 baud, 8 bit characters with no parity bits and one stop bit (8N1).
  • Page 8: Wifi Module Operations

    AT+ANTENNA=<n> Where <n> specifies whether the printed circuit board antenna or the external u.FL antenna is selected: 1 = printed circuit board antenna 2 = u.FL connector WiFi1500CF Plug-In Hardware User Guide JA03-UM-WiFi Page 8 Rev: P00 Date: 03/13/14 Specifications subject to change without notice ©...
  • Page 9: Wi-Fi Module Operations

    At this point a client can connect to the GS1500M module at it’s <IP> address. The GS1500M will request the <USERNAME> and <PASSWORD> to be entered. This gives access to web pages hosted on the module that allow for provisioning of the GS1500M. WiFi1500CF Plug-In Hardware User Guide JA03-UM-WiFi Page 9 Rev: P00...
  • Page 10: Wifi Module Firmware

    Enables SPI interface Web Server Provisioning DEFAULT Wi-Fi Protected Setup (WPS) RF Test Contact Janus about providing the WiFi1500CF with firmware loads other than the default Web Server Provisioning version. WiFi1500CF Plug-In Hardware User Guide JA03-UM-WiFi Page 10 Rev: P00 Date: 03/13/14 Specifications subject to change without notice ©...
  • Page 11: Gps Module (Optional)

    For a full implementation, the JN3 UART TX and RX signals should also appear on the UART0 interface. This can be accomplished by changes to the configuration jumpers. See the Configuration Options section. WiFi1500CF Plug-In Hardware User Guide JA03-UM-WiFi Page 11...
  • Page 12: Gps Module Operation

    1PPS Timing Message In addition to the NMEA messages, the JN3 module supports the SiRF One Socket Protocol (OSP) protocol. Please refer to the Applicable Documents section for further reference material. WiFi1500CF Plug-In Hardware User Guide JA03-UM-WiFi Page 12 Rev: P00...
  • Page 13: Configuration Options

    UART0 TX/RX @VIO OMIT OMIT OMIT OMIT 0 ohm 0 ohm OMIT OMIT 0 ohm GPS w/ PPS on DCD WiFi1500CF Plug-In Hardware User Guide JA03-UM-WiFi Page 13 Rev: P00 Date: 03/13/14 Specifications subject to change without notice © Copyright 2014 Janus Remote Communications All Rights Reserved See website for latest revision.
  • Page 14: Configuration Options

    5. Configuration Options continued Figure 3. Top Components Figure 4. Bottom Components WiFi1500CF Plug-In Hardware User Guide JA03-UM-WiFi Page 14 Rev: P00 Date: 03/13/14 Specifications subject to change without notice © Copyright 2014 Janus Remote Communications All Rights Reserved See website for latest revision.
  • Page 15: Specifications

    Sensitivity: - Acquisition: -147 dBm - Navigation: -160 dBm - Tracking: -163 dBm Dedicated GPS antenna connection with active antenna WiFi1500CF Plug-In Hardware User Guide JA03-UM-WiFi Page 15 Rev: P00 Date: 03/13/14 Specifications subject to change without notice © Copyright 2014 Janus Remote Communications All Rights Reserved See website for latest revision.
  • Page 16: Ordering Information

    One Socket Protocol Interface Control Document Including SiRF Binary Protocol Reference Manual Revision History Revision Revision Date Note 03/13/2014 Preliminary WiFi1500CF Plug-In User Manual Janus Remote Communications Europe Division of The Connor-Winfield Corporation Bay 143 Shannon Industrial Estate 2111 Comprehensive Drive •...
