CNC4PC C32 User Manual

Dual port multifunction cnc board
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

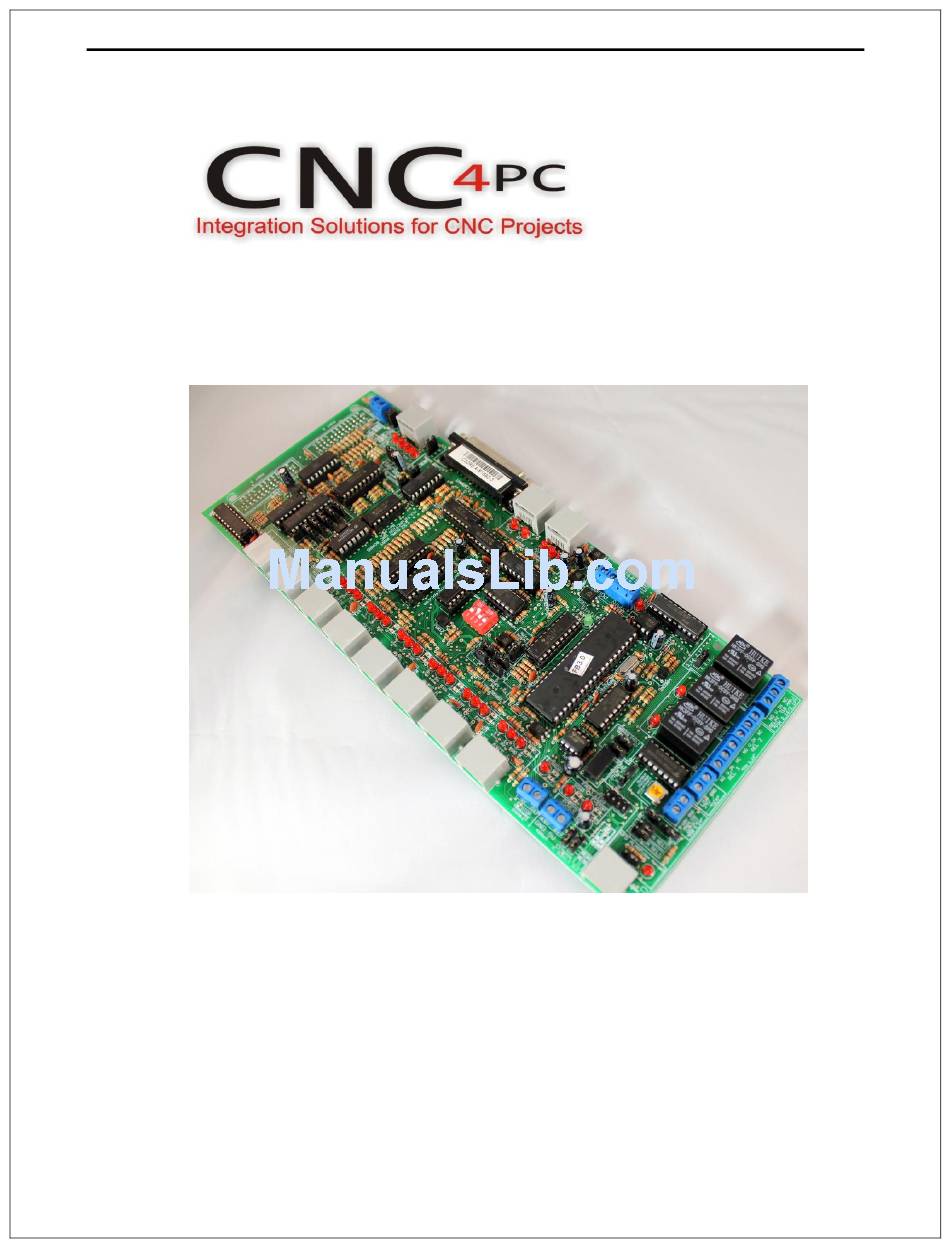

USER'S
MANUAL
C32- DUAL PORT MULTIFUNCTION CNC
BOARD Rev. 5
JULY, 2013
USER'S MANUAL
___________________________________________________________________________
User's Manual
Page i

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the C32 and is the answer not in the manual?

Questions and answers

Summary of Contents for CNC4PC C32

  • Page 1 USER’S MANUAL C32- DUAL PORT MULTIFUNCTION CNC BOARD Rev. 5 JULY, 2013 USER'S MANUAL ___________________________________________________________________________ User’s Manual Page i...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS Page # Contents FEATURES ........................1 SPECIFICATIONS ......................2 BOARD DESCRIPTION ....................3 POWER TERMINALS AND CONFIGURATION JUMPERS ..........3 Power terminals and configuration Jumpers for inputs ......... 3 Power terminals and Jumper for Driver monitor circuit ......... 4 Controller selection jumpers (IEEE1284/SS) ............

  • Page 3: Features

    (Pin 2_16 or Pin 2_17, jumper-selectable).  Microcontroller based SCHP.  RJ45 connectors for all I/Os.  Easy Connections with CNC4PC relay boards and speed control boards.  Connects 4 and 6 axis pendants (MPG2, MPG12, and MPG8)  Optoisolated inputs.

  • Page 4: Specifications

    C32 (Rev. 5) User Manual  Buffered outputs.  Status LEDs on all inputs and output connections.  Works directly with popular CNC hardware and software.  34 inputs and outputs on 2 ports. PINS PORT1 PORT2 TOTAL INPUT OUTPUT...

  • Page 5: Board Description

    C32 (Rev. 5) User Manual BOARD DESCRIPTION POWER TERMINALS AND CONFIGURATION JUMPERS Before connecting the power supplies, follow steps below. Power terminals and configuration Jumpers for inputs These opto-isolated inputs require an external 5VDC to be powered. It is recommended when isolation between PC and power of inputs is required (set jumpers in REQUIRED position).

  • Page 6: Power Terminals And Jumper For Driver Monitor Circuit

    C32 (Rev. 5) User Manual If isolation is not required, don't connect any external power supply to these terminals and set jumpers in "NOT REQUIRED" position. Power terminals and Jumper for Driver monitor circuit Connects an external (5V) power supply, when using drivers with error or alarm signal common to its power GND.

  • Page 7: Driver Fault Jumpers

    2-3 position (see the respective C34 User manual). If this function is enabled and any C34 is disconnected, the C32 will go to standby mode and a driver error will be shown.

  • Page 8: Configuration Dipswitch

    C32 (Rev. 5) User Manual CONFIGURATION DIPSWITCH DIPSWITCH allows activating or deactivating the SCHP detection function, and selecting the driver to use and delays an enable signal for external devices. 5.1 Position 1 The enable output (Pin 17-Port 2) will be activated when the driver enable process starts.
  • Page 9 C32 (Rev. 5) User Manual Onboard DIPSWITCH allows activating or deactivating the SCHP detection function. SWITCH 2 ON: Activate the SCHP detection function. SWITCH 2 OFF: Deactivate the SCHP detection function. When the Safety Charge Pump function is activated, 5V are present in the E-Stop Note: terminal and a valid SCHP signal is present, Port 2 Pin 17 will go high.

  • Page 10: Position 3 And 4

    Operation Mode 1 (G320/DG4S) When the system starts, the C32 error/reset pins go to a low state (0V), making sure the driver remains disabled. When SCHP and E-Stop function are checked and validated and there is no fault signal coming from any driver, the system sends a high (5V) to the driver’s error/reset pins for about 5 seconds to enable the drivers.

  • Page 11: Led Indicator

    C32 (Rev. 5) User Manual Operation Mode 4 (Viper, Teco and Delta) When the system starts, the C32 enable pins go to a low state (0V). When SCHP and E-Stop function are checked and validated and there is no fault signal coming from any driver, the system sends a high (5V) to the driver Fault output pin, enabling the drivers.

  • Page 12: Operation Mode Selection Jumper

    C32 (Rev. 5) User Manual 7.1 Operation Mode Selection Jumper This jumper allows selecting the way how the relays are activated when a PWM signal and REV signal are present in the pins 1_14 and 1_16. In US mode one relay is used to start on CW and the other one to start on CCW. In international mode one relay is used for on/off, and the other one to indicate the CW or CCW rotation of the spindle motor.
  • Page 13 C32 (Rev. 5) User Manual RJ45 for VFD Connection This RJ45 port let you make an easy connection between this board and the VFD. RJ45 for VFD RJ45 Function Analog GND Analog Output VFD Alarm (NEW) REL 1 Normally Open Contact...
  • Page 14 C32 (Rev. 5) User Manual VFD Connection and configuration jumpers VFD Alarm jumpers Many VFDs have general purpose relay that can be configured to generate an alarm (Use its N.C. contacts). This board takes advantage of this feature to monitor the VFD status.
  • Page 15 C32 (Rev. 5) User Manual When the used alarm signal is a positive voltage referenced to “analog GND”, set jumper as shown below If the VFD alarm monitoring function is not performed, set jumper as shown below ___________________________________________________________________________ User’s Manual...
  • Page 16 C32 (Rev. 5) User Manual For additional wiring diagrams, check the bottom of this product’s page: http://www.cnc4pc.com/Store/osc/product_info.php?products_id=255 Configuring the Control Software: For configuring Mach X follow these steps: Go to Config / Ports&Pins / Motor Outputs. Enable the spindle and select the port and pins you wired for step and direction.
  • Page 17 C32 (Rev. 5) User Manual Under Pulley Ratios set the pulley ratios of the machine. Spindle Setup screenshot Go to Config / Motor Tuning / Spindle. Set the velocity and acceleration to the max. Motor Tuning and Setup screenshot After configuring the Mach, these steps should be followed.
  • Page 18 C32 (Rev. 5) User Manual Replacing a Potentiometer: This circuit can be used to replace a potentiometer of a DC motor speed control circuits. This speed controller circuits are very commonly used by SIEG, KB Electronics, and many other Asian machines. Before explaining how to do it, please first keep in mind that it can be done if the voltage that goes though the pot is +12vdc or less.

  • Page 19: Pinout

    C32 (Rev. 5) User Manual PINOUT Fig. 9RJ45 Distribution RJ45_7 RJ45_8 RJ45_9 RJ45_10 RJ45_11 RJ45 PIN P.P. PIN RJ45 PIN P.P. PIN RJ45 PIN P.P. PIN RJ45 PIN P.P. PIN RJ45 PIN P.P. PIN GND_EXT GND_EXT GND_EXT 1_13 2_17 2_15...

  • Page 20: Wiring Sample

    M_N: Parallel port or Smooth Stepper pin, where M is the port number and N is the pin number. * When connecting optoisolated boards, a connection between the ground of the C32 and the board must be used. This is the case for the C15 and C19.

  • Page 21: Connecting A Pendant

    C32 (Rev. 5) User Manual Note: This wiring is just to illustrate a sample product application. Specific wiring may vary from system to system. It is the user’s responsibility to implement it correctly. For More Information http://www.cnc4pc.com/Store/osc/product_info.php?products_id=255 10.0 CONNECTING A PENDANT Set the pendant enable jumper in ENABLE position if a pendant is connected to the DB25 connector.

  • Page 22: Connecting A C48

    RJ45_8 provides an easy way to wire an External Probe and an external (Secondary) E-Stop. Image below shows a wiring sample for this connection Note: The primary E-stop can be connected to C32 E-Stop terminals or to the C48 E-Stop input terminals.
  • Page 23 C32 (Rev. 5) User Manual Wiring diagram to connect switches with 24VDC power supply While this board supports only TTL +5VDC signals, different kind of sensors and switches using different voltages can be connected using the diagrams that follow: Note: The below wiring diagrams are an example, any input can be used for the connections.
  • Page 24 C32 (Rev. 5) User Manual For a 24V or 12V sensor, the recommended value for the external resistor R1 is 4.7K Ohm. Wiring diagram to connect in parallel NPN open collector proximity sensors Wiring diagram to connect NPN proximity sensors with internal pull up resistor ___________________________________________________________________________ User’s Manual...
  • Page 25 C32 (Rev. 5) User Manual Wiring diagram to connect PNP open collector proximity sensors Connecting PNP open collector proximity sensor with the C32 Rev.3 Board R Value (12V) R Value (24V) 470Ω 1KΩ C32 Rev. 3 Table 15 R value to Connect PNP open collector proximity sensor with the C33.

  • Page 26: Dimensions

    C32 (Rev. 5) User Manual 12.0 DIMENSIONS All dimensions are in Millimeters. Disclaimer: Use caution. CNC machines can be dangerous machines. Neither DUNCAN USA, LLC nor Arturo Duncan are liable for any accidents resulting from the improper use of these devices.
