Specifications
Power
Operating Temperature
Operating Humidity
Altitude
Dimensions
Weight

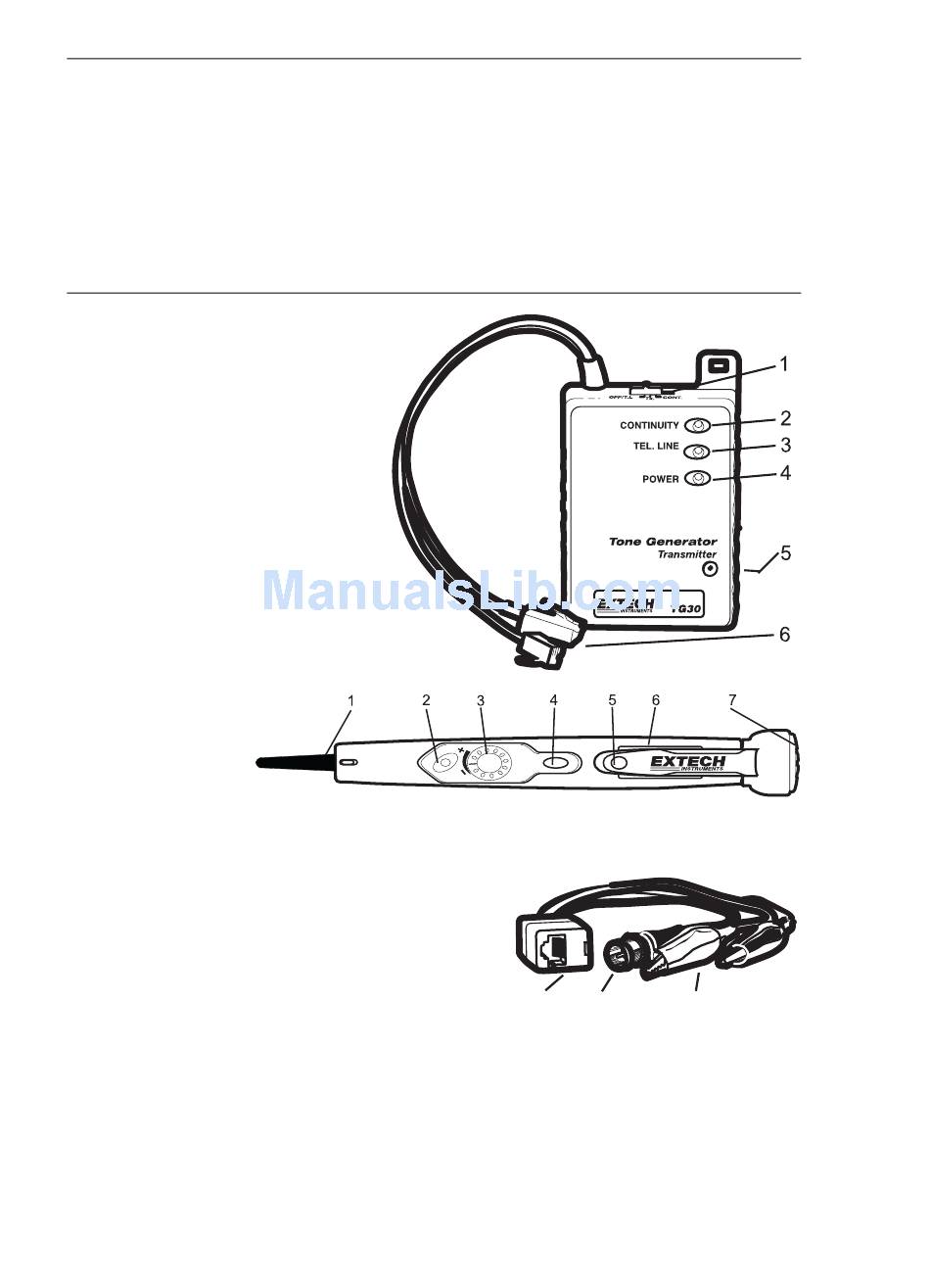

Meter Description
Transmitter
1.
Function switch (OFF/T.L., Tx,
CONT)
2.
Continuity led
3.
Telephone Line led
4.
Power led
5.
Battery compartment (rear)
6.
Modular connectors
Probe
1.
Signal receiver
2.
Power LED
3.
Sensitivity adjustment
4.
Power button
5.
Pocket clip
6.
Battery compartment
7.
Speaker
Adaptor
1.
RJ11 socket (connect to transmitter modular
connector)
2.
CATV Type F connector
3.
Alligator clips
Transmitter; 9V NEDA 1604/1604AL
Probe; (4) LR44, 157, AG13, A76 or equivalent
o
14 to 122
F (-100 to 50
<80% RH
2000 meters
Probe:5.8x1.1x1.1(147x28x28mm),
Transmitter:2.6x4.1x0.9"(67x103x23mm)
Probe 1.1oz(30g); Transmitter 4.2oz(120g)
