ATTENTION
TO FULLY BENEFIT FROM
THIS FIVE TUBE CHANGER
CONLUX RECOMMENDS:
COMPLETELY FILL
ALL FIVE TUBES OR AT LEAST
FILL THE PRIMARY TUBES!
A
B
C
D
E
Indicates primary tubes
25¢
5¢ 25¢ 10¢ 25¢
US-1 CASSETTE (3Q,1D,1N)
Part Number 278002
A
B
C
D
E
$1
5¢ 25¢ 10¢ 25¢
US-4 CASSETTE (1$,2Q,1D,1N)
Part Number 278003
WHEN CALLING FOR SERVICE, PLEASE PROVIDE THE FOLLOWING INFORMATION:
MODEL NUMBER: _______________________________
SERIAL NUMBER: _______________________________
VENDNET
(A WITTERN GROUP COMPANY)
™
165 NORTH 10TH STREET
WAUKEE, IA 50263
Tel. 1-888-VENDNET(836-3638)
8
A
B
C
D
E
10¢
5¢ 25¢ 10¢ 5¢
US-2 CASSETTE (1Q,2D,2N)
Part Number 278023
A
B
C
D
E
10¢ 10¢ 5¢ 10¢ 5¢
US-5 CASSETTE (3D,2N)
Part Number 278007
CCM5, CCM5G Series
Installation GUIDE
Handling Instructions
The discriminator is connected
In case the discriminator is to
to the coin changer via a
be disassembled, be sure to
dedicated connector and
turn off the power of the coin
should not be disassembled
changer before disassembling.
except for special cases such
as cleaning.
Identification of Parts and Locations
Discriminator Latch
Discriminator
This is an electronic discriminator
which discriminates US and
Canadian Coins
Drain Spout
Liquid poured in by vandals or by
accident is discharged here.
Tube Latch
Push down to remove the cassette
tube assembly
© 2006 CONLUX
Printed in the USA

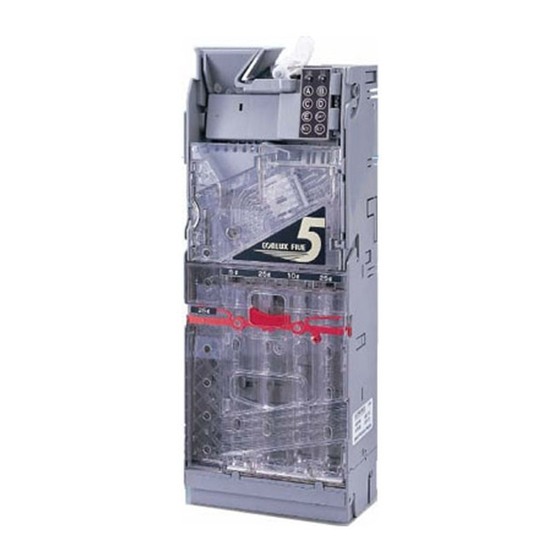

Multi Drop Bus 5 Tube Coin Changer
Do not carry the coin changer
Store the coin changer in a
by the harness.
clean, dry place.
Diagnostic L.E.D.
Discriminator
Coin Changer
Inventory Switch
Switches are used to remove
coins from the change tubes.
Currency Selection Switch
Switches are used to remove
coins from the change tubes.
Switch Selectable
U.S. and/or Canadian Currency
Cassette Tube Assembly
Bottom Base
Part # 5W1110410
Rev5 12/06
