Summary of Contents for Engl mfx

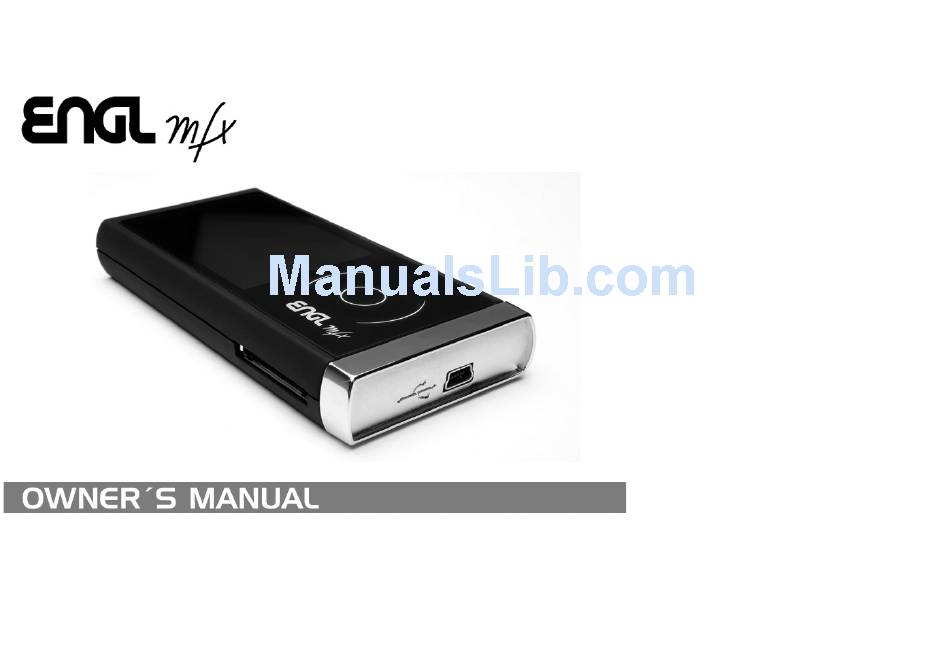

- Page 1 Portable mp3 Player ENGL-MFX - This device has a serial number located on the rear panel. Please record it and retain it for your records. Serial number:...
-
Page 2: Table Of Contents
Display........................ 13 Audio performance ..................... 24 Wheel ......................... 13 Audio file compatibility ..................24 Rear panel ....................... 14 Physical........................25 Built-in stereo microphone ..............14 Computer requirements ................... 25 Bottom panel ......................15 Windows ......................25 Engl mfx page 2... - Page 3 Macintosh ......................25 Recomended USB host controller ..............26 Supported OS ......................26 Accessories available for purchase .............. 26 8-FCC Compliance Statement ................27 Engl mfx page 3...
-
Page 4: 1-Introduction
Supplied accessories 1-Introduction Soft case SD card (in unit; contains copy of manual) Thank you very much for purchasing the ENGL MFX Portable Player. USB cable Please read this owner’s manual carefully in order to maximize your Quick Start Guide use of all the unit’s features. -
Page 5: Recycling The Rechargeable Battery
This device uses a lithium ion battery. Please do not throw away the Font use conventions battery when it is no longer necessary. • Controls, keys and other parts on the ENGL-MFX are written like If you have any questions, please contact us (see the last page of this this: MENU. -
Page 6: 2-Preparation
4 GB–32 GB SD HC cards with this unit. Please see the ENGL web site (www.engl-amps.com) for information about cards that have been tested with the ENGL-MFX. NOTE When new, this unit comes with a 1GB SD card inserted. This card can be used for recording and playback as is. -
Page 7: Removing The Sd Card
Press the inserted SD card in gently and it will disengage from the unit so that you can pull it out completely. CAUTION Do not remove the SD card during recording or playback, or when the unit is connected to the computer by USB. Engl mfx page 7... -
Page 8: Powering The Unit
Powering the unit Charging with an AC adapter The ENGL-MFX can be operated using an AC adapter (E 1041). Use the USB port on the right side panel, plug in the included USB Additional AC adapters are available for purchase separately. You can... -
Page 9: Turning The Power On And Off
Turning the power on and off To turn the power ON, press the POWER key on the top panel. After booting “ENGL-MFX” appears on the display. To turn the power OFF, press and the POWER key, the display turns black. -
Page 10: 3-Part Names And Functions
3-Part Names and Functions Top panel POWER key Press this key to turn the unit’s power ON and OFF. SD card slot Insert an SD card into this slot. (See “About SD cards” on page 7.) Engl mfx page 10... -
Page 11: Right Side Panel
3-Part Names and Functions Right side panel USB port Use the included USB cable to connect with a computer USB port. (See “Connecting with a computer” on page 36.). Or connect an ENGL AC adapter to this jack. Engl mfx page 11... -
Page 12: Left Side Panel
3-Part Names and Functions Left side panel GUITAR IN jack Use this jack to connect a guitar. HEADPHONE OUT jack Use this jack to connect with a headphone. Engl mfx page 12... -
Page 13: Front Panel
The display consists of a capacitive touch screen. In addition to the home screen, the display shows all other screens, various setting screens, controls and other operation information by tapping icons or the surface and moving the fingers on the screen. Engl mfx page 13... -
Page 14: Rear Panel
To use this stereo electret condenser microphone as the input source, select “INT/ MIC” on the input setting screen. If you connect an external microphone to the MIC IN jack on the left side, the built-in microphone becomes inactive. Engl mfx page 14... -
Page 15: Bottom Panel
Plug in the adapter cable to be able to use two lines in and two lines out. Dock-Connector The dock connectors have different colours. Use the following dock connectors for the following functions: BLUE -> external –out (L/R) WHITE -> external-in (L/R) -> internal-out (L/R) BLACK -> internal-in (L/R) Engl mfx page 15... -
Page 16: 4-Screen Overview
The status bar on the top of the screen is always visible and performs the following tasks: Back Button Tap the back button to return to the previous level. To return to the home screen, tap several times until you arrive at the main screen. Engl mfx page 16... -
Page 17: Level Meter
A big battery symbol appears, should the mfx have not enough battery power when starting. Then you need to charge the battery as a start. See chapter 2 - Preparation – to learn how to charge the battery. -
Page 18: Main Menu
Scroll up and down to view the full main menu. Tap to choose one of the menu items: Info / Player / Trainer / Amps / Effects / Tuner / Replicator / Time Pitch / Preset / Remote / System Engl mfx page 18... - Page 19 4-Screen Overview The selected file turns blue. Choose the track you want to play. Confirm with OK. To return to the player menu without choosing a file, press Cancel. Engl mfx page 19...
-
Page 20: 5-Making Connections
USB ports of the ENGL-MFX and the computer. When connected, “USB – do you want to connect – yes or no” appears on the ENGL-MFX screen. Choose Yes to connect to your computer. The device appears on the computer screen as an external drive named “ENGL-MFX.”... -
Page 21: 6-Playback
The choose file menu appears. When the home screen is displayed, tap PLAYER or use the touch wheel to scroll to PLAYER and tap the inner circle of the wheel. Thus the player menu appears. Engl mfx page 21... -
Page 22: Starting And Stopping Playback
When stopped at the beginning of a track, press rewind skip to the beginning of the previous track, or press forward skip to the beginning of the next track. Engl mfx page 22... -
Page 23: Play A Track
Here you can adjust the volume of the amplifier, the played track and both mixed together. This happens by using the sliders. Tap when you feel ok with the volume. The screen returns to the player menu. Loop/repeat setting status Tap the loop icon to repeat a track Engl mfx page 23... -
Page 24: 7-Specifications
SD HC card (4–32 GB) Jack 3.5-mm phone (stereo) Nominal line output -14 dBV File system FAT16/32 Maximum line output +2 dBV Maximum headphones output 15 mW + 15 mW (with 32 Ω impedance headphones) Engl mfx page 24... -
Page 25: Physical
Power PC, iMac, G3, G4 266 MHz or faster 1.97 (W) x 0,63 (H) x 4 (L) (inches) 64 MB or more memory Weight 100 g USB port (USB 2.0 recommended, 500 mA bus power required) Engl mfx page 25... -
Page 26: Recomended Usb Host Controller
7-Specifications Recomended USB host controller Intel chipset Supported OS Windows 2000, XP and Vista Mac OS X 10.2 or later Accessories available for purchase AC adapter (E1041) Engl mfx page 26... -
Page 27: 8-Fcc Compliance Statement
Increase the separation between the equipment and receiver Connect the equipment into an outlet on a circuit different from that to which the receiver is connected Consult the dealer or an experienced radio/TV technician for help. Engl mfx page 27... - Page 28 ENGL-MFX ENGL Gerätebau GmbH http://www.engl-amps.com Engl mfx page 28...
